Applications

PET BOTTLE, GLASS BOTTLE, TIN CAN

Which is your product's container?

Technical Parameters

Machine Detail

Company Profile

Zoe Pack (suzhou) CO., Ltd.

We are a professional water and beverage machinery manufacture. ZOE PACK has its own special advantages in the research, design and manufacture and offers technical support to customers. We provide perfect after-sales service.

Our Beverage Machinery includes carbonated soft drink production lines; none-areated beverage bottled filling production lines and juice / tea beverage / wine bottled / barreled filling production lines. You are welcome to cooperate with us.

This series of bottle water production lines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with optional capacity from is 2000BPH based on 200ml to 2000ml.

Complete Line

From the beginning of Water treatment system to the end of bottle packing. One-stop integrated operation reduce the water wastage, shorten the operation time, and increase more economy benefit. With less material and workers’ touch time, sanitary conditions will get better. This series of bottled water production lines are mainly used for the non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with capacity 2000-3000BPH based on 200ml to 2000ml. This small and start up water production line is composed with blowing machine, water filling machine, water purification station, labeling machine and packing machine, all the machines you ever need for starting your new water business.

Except small water bottling line, we also provide:

Gallon water filling, Beer filling, Juice filling, Can filling

Production Line Details

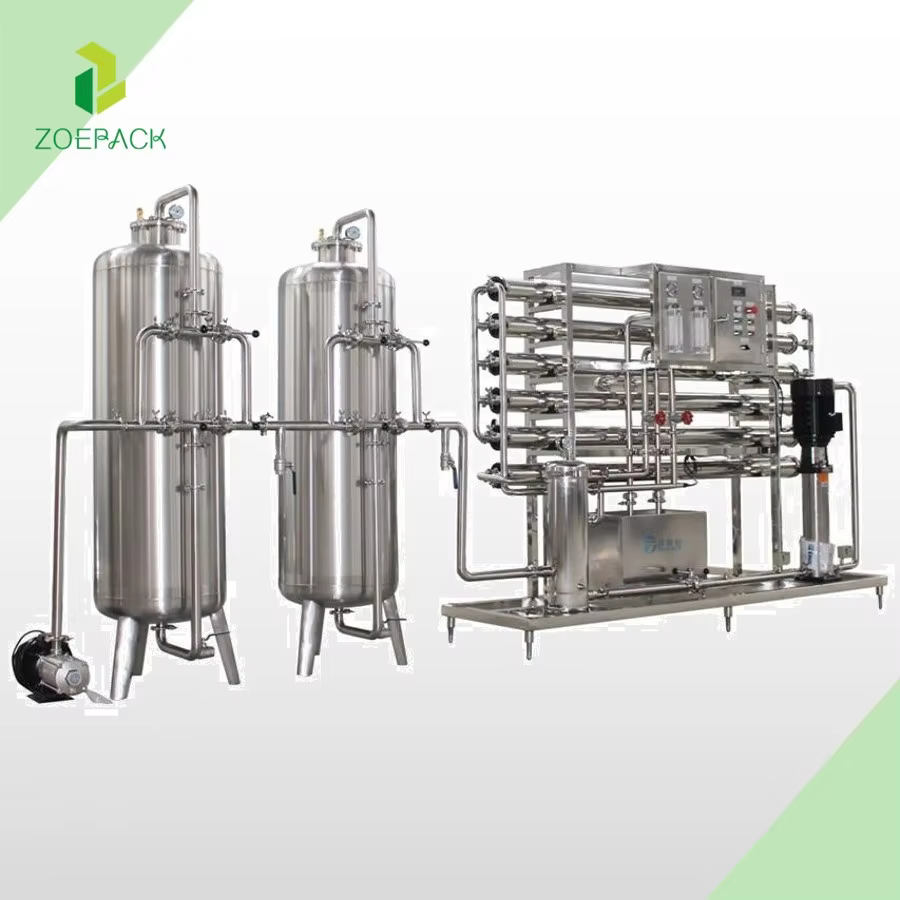

Water Treatment System

The raw water is pumped into the raw water tank through a water pump, and the large particles and impurities in the water are filtered out through preliminary filtration (silica sand filter, activated carbon filter and precision filter) , and then use the RO system or Hollow system to remove microorganisms in the water. Finally, The UV sterilizer will sterilize the water and store it in a pure water tank.

Bottle Blowing Machine

This PET water bottle blow molding machine is specially designed to produce water bottle, PET bottle with high heat resistance for
hot filing package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has
slight shrinkage during hot filling.

Filling Machine

Fully automatic 3 in 1 machine integrates Rinsing-filling-capping process, latest technology brings the quite high efficiency, Whole Material in SS304 maintains high-grade quality; Upgraded system with easier operation; Suitable for the filling production from 100ml to 2000ml bottles, capacity in small quantity and large quantity can be optional as customer characteristics.

Advanced touch screen and PLC control system makes man-machine communication true. Use guiding roulette instead of simple rotary table to roll out the finished bottles, ensuring the stability and preventing the bottles from falling down.

Labeling Machine

Adopt different customer’s requirement, with different types of labeling machine, ensure the precision of labeling method and placement. Advanced technology for the operation system manufactured by worldwide famous supplier to make sure the delicate operation.

Description:

1. Sticker labeling machine

2. Shrink sleeve labeling machine

3. OPP labeling machine

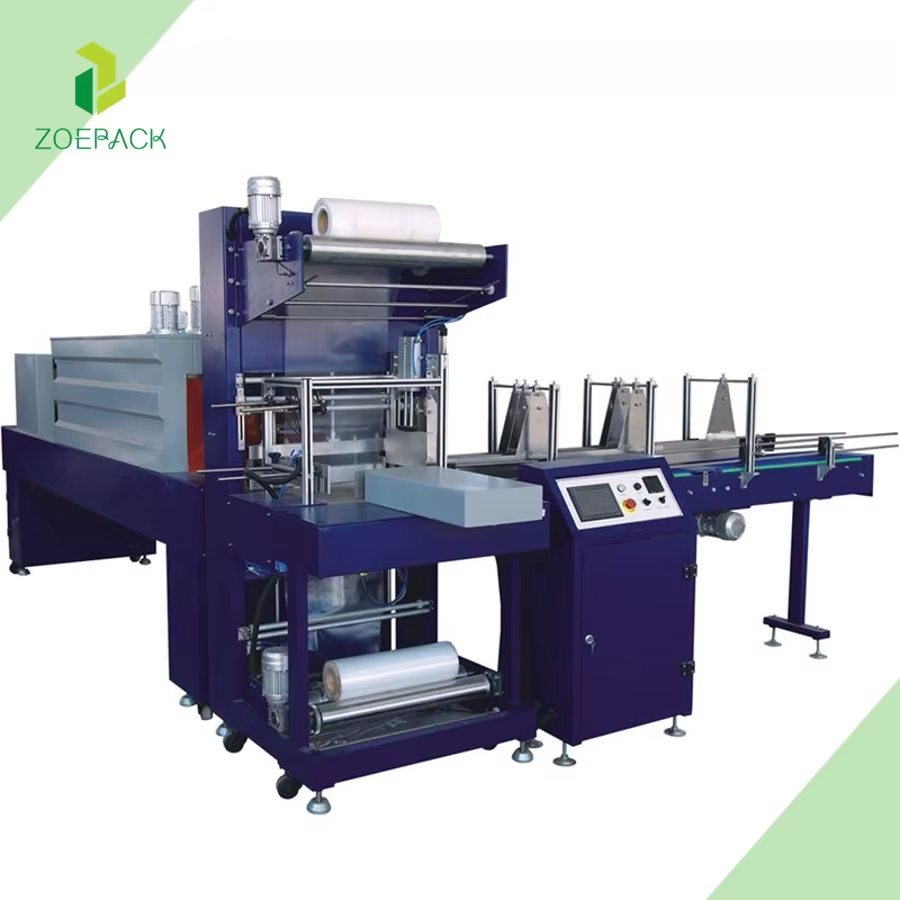

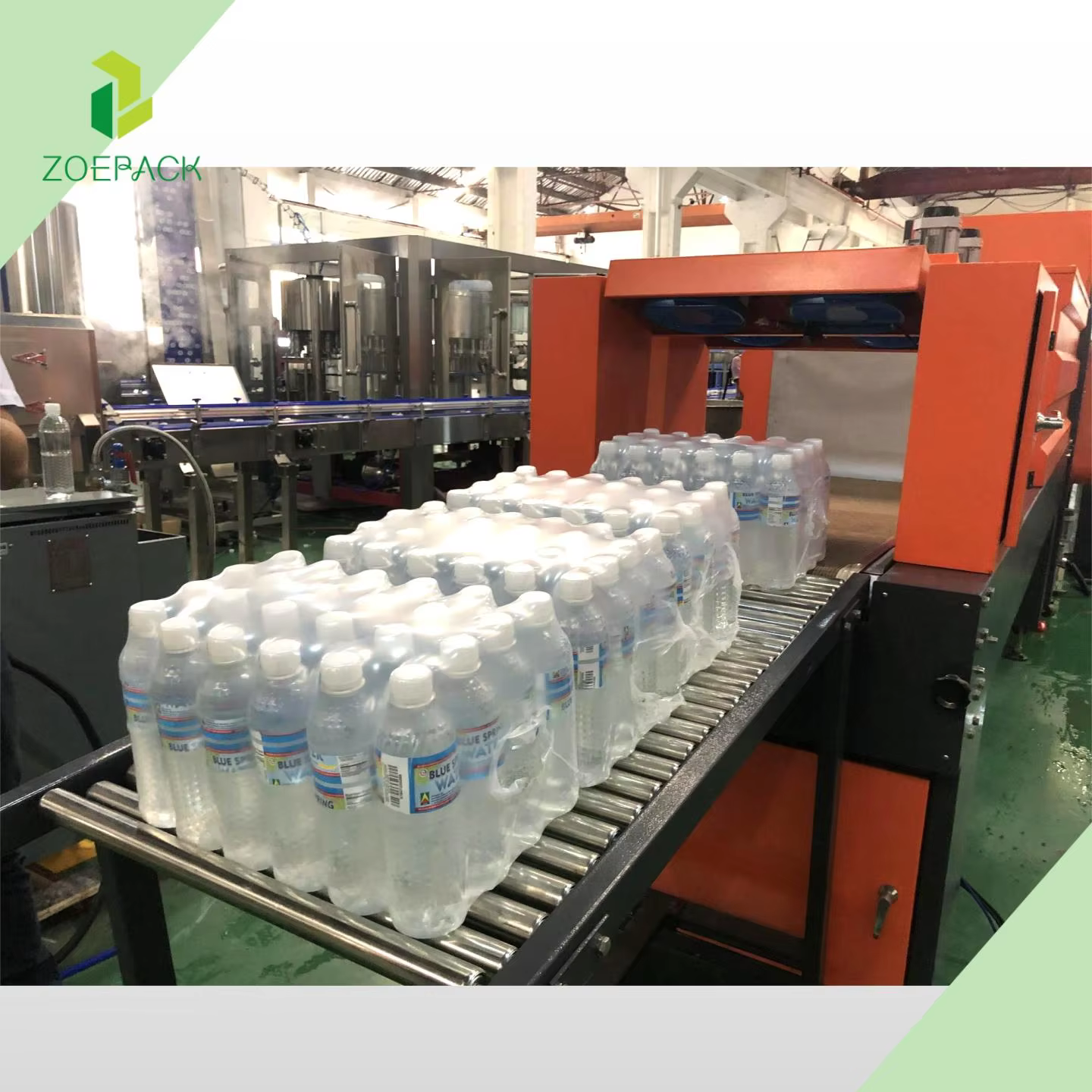

Packing Machine

Proximity switch control film length. Touch screen, PLC system greatly increase facility movement reliability. Frequency converter speed adjust, two segment convey device. Bottle pushing, thermos sealing and cutting whole movement adopt to pneumatic fracture. Group finished bottle water by film, like: 24=4*6, 12=3*4 6=2*3. Case packing machine is also available.

Air Conveyor

Air conveyor is a bridge between blowing machine and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. The bottle is transferred to 3 in 1 machine through wind.

Flat Conveyor

The structure of the conveyor is designed by modular. The alternativeness of the parts are flexible, the structure is intensity, little noise and it is convenient to fix and maintenance it. It can be grouped according to the different capacity and bottle shape flexibly.

Customer Photos

FAQ

ZOEPACK

Carbonated Beverage Drink machine that is making a perfect solution for many who need to produce their particular non-alcoholic drink water in the home or perhaps in an organization is small. This PET bottle production is filling built to produce delicious and top-quality carbonated beverages will definitely satisfy your thirst.

An easy task to operate and it is sold because of the features which are necessary obtain started immediately. This machine can fill and cap PET containers quickly, enabling you to make large volumes of non-alcoholic drink water right away featuring its system is efficient filling.

One of many better reasons for this machine is making its quality high. Created from sturdy and materials are reliable this machine wound up being produced to final and will withstand usage is time this hefty.

Is sold with a person program is user-friendly enabling you to control and adjust the carbonation container and level size dependent on your requirements are own. This machine is versatile sufficient to meet your preferences whether you are soda is creating for personal usage for commercial purposes.

Beneficial to people who wind up buying hassle-free way is economical produce high-quality carbonated beverages using its completely manufacturing line is automatic. The system works flawlessly, making sure every container is perfectly carbonated and sealed from filling to capping.

Not difficult to wash and keep maintaining, ensuring it over and over once again without having the pressing problems that you can make use of. Featuring its mobility is compact and easy you are going to make the most of it in virtually any areas, rendering it perfect for little cafes, restaurants, and also domiciles.

Why wait? Order your ZOEPACK Carbonated Beverage Drink machine is making commence producing great-tasting and soda is refreshing in very little time.
