ZOE PACK

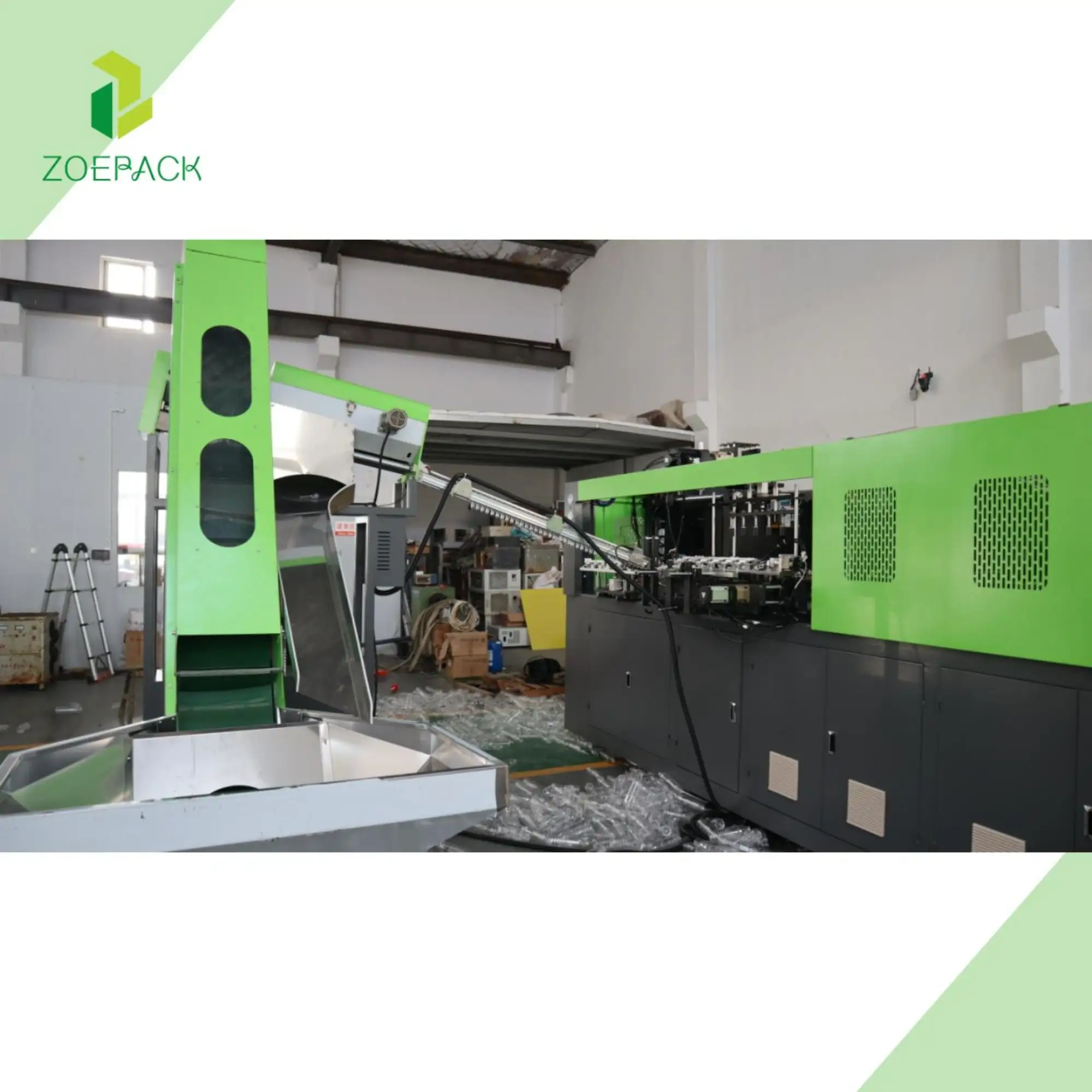

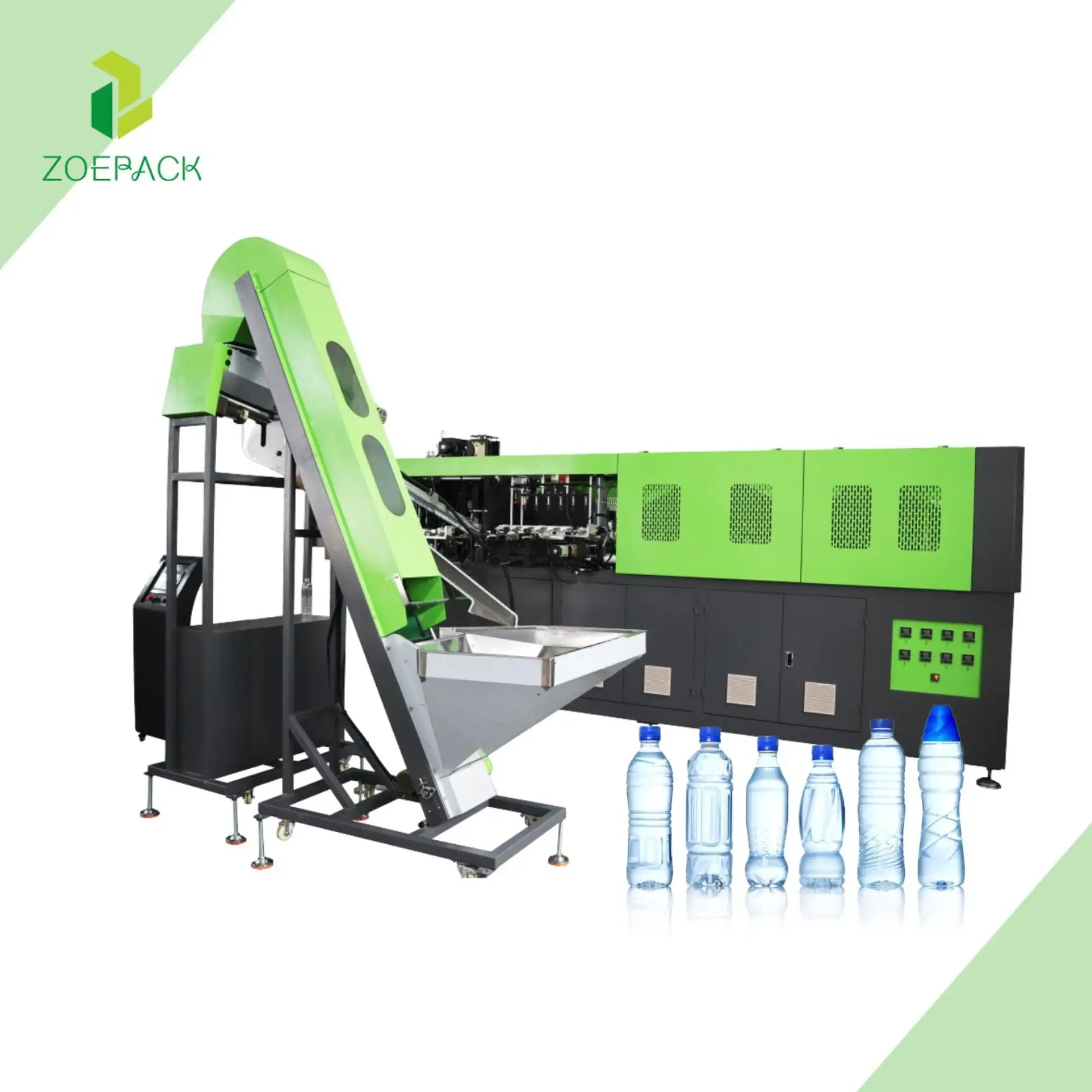

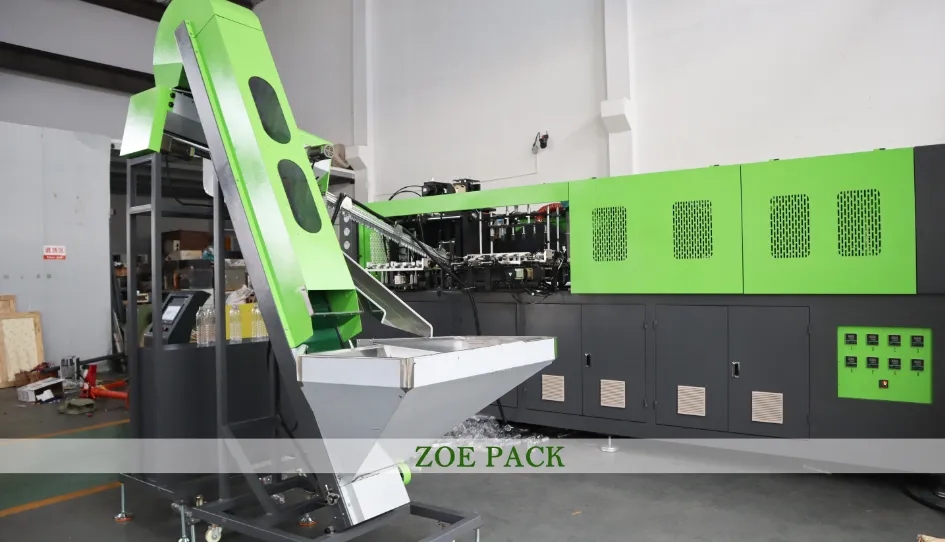

Automatic PET Bottle Blow Molding Machine

Cosmetic / juice /edible oil / medicine / water / CSD

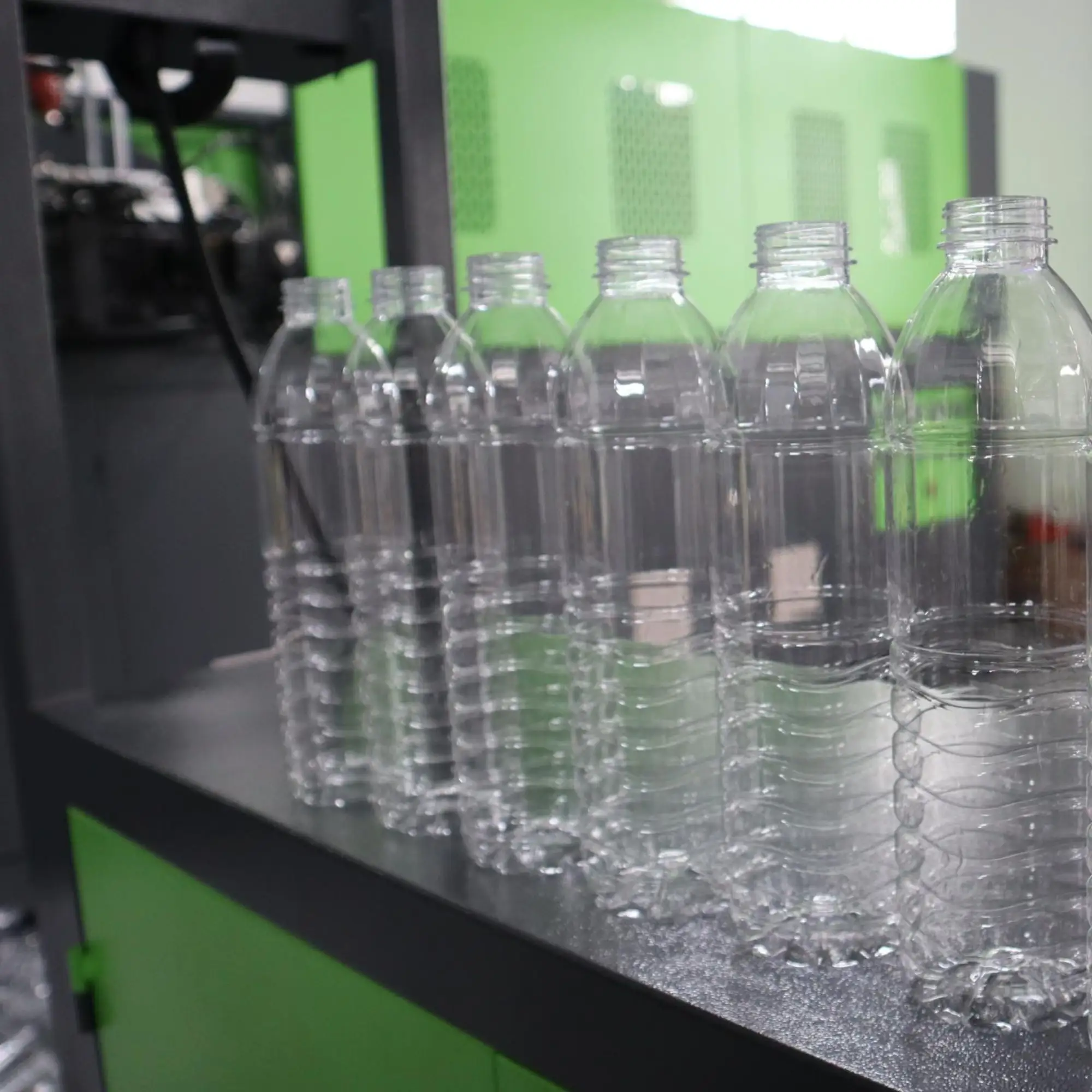

This PET water bottle blow molding machine is specially designed to produce water bottle, PET bottle with high heat resistance for hot filing package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has slight shrinkage during hot filling.

In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stableperformance. With high strength, good transparency and low production costs, abundant materiaresource, PET Blow Moulding Machine plays a big role in hot filling package market.

Machine Advantages

PET Bottle Blowing Machine Description

1.Stable performance with Advanced PLC.

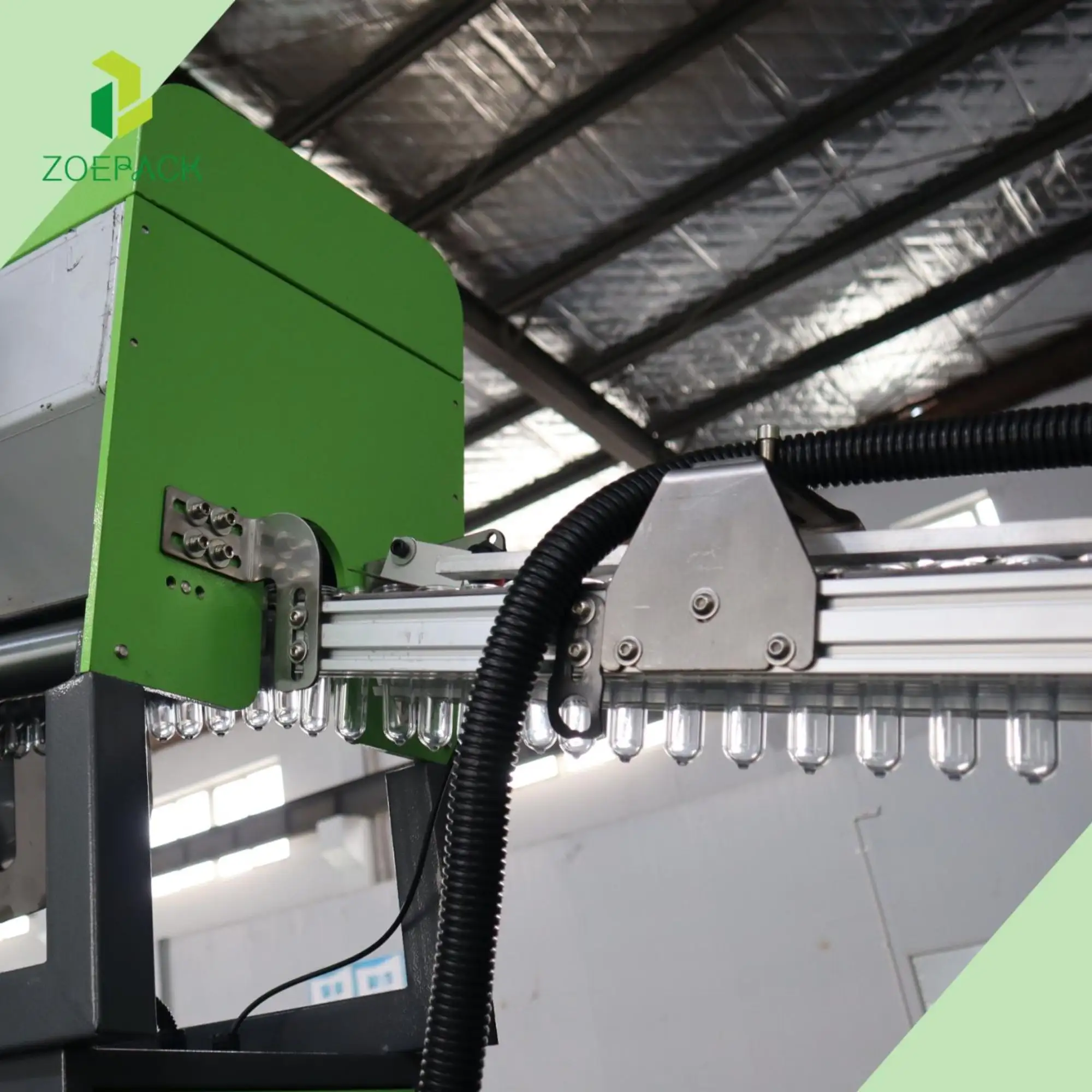

2.Conveying performs automatically with conveyor.

3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and re-volute in therails simultaneously in the infrared preheated.

4.High adjust ability to enable the preheated to preheat performs in shapes by adjusting the light tube and the length ofthe reflecting board in the preheating area,and eternal temperature in the preheated with an automatic thermostatic apparatus.

5.0ptimization of the ovensuction and convulsion devices,cool the preform surface.Waterwayair duct directly through thedevice.double protect the screw neck.

6.Each mechanical action has safety self locking device,when a process fails, the program will automatically switch to thesecurity status.

7.Servo device for the material transfer and bottle perform distribution, fast reliable,and high stability.

8.Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clampopen are adjustable.

9.Safereliable,and unique design of the position of valve to make the air pressure diagram of the machine easier tounderstand.

10.Along with remote-maintenance systems,remote inspection maintenance,solve the troubles for you.

11.Low rejection rate: less than 0.2 percent.
