Providing the A Towards Z Full Complete Water Production Line Include Water Filling Machine Packing Machine Water Treatment Blowing Machine. This water high-grade body has all of you have to create the appropriate water in containers product towards satisfy your requirements or even use private.
Possessing a water gadget filling can easily load several compartments at the same time, you have the ability to bring up your effectiveness tenfold. The device consists of an individual user interface easy's easy towards utilize as well as recognize, reducing the educating flex for brand name drivers that are new.
The A Towards Z Full Complete Water Production Line Include Water Filling Machine Packing Machine Water Treatment Blowing Machine is geared up possessing a water treatment body important in providing high-quality and consuming routine water natural. The progressed degree filtration treatment assurances all of pollutants are gotten rid of, providing cool and water healthy and balanced.
Likewise, the production line functions a blowing gadget allowing you towards customize the measurements as well as kind of compartments you use. You have the ability to choose compartment various and dimensions, which assurances you have obtained a side over competitors.
The A Towards Z Full Complete Water Production Line Include Water Filling Machine Packing Machine Water Treatment Blowing Machine likewise consists of a product packing gadget. You will have the ability to choose these gadgets auto-packing will load your services or products without squandering energy or even opportunity. Rather, it is feasible towards by hand choose towards load towards cut down costs.
This item brand, ZOEPACK, is truly a relied on and brand reliable the market place. Along with a number of years of commitment and expertise towards high top premium, you will wager in the ZOEPACK Full Complete Water Production Line's high-top premium.
Especially, the A Towards Z Full Complete Water Production Line Include Water Filling Machine Packing Machine Water Treatment Blowing Machine is not easy to use and difficult towards preserve. You will take care of the product extremely well through performing cleaning routine maintenance as advised due to the item producer.
Along with the A Towards Z Full Complete Water Production Line Include Water Filling Machine Packing Machine Water Treatment Blowing Machine, you will such as a modern and product packing specialist, creating this appropriate towards create your product when you take a check out the shelfs. The style smooths the first-class product you offer. Customers is going to become thrilled utilizing the professionalism of one's items and solutions.
Company Profile
Zoe Pack(suzhou) CO.,Ltd.
We are a professional food and beverage machinery manufacture. ZOE PACK has its own special advantages in the research, design and manufacture and offers technical support to customers. We provide perfect after-sales service.
Our Beverage Machinery includes carbonated soft drink production lines; none-areated beverage bottled filling production lines and juice / tea beverage / wine bottled / barreled filling production lines. You are welcome to cooperate with us.
This series of bottle water production lines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with optional capacity from is 2000BPH based on 200ml to 2000ml.
Technical Parameters
Washing, Filling, Capping 3-in-1 Unit for Water | ||||||||||||||
Model | ZP12-12-6 | ZP18-18-6 | ZP24-24-8 | ZP32-32-8 | ZP40-40-10 | ZP50-50-12 | ZPCGZ60-60-15 | |||||||
Production Capacity(bph) | 2000-4000 | 5000-6000 | 8000-12000 | 12000-15000 | 16000-2000 | 20000-40000 | 25000-28000 | |||||||
Applicable Bottle Type | Bottle DiameterΦ50-Φ100mm; Height 150-320mm; Volume 330-1500ml | |||||||||||||
Applicable Cap Shape | Plastic Screw Cap | |||||||||||||
Gas Source Pressure(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |||||||
Gas Consumption(m3/min) | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | |||||||
Total Power(kw) | 4.6 | 4.6 | 6.4 | 7 | 11 | 12 | 15 | |||||||
Weigh(kg) | 2500 | 3300 | 4800 | 6000 | 8000 | 9500 | 12300 | |||||||
Dimension(L*W*H)(mm) | 2450*1650*2100 | 3600*1800*2100 | 3000*2000*2400 | 4000*2220*2400 | 4100*2700*2600 | 4500*3400*2600 | 5400*4100*2600 | |||||||
Complete Line
From the beginning of Water treatment system to the end of bottle packing. One-stop integrated operation reduce the water wastage, shorten the operation time, increase more economy benefit. With less material and workers’ touch time, sanitary conditions will get better. This series of bottled water production lines are mainly used for the non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with capacity 2000-3000BPH based on 200ml to 2000ml. This small and start up water prduction line is composed with blowing machine, water filling machine, water purification station, labeling machine and packing machine, all the machines you ever need for starting your new water business.
Click here to send us messages >> Send Inquiry...
Machine Detail
Applications
Production Line Details
Water Treatment System
The raw water is pumped into the raw water tank through a water pump, and the large particles and impurities in the water are filtered out through preliminary filtration (silica sand filter, activated carbon filter and precision filter) , and then use the RO system or Hollow system to remove microorganisms in the water. Finally, The UV sterilizer will sterilize the water and store it in a pure water tank.
Bottle Blowing Machine
Making empty bottles by blowing PET preforms, it can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc., volume from 100 ml to 2000 ml. All customized and designed especially for your target market.

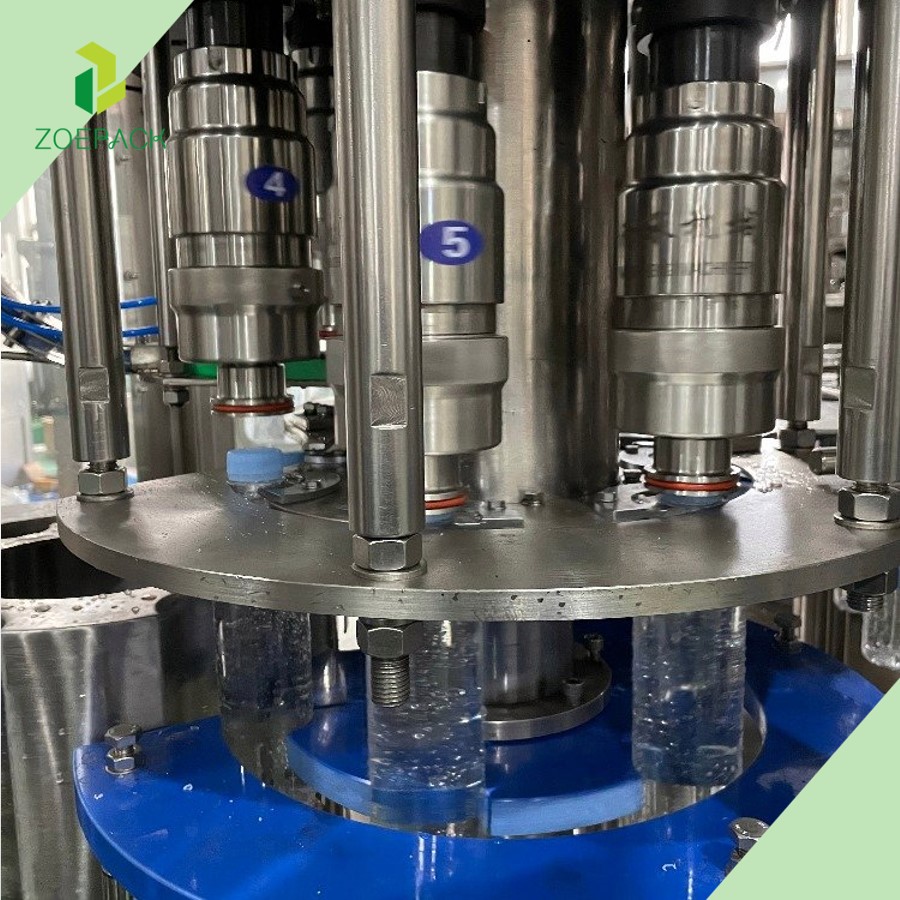

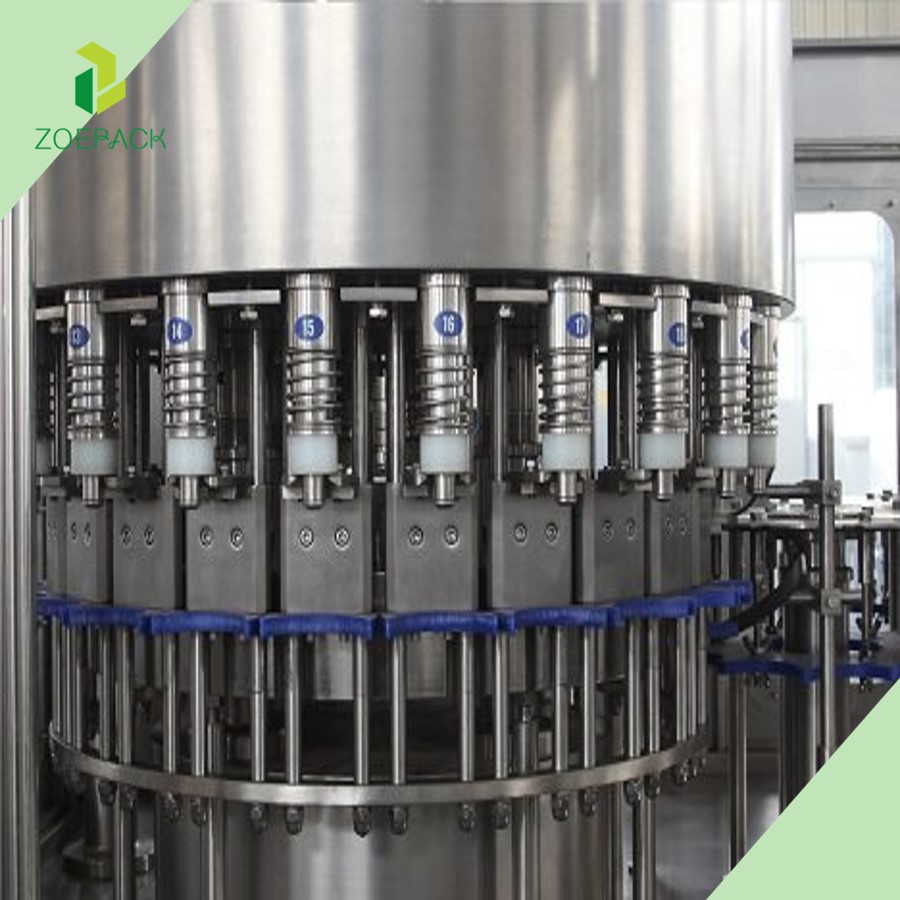

Water Filling Machine
Water filling machine is a fully automatic 3 in 1 machine integrates Rinsing-filling-capping process, latest technology brings the quite high efficiency, Whole Material in SS304 maintains high-grade quality; Upgraded system with easier operation; Suitable for the filling production from 100ml to 2000ml bottles, capacity in small quantity and large quantity can be optional as customer characteristics.
Advanced touch screen and PLC control system makes man-machine communication true. Use guiding roulette instead of simple rotary table to roll out the finished bottles, ensuring the stability and preventing the bottles from falling down.
Labeling Machine
Adopt different customer’s requirement, with different types of labeling machine, ensure the precision of labeling method and placement. Advanced technology for the operation system manufactured by worldwide famous supplier to make sure the delicate operation.
Description:
1. sticker labeling machine
2. shrink sleeve labeling machine
3. OPP labeling machine
Packing Machine
Proximity switch control film length. Touch screen, PLC system greatly increase facility movement reliability. Frequency converter speed adjust,two segment convey device. Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture. Group finished bottle water by film, like: 24=4*6 ,12=3*4 6=2*3. Case packing machine is also available.
Air conveyor is a bridge between blowing machine and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. The bottle is transferred to 3 in 1 machine through wind.
The structure of the conveyor is designed by modular. The alternativeness of the parts are flexible, the structure is intensity, little noise and it is convenient to fix and maintenance it. It can be grouped according to the different capacity and bottle shape flexibly.
