Full Automatic Small Business Plastic Bottle Drinking Mineral Pure Water Filling Plant Production Line

Get a Quote Inquiry

Description

Applications

Technical Parameters

Washing, Filling, Capping 3-in-1 Unit for Water
Model	ZP12-12-6	ZP18-18-6	ZP24-24-8	ZP32-32-8	ZP40-40-10	ZP50-50-12	ZPCGZ60-60-15
Production Capacity(bph)	2000-4000	5000-6000	8000-12000	12000-15000	16000-2000	20000-40000	25000-28000
Applicable Bottle Type	Bottle DiameterΦ50-Φ100mm; Height 150-320mm; Volume 330-1500ml
Applicable Cap Shape	Plastic Screw Cap
Gas Source Pressure(Mpa)	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Gas Consumption(m3/min)	0.4	0.4	0.6	0.6	0.6	0.8	0.8
Total Power(kw)	4.6	4.6	6.4	7	11	12	15
Weigh(kg)	2500	3300	4800	6000	8000	9500	12300
Dimension(LWH)(mm)	245016502100	360018002100	300020002400	400022202400	410027002600	450034002600	540041002600

Washing, Filling, Capping 3-in-1 Unit for 3-10L Water
Model	ZP4-4-1	ZP12-12-4	ZP16-16-4	ZP20-20-5
Production Capacity(bph)	500-600	2000-2500	3000-3500	3500-4000
Suitable bottle diameter	Φ=110-220mm; H=170-380mm
Spraying pressure	2-3
Motor power(kw)	3.0	4.0	5.5	7.5
Dimension(LWH)(mm)	245016502100	300020002400	410027002600	450034002600
Weigh(kg)	2500	4800	5500	7500

Company Profile

Zoe Pack (suzhou) CO., Ltd.

We are a professional water and beverage machinery manufacture. ZOE PACK has its own special advantages in the research, design and manufacture and offers technical support to customers. We provide perfect after-sales service.

Our Beverage Machinery includes carbonated soft drink production lines; none-areated beverage bottled filling production lines and juice / tea beverage / wine bottled / barreled filling production lines. You are welcome to cooperate with us.

This series of bottle water production lines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with optional capacity from is 2000BPH based on 200ml to 2000ml.

Complete line

From the beginning of Water treatment system to the end of bottle packing. One-stop integrated operation reduce the water wastage, shorten the operation time, and increase more economy benefit. With less material and workers’ touch time, sanitary conditions will get better. This series of bottled water production lines are mainly used for the non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with capacity 2000-3000BPH based on 200ml to 2000ml. This small and start up water production line is composed with blowing machine, water filling machine, water purification station, labeling machine and packing machine, all the machines you ever need for starting your new water business.

Machine Detail

Production Line Details

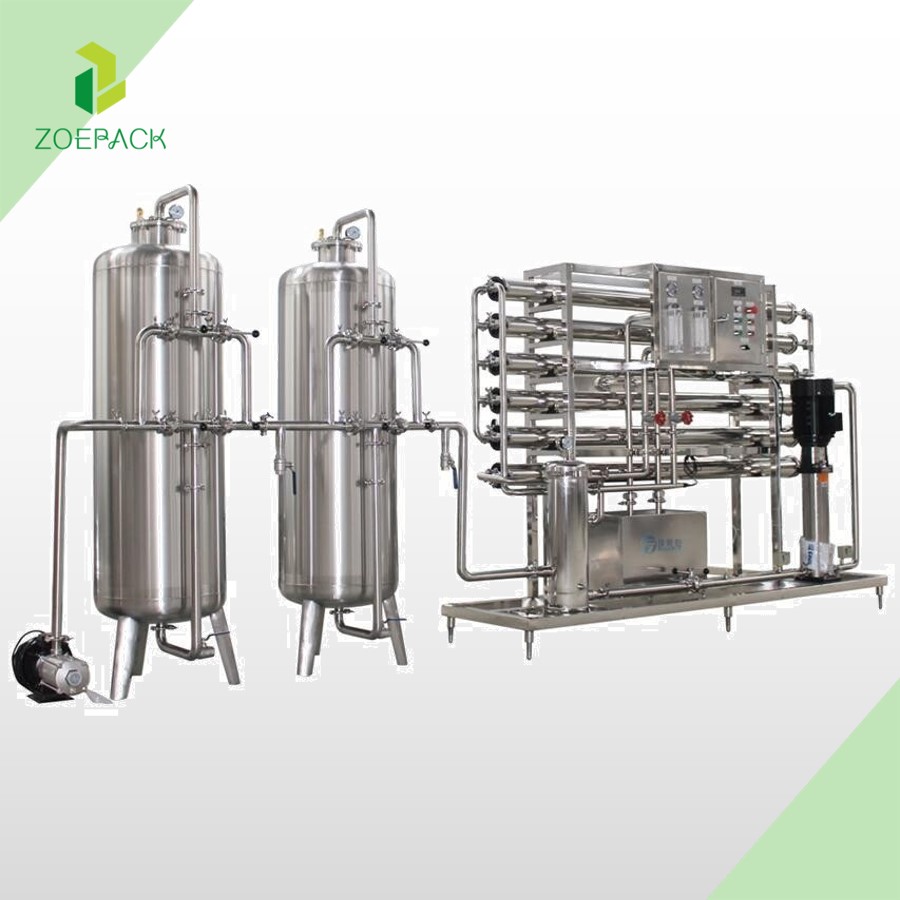

Water Treatment System

The raw water is pumped into the raw water tank through a water pump, and the large particles and impurities in the water are filtered out through preliminary filtration (silica sand filter, activated carbon filter and precision filter) , and then use the RO system or Hollow system to remove microorganisms in the water. Finally, The UV sterilizer will sterilize the water and store it in a pure water tank.

Bottle Blowing Machine

This PET water bottle blow molding machine is specially designed to produce water bottle, PET bottle with high heat resistance for
hot filing package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has
slight shrinkage during hot filling.

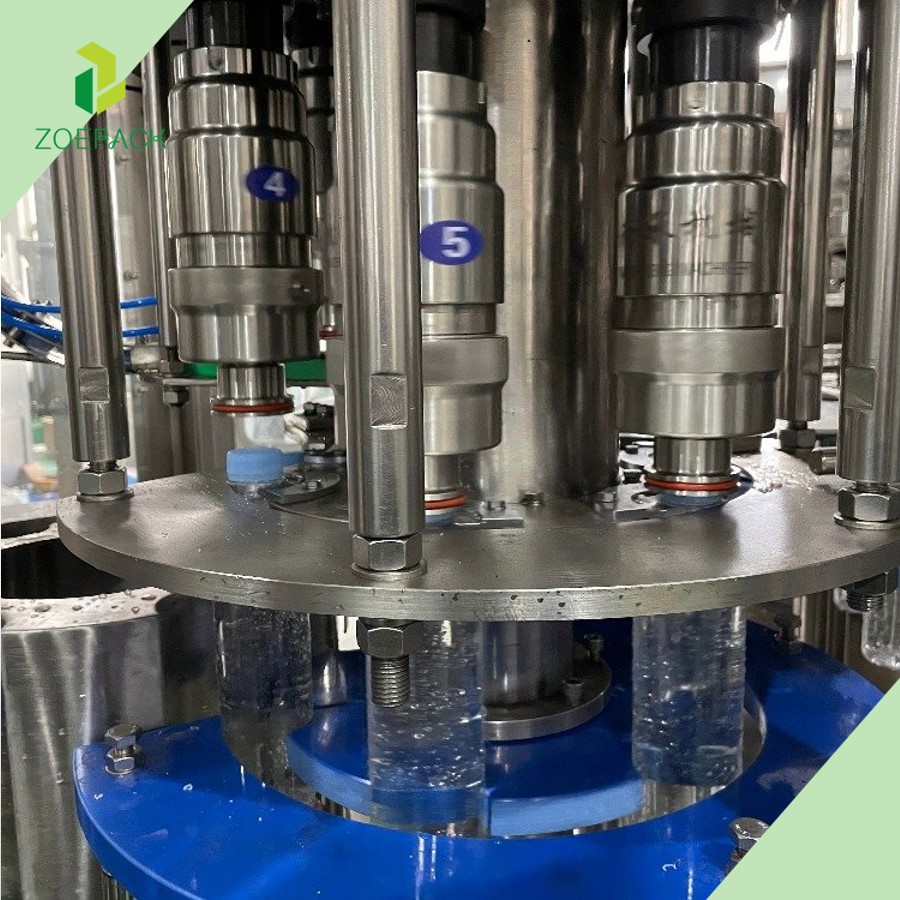

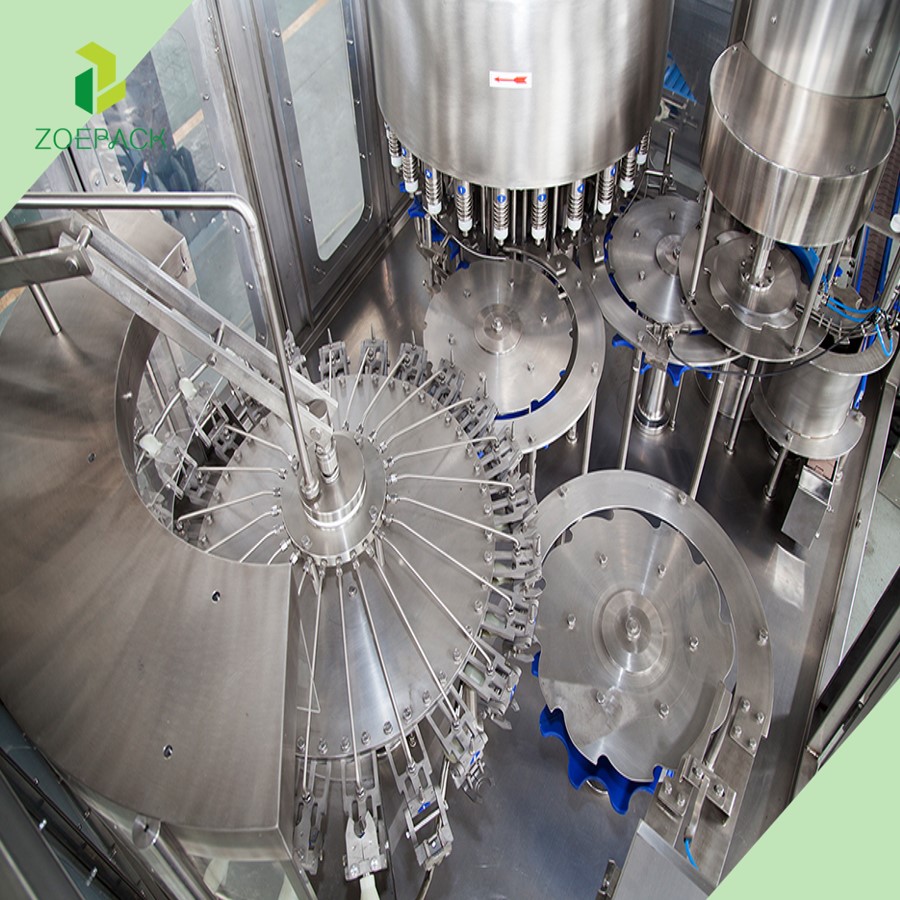

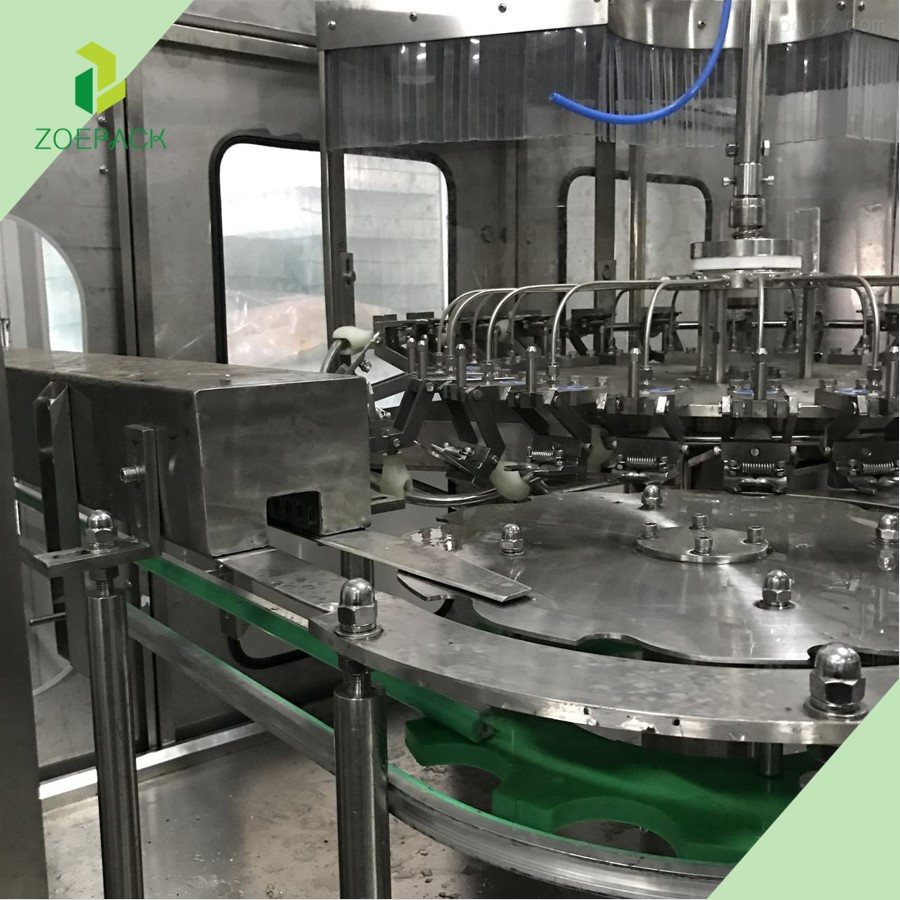

Water Filling Machine

Water filling machine is a fully automatic 3 in 1 machine integrates Rinsing-filling-capping process, latest technology brings the quite high efficiency, Whole Material in SS304 maintains high-grade quality; Upgraded system with easier operation; Suitable for the filling production from 100ml to 2000ml bottles, capacity in small quantity and large quantity can be optional as customer characteristics.

Advanced touch screen and PLC control system makes man-machine communication true. Use guiding roulette instead of simple rotary table to roll out the finished bottles, ensuring the stability and preventing the bottles from falling down.

Labeling Machine

Adopt different customer’s requirement, with different types of labeling machine, ensure the precision of labeling method and placement. Advanced technology for the operation system manufactured by worldwide famous supplier to make sure the delicate operation.

Description:

1. Sticker labeling machine

2. Shrink sleeve labeling machine

3. OPP labeling machine

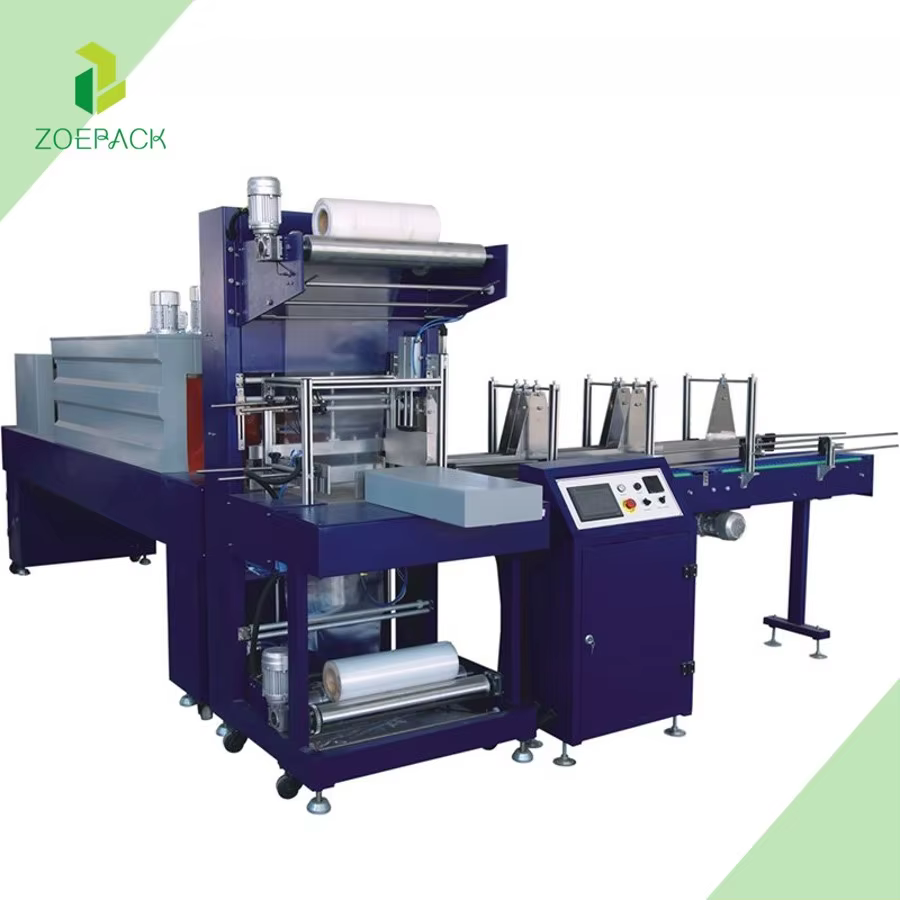

Packing Machine

Proximity switch control film length. Touch screen, PLC system greatly increase facility movement reliability. Frequency converter speed adjust, two segment convey device. Bottle pushing, thermos sealing and cutting whole movement adopt to pneumatic fracture. Group finished bottle water by film, like: 24=4*6, 12=3*4 6=2*3. Case packing machine is also available.

Air conveyor

Air conveyor is a bridge between blowing machine and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. The bottle is transferred to 3 in 1 machine through wind.

Flat conveyor

The structure of the conveyor is designed by modular. The alternativeness of the parts are flexible, the structure is intensity, little noise and it is convenient to fix and maintenance it. It can be grouped according to the different capacity and bottle shape flexibly.

Customer Photos

FAQ

Q: Can we visit your factory?

Of course, we are located in Zhangjiagang City, which is very close to Shanghai. The high-speed rail is only one hour away from Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up at the airport. (Or Hongqiao International Airport.) We also provide online video access.

Q: How can we get the exact price of plastic machine?

If possible, please contact us and provide product size, shape, annual quantity, and photos. We can provide a quotation to recommend our machine model.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment. (contact us for packing list )

Q: How about your after-sale service?

We provide manual guidance and engineer training before loading, and 24-hour online support, video technical support, or on-site installation assistance after shipment.

Q: What is the lead time?

For customized machine, it takes about 60 days after deposit. For stock machine, fast shipment. (The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine?

12 months warranty for components and technical support.

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's ZOE PACK's advantage?

ZOE PACK provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

ZOE PACK will be your reliable friend in China, and we will always do our best to give you max support!

ZOEPACK

Introducing the total Automatic small company vinyl Bottle Drinking Mineral Pure liquid Filling Plant Production Line through the brand ZOEPACK this is certainly trusted. That is high-quality with unparalleled efficiency and accuracy with this manufacturing line, you can manufacture water.

The manufacturing line is wholly automated, helping you to save commitment when you look at the production procedure. The unit is made to manage plastic containers of numerous sizes, providing you a deal is great complete of. You'll be able to produce containers of 100ml to 5000ml easily and quickly.

The output associated with production line is impressive, delivering a price is manufacturing much as 3000 containers each hour. This shows that it's possible to create water bottles in huge amounts, perfect for tiny to businesses are medium-sized. You'll be able to quickly meet consumer demand without compromising on quality.

Making utilization of this manufacturing line simplifies your production process if you take up only a small amount area as possible. It offers a lightweight and design is permits which are robust to fit it in little factory settings. This may help you save on expenses associated with managing a center is large.

An easy task to operate with a computer programs is insures are intuitive the minimum operator is experienced run the production line. The merchandise automatically adjusts to generate containers which can be high-quality by inputting the specified parameters.

Created materials which can be using could be top-quality are designed to final. It is constructed metal is using stainless the body that entire ensuring the product is corrosion-resistant and easy to keep up.

ZOEPACK prides itself on providing gear associated with all of the quality is highest, along with Full Automatic small enterprise vinyl Bottle Drinking Mineral Pure liquid Filling Plant Production Line isn't any exclusion. It fulfills all quality and safety criteria to offer you peace of brain when running.

The Full automated small company Plastic Bottle Drinking Mineral Pure liquid Filling Plant Production Line from ZOEPACK could be the perfect equipment for the businesses if you are trying to find a dependable, efficient manufacturing line is an easy task to operate and offers output that top-quality.
