Production Description
ZOE PACK
Semi Automatic PET Bottle Blow Molding Machine
This PET bottle making blow moulding machine is controlled by microcomputer. The plastic
blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately, with infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.
PET semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.
Technical Parameters
Main machine (blower + oven ) | Item | ZP-2L-4 |
Product Spec | Max. product volume (L/cav) | 2L |
Max. product neck size (mm) | 100 | |
Max. product diameter (mm) | 180 | |
Max. product height (mm) | 300 | |
Cavities | 4 | |
Blow molding part | Die force (KN) | 100 |
Die stroke (mm) | 270 | |
390*345 | ||
Mould thickness | Adjustable | |
Mould spacing (mm) | Adjustable | |
Max. pulling stroke (mm) | 400 | |
Operation pressure (Mpa) | 0.8-1.0 | |
Operation air pressure consumption (1tr/min) | 200 | |
Blow pressure (Mpa) | 1.2-2.8 | |
Blow air pressure consumption (1tr/min) | 300 | |
Output (pcs/h) | 2600-2800 (500ml bottle) | |
Machine size (LxWxH)(m) | 1.46*0.58*1.8 | |
Machine weight (KG) | 650 | |
Oven | Temperature grade (rate) | 8 |
Heating time (S) | 90-200 | |
Voltage (V) | 220 or as your rrquest | |
Frequency (HZ) | 50/60 | |
Total power (KW) | 16 | |
Oven Size (LxWxH) | 1.35*0.55*1.15 | |
Oven weight (KG) | 300 |
Machine Advantages
Q Series PET Bottle Blowing Machine Description
PET linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Semi-auto blow molding machine
Semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training. PET blow molding
machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot
filling bottles and cosmetic bottles. It is suitable for the production of small beverage
companies and daily chemical product companies.
Infrared lamp heating
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;
heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic
temperature-removal device to ensure the constant temperature of oven.

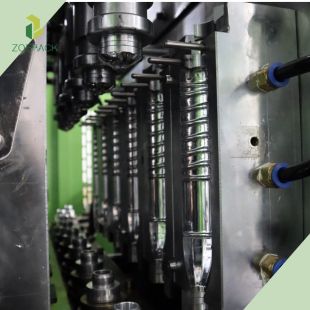

Specially designed high rigidity composite mold structure
Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy
to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid
response, long working hours , stable performance,ensure stable operation.
