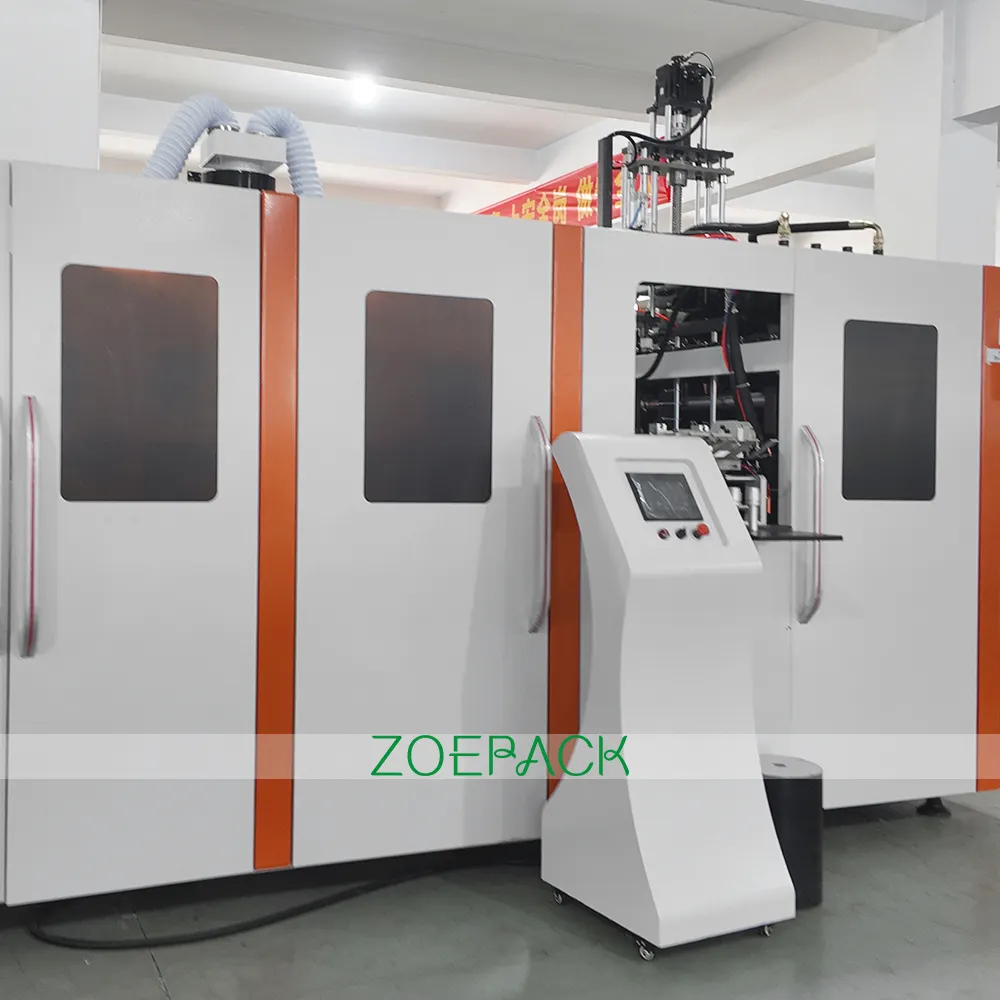

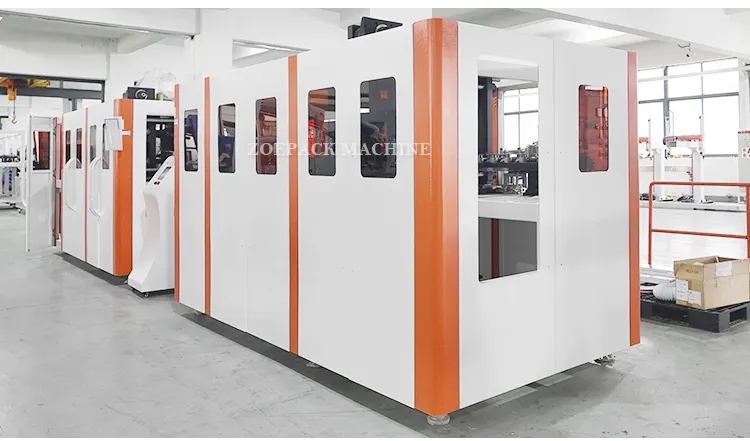

4 Cavilities Full Automatic Bottle Molding Machine
Adopt touch -type color HMl systems as to operate. Can blow maximum 10 literbottles. Maximum production speed can be 1500 bottles/hour.
Applicable to all kinds of PET botles which used for oll, soft drinks, mineral wa-ter,wine,medicine.cosmetics.etc.
1. Customized mold engineering and flexible production
We know that every beverage and juice brand has unique packaging requirements, and our PET automatic blow molding machines are designed to meet a variety of customization options. Our in-house mold engineering team uses advanced computer-aided design (CAD) and computer-aided manufacturing (CAM) technologies to create customized molds that meet customers' specific needs.
The mold design process takes into account various factors, such as bottle shape, size, wall thickness and surface finish. Our engineers use finite element analysis (FEA) to optimize the mold structure to ensure that it can withstand the high pressure and temperature during the blowing process while maintaining the accuracy of the bottle size. The mold is manufactured using high-precision machining technologies such as electrical discharge machining (EDM) and five-axis milling to achieve the required surface finish and dimensional tolerances.

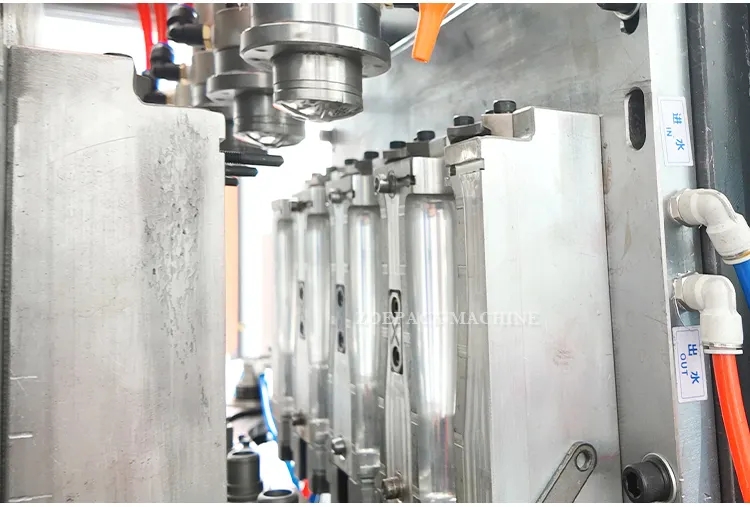

The machine's quick mold change system allows for rapid switching between different bottle designs. The mold clamping mechanism is designed with a high-precision centering system to ensure that the mold is accurately positioned and clamped with constant force. This not only reduces downtime during mold changes, but also improves the quality and consistency of the bottles produced.
2. Professional service guarantee throughout the entire life cycle
Our commitment to customer success runs through the entire life cycle of the PET automatic blow molding machine. Our pre-sales team is composed of industry experts who have a deep understanding of beverage packaging and blow molding technology. They work closely with customers to understand their production needs, product specifications and long-term business goals, and provide customized solutions to meet their needs.
During the installation and commissioning phase, our skilled technicians will ensure that the machine is properly installed and calibrated for optimal performance. We provide comprehensive training programs for operators and maintenance personnel, covering topics such as machine operation, process control, maintenance procedures and troubleshooting techniques. Our training programs are designed to help users master the knowledge and skills required to operate the machine efficiently and safely.
In terms of after-sales service, our global service network provides customers with 24/7 support. Our service technicians are professionally trained to handle a variety of technical issues, from routine maintenance and repairs to complex process optimization. We also provide regular preventive maintenance services, including equipment inspection, calibration and replacement of wearing parts. This proactive maintenance approach helps extend the life of the machine and ensures its continued reliable operation.
All in all, our PET automatic blow molding machine represents the pinnacle of professional-grade beverage packaging equipment. With its advanced technology, deep understanding of material science, high-precision automation, customization capabilities and comprehensive services, it provides a complete solution for beverage and juice manufacturers who are committed to achieving the highest levels of quality, efficiency and innovation in packaging production. Contact us today to learn more about how our machines can transform your beverage packaging business.
| TechnicalParameters | ZPA-1L-2 | ZPA-2L-2 | ZPA-1L-4 | ZPA-2L-4 | ZPA-1L-6 | ZPA-2L-6 | |
| Cavity | 2 | 2 | 4 | 4 | 6 | 6 | |
| Host Machine Parameter | Clamping Force | 35000 | 45000 | 48000 | 48000 | 56000 | 65000 |
| Mold Route | 90 | 110 | 90 | 125 | 90 | 125 | |
| Stretching Rod Route | 300 | 400 | 260 | 330 | 260 | 330 | |
| Boctomn llold Route | 50 | 50 | 50 | 50 | 50 | 50 | |
| Bottle Spacing | 76.2 | 114.3 | 76.2 | 114.3 | 76.2 | 114.3 | |
| Bottle Preform Number | 66 | 52 | 95 | 82 | 106 | 92 | |
| Prodncts Parameter | Max Capacty | 660 | 1500 | 600 | 1500 | 600 | 1500 |
| Max Bottle Boby Height | 260 | 330 | 260 | 330 | 260 | 330 | |
| Max Bottle Body Diameter | 68 | 105 | 68 | 105 | 68 | 105 | |
| MaxBottle Preformn Height | 100 | 140 | 100 | 140 | 100 | 140 | |
| Max Bottle Mouth Diameter | 38 | 38 | 38 | 38 | 38 | 38 | |
Eleetrical Parameter | Capacty | 2500 | 2000 | 4500 | 4000 | 7200 | 6000 |
| Heating Oven Quantity | 2*2 | 4*4 | 4*4 | 5*5 | 4*4 | 5*8 | |

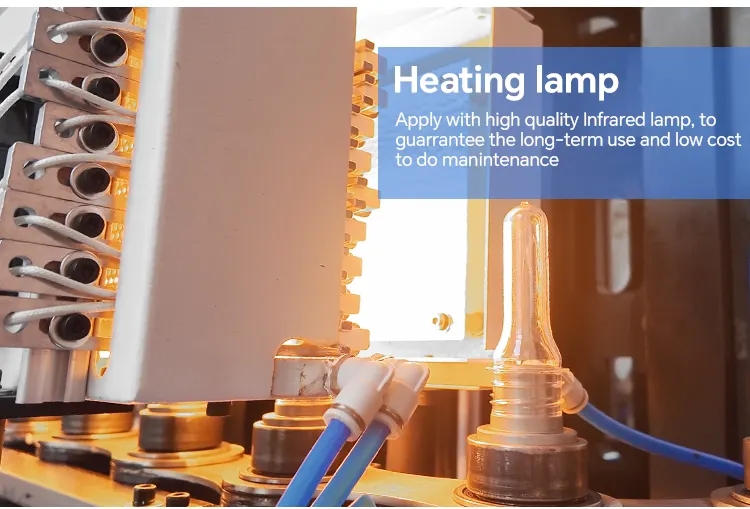

| Heating Lamp Quantity | 2*8 | 4*8 | 4*7 | 5*9 | 4*8 | 5*9 | |
| Heating Confguration Power | 32 | 48 | 42 | 72 | 64 | 90 | |
| Total Power Capedity | 32 | 48 | 42 | 72 | 64 | 90 | |
| Voltage | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ | |
| Air source Parameter | Worling Pressure | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 |
| Blowing Pressure | 2 5-3.0 | 2 5-3.0 | 2 5-3.0 | 2 5-3.0 | 2 5-3.0 | |
| Air Capacitly Consumption | 2.4/30 | 2.4/30 | 3.6/30 | 3.6/30 | 5.0/30 | |
| Total Powwer | 30 | 30 | 45 | 45 | 60 | |
| Cooling Chiler Parameter | Ternperature | 9-13 | 9-13 | 9-13 | 9-13 | 9-13 |
| Pressure | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | |
| Rated Power | 3 | 3 | 5 | 5 | 5 | |
| Dimenson | Host Machine Size | 2700*1800 | 3300*1800 | 3900*1800 | 4800*2200 | 4200*2100 |
1 .stable and accurate running at high speed,adopt more stable and advanced micro-computer PLC control system.
2. production process is fully automated, with the advantages of low investment, highefficiency,easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range ofapplications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control. simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle.
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's ZOE PACK's advantage?
ZOE PACK provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
