We are a professional water and beverage machinery manufacture. ZOE PACK has its own special advantages in the research, design and manufacture and offers technical support to customers. We provide perfect after-sales service.

Our Beverage Machinery includes carbonated soft drink production lines; none-areated beverage bottled filling production lines and juice / tea beverage / wine bottled / barreled filling production lines. You are welcome to cooperate with us.

This series of bottle water production lines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with optional capacity from is 2000BPH based on 200ml to 2000ml.

Complete Line

From the beginning of Water treatment system to the end of bottle packing. One-stop integrated operation reduce the water wastage, shorten the operation time, and increase more economy benefit. With less material and workers’ touch time, sanitary conditions will get better. This series of bottled water production lines are mainly used for the non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with capacity 2000-3000BPH based on 200ml to 2000ml. This small and start up water production line is composed with blowing machine, water filling machine, water purification station, labeling machine and packing machine, all the machines you ever need for starting your new water business.

Machine Detail

Production Line Details

Water Treatment System

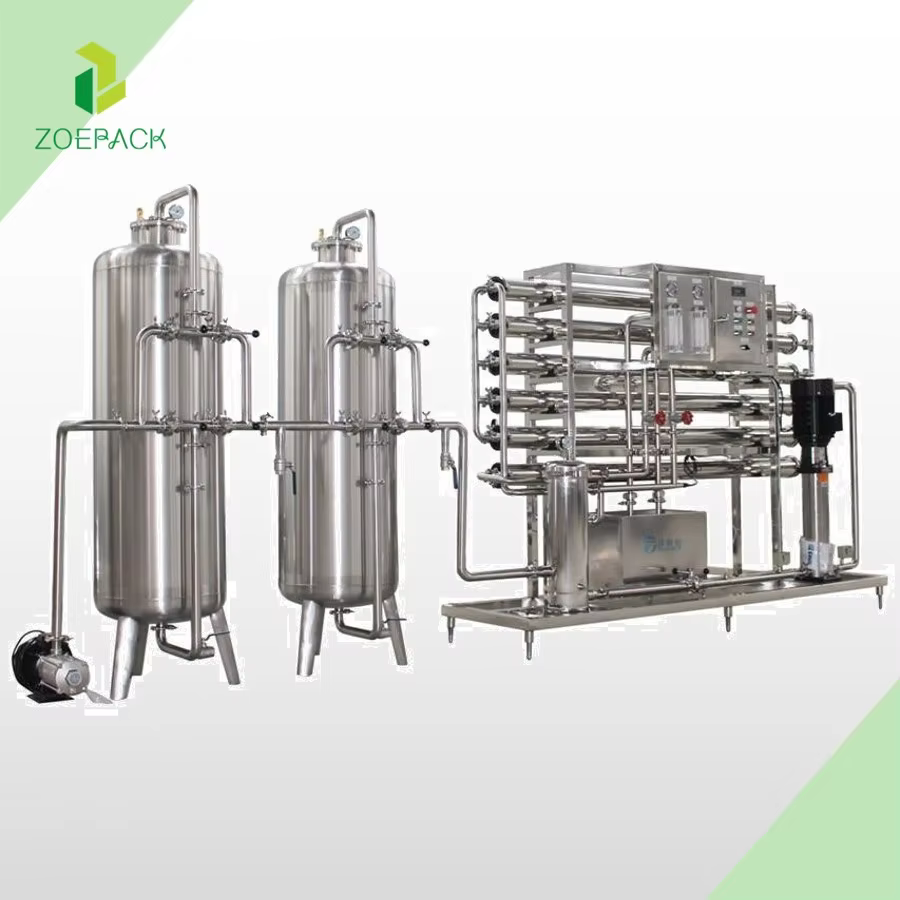

The raw water is pumped into the raw water tank through a water pump, and the large particles and impurities in the water are filtered out through preliminary filtration (silica sand filter, activated carbon filter and precision filter) , and then use the RO system or Hollow system to remove microorganisms in the water. Finally, The UV sterilizer will sterilize the water and store it in a pure water tank.

Bottle Blowing Machine

This PET water bottle blow molding machine is specially designed to produce water bottle, PET bottle with high heat resistance for
hot filing package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has
slight shrinkage during hot filling.

Water Filling Machine

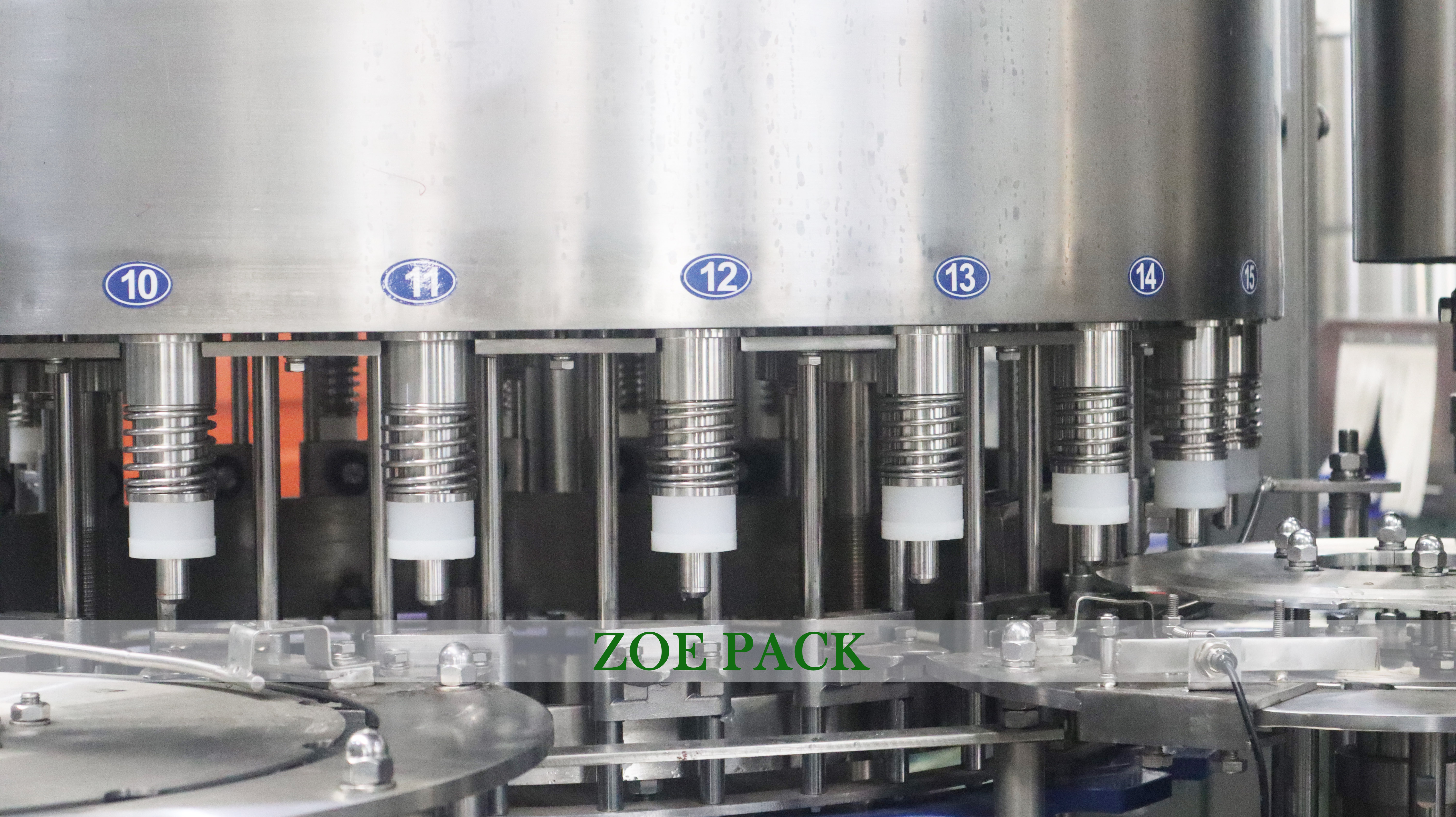

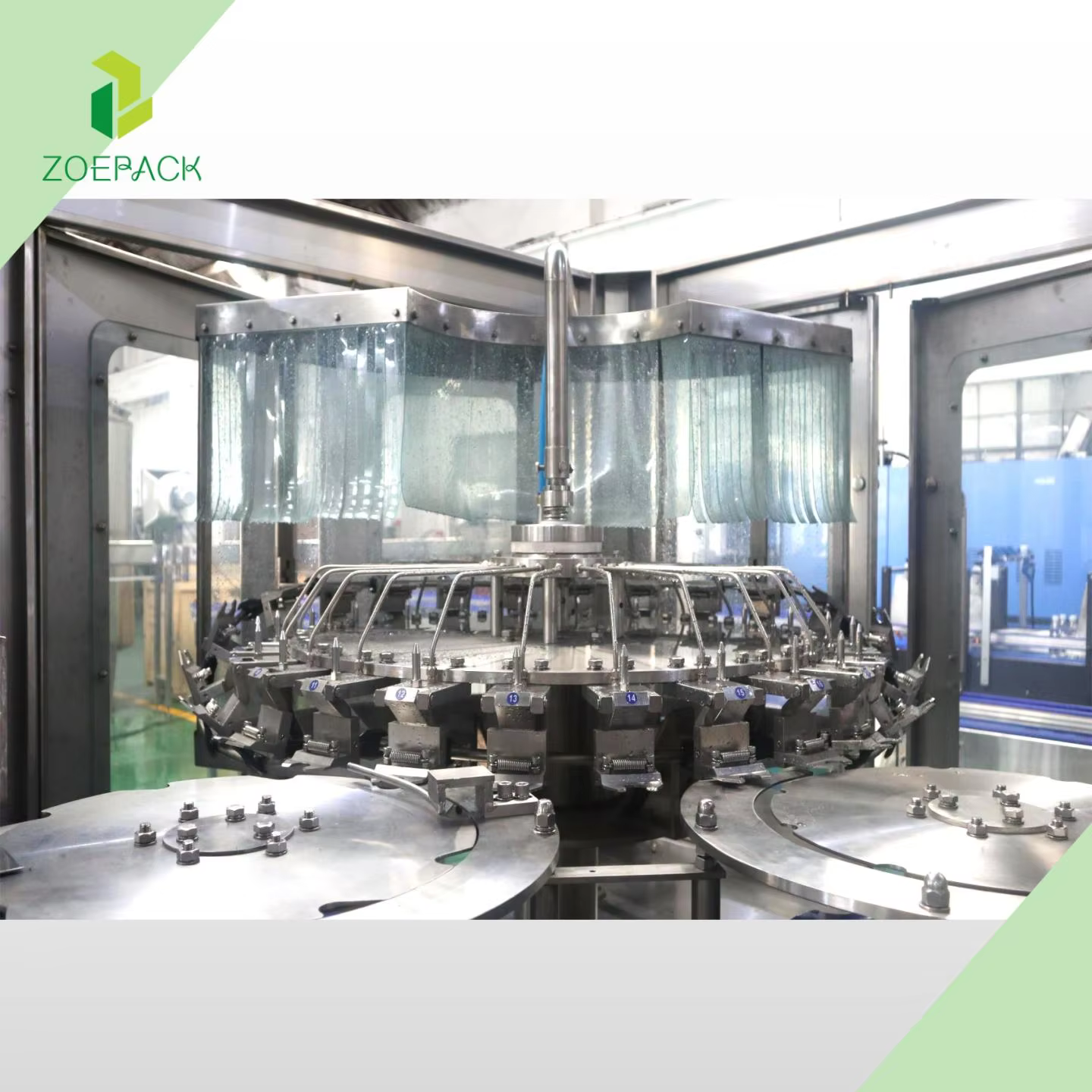

Water filling machine is a fully automatic 3 in 1 machine integrates Rinsing-filling-capping process, latest technology brings the quite high efficiency, Whole Material in SS304 maintains high-grade quality; Upgraded system with easier operation; Suitable for the filling production from 100ml to 2000ml bottles, capacity in small quantity and large quantity can be optional as customer characteristics.

Advanced touch screen and PLC control system makes man-machine communication true. Use guiding roulette instead of simple rotary table to roll out the finished bottles, ensuring the stability and preventing the bottles from falling down.

Labeling Machine

Adopt different customer’s requirement, with different types of labeling machine, ensure the precision of labeling method and placement. Advanced technology for the operation system manufactured by worldwide famous supplier to make sure the delicate operation.

Description:

1. Sticker labeling machine

2. Shrink sleeve labeling machine

3. OPP labeling machine

Packing Machine

Proximity switch control film length. Touch screen, PLC system greatly increase facility movement reliability. Frequency converter speed adjust, two segment convey device. Bottle pushing, thermos sealing and cutting whole movement adopt to pneumatic fracture. Group finished bottle water by film, like: 24=4*6, 12=3*4 6=2*3. Case packing machine is also available.

Air conveyor

Air conveyor is a bridge between blowing machine and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. The bottle is transferred to 3 in 1 machine through wind.

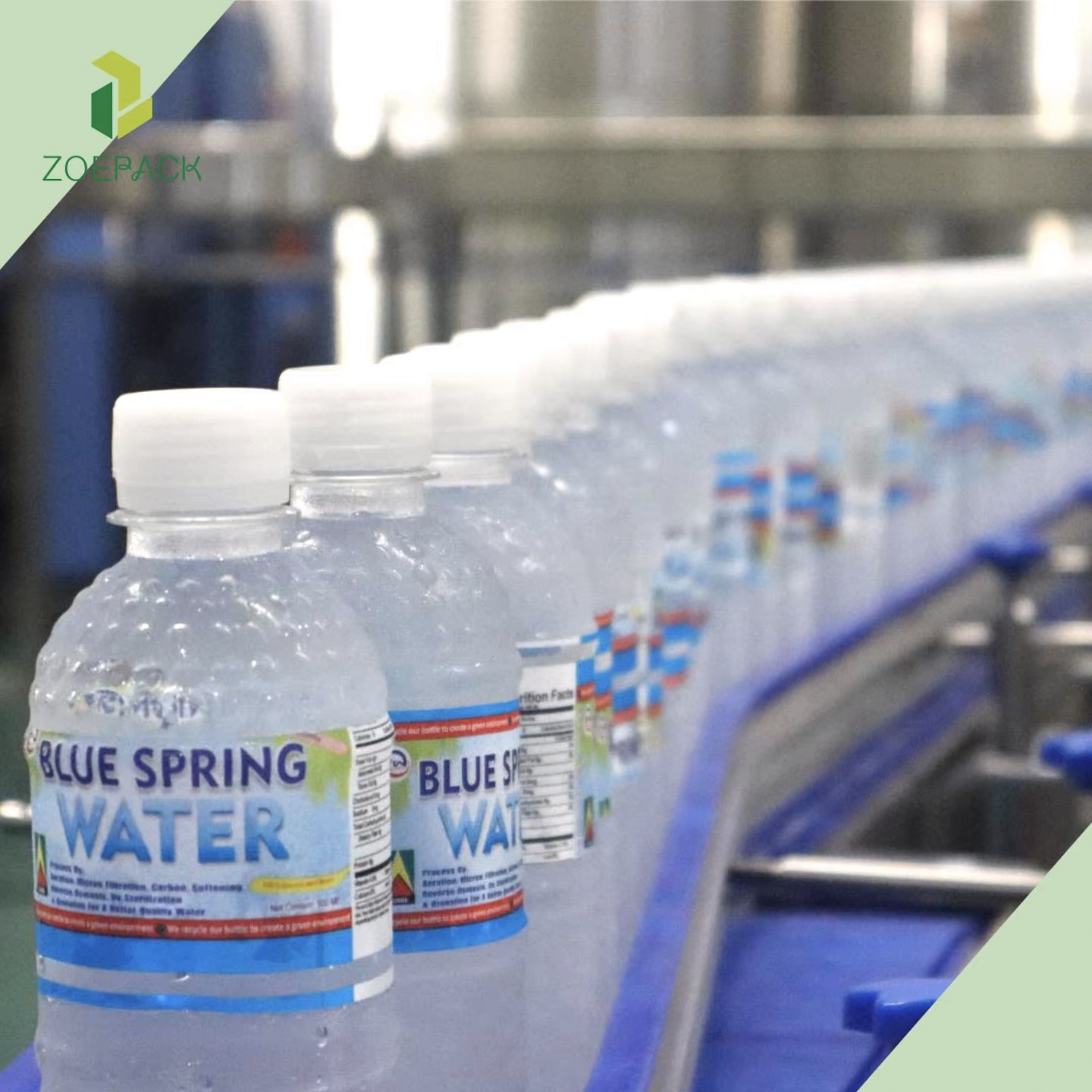

Flat conveyor

The structure of the conveyor is designed by modular. The alternativeness of the parts are flexible, the structure is intensity, little noise and it is convenient to fix and maintenance it. It can be grouped according to the different capacity and bottle shape flexibly.

Customer Photos

FAQ

ZOEPACK

Introducing the Automatic Washing fully revolutionary Capping in 1 Machine through the brand ZOEPACK is trusted. This item is revolutionary intended to simplify the way of bottling mineral water, permitting for quicker, more production is efficient.

The product is unquestionably in a position to clean, fill and cap up to 500ml of water simultaneously using it is fully ability is automated. Therefore you have access to your product or service off to quickly efficiently market and, without the necessity for many work is ongoing handbook gear.

Made from top-quality materials, ensuring durability and longevity, despite having usage is regular. It is specifically created to be reproduced in mineral water bottling, therefore you are understood by you shall get a very important factor is fit-for-purpose.

Functions with impressive rate, efficient at filling around 1500 bottles each hour. Will do of item, in a quantity is at short answer to obtain.

What sets this machine irrespective of other people is its easy-to-use software. With easy controls and operation is anybody is intuitive easily learn how to make use of the product. In addition it offers alarm is automated which will alert you whenever device is low on material or whenever something goes incorrect.

Ensuring your merchandise or services maintains its quality is essential, and the ZOEPACK Fully Automatic Bottle Washing Filling Capping 3 in 1 Machine ensures your mineral water is beautifully presented. It features a container system this capping is automated ensuring each bottle seems professional and neat. And, the item is sold with a stuffing is advanced, which accurately measures and fills each container to the known degree is exact suitable.

Overall, if you should be looking for a high-quality, efficient solution for the mineral water bottling needs, the ZOEPACK Fully Automatic Bottle Washing Filling Capping 3 in 1 Machine is an alternate is great. It is durable, a task is use this straightforward can let you streamline your production process. Plus, having its capabilities that might be automatic you can begin thinking about other areas of your business is online that your bottling needs are looked after.
