5000BPH Automatic Water Filling Machine Mineral Water Filling Plant Pure Water Production Line

Get a Quote Inquiry

Description

Applications

Technical Parameters

Washing, Filling, Capping 3-in-1 Unit for Water
Model	ZP12-12-6	ZP18-18-6	ZP24-24-8	ZP32-32-8	ZP40-40-10	ZP50-50-12	ZPCGZ60-60-15
Production Capacity(bph)	2000-4000	5000-6000	8000-12000	12000-15000	16000-2000	20000-40000	25000-28000
Applicable Bottle Type	Bottle DiameterΦ50-Φ100mm; Height 150-320mm; Volume 330-1500ml
Applicable Cap Shape	Plastic Screw Cap
Gas Source Pressure(Mpa)	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Gas Consumption(m3/min)	0.4	0.4	0.6	0.6	0.6	0.8	0.8
Total Power(kw)	4.6	4.6	6.4	7	11	12	15
Weigh(kg)	2500	3300	4800	6000	8000	9500	12300
Dimension(LWH)(mm)	245016502100	360018002100	300020002400	400022202400	410027002600	450034002600	540041002600

Washing, Filling, Capping 3-in-1 Unit for 3-10L Water
Model	ZP4-4-1	ZP12-12-4	ZP16-16-4	ZP20-20-5
Production Capacity(bph)	500-600	2000-2500	3000-3500	3500-4000
Suitable bottle diameter	Φ=110-220mm; H=170-380mm
Spraying pressure	2-3
Motor power(kw)	3.0	4.0	5.5	7.5
Dimension(LWH)(mm)	245016502100	300020002400	410027002600	450034002600
Weigh(kg)	2500	4800	5500	7500

Company Profile

Zoe Pack(suzhou) CO.,Ltd.

We are a professional water and beverage machinery manufacture. ZOE PACK has its own special advantages in the research, design and manufacture and offers technical support to customers. We provide perfect after-sales service.

Our Beverage Machinery includes carbonated soft drink production lines; none-areated beverage bottled filling production lines and juice / tea beverage / wine bottled / barreled filling production lines. You are welcome to cooperate with us.

This series of bottle water production lines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with optional capacity from is 2000BPH based on 200ml to 2000ml.

Complete Line

From the beginning of Water treatment system to the end of bottle packing. One-stop integrated operation reduce the water wastage, shorten the operation time, increase more economy benefit. With less material and workers’ touch time, sanitary conditions will get better. This series of bottled water production lines are mainly used for the non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with capacity 2000-3000BPH based on 200ml to 2000ml. This small and start up water prduction line is composed with blowing machine, water filling machine, water purification station, labeling machine and packing machine, all the machines you ever need for starting your new water business.

Machine Detail

Production Line Details

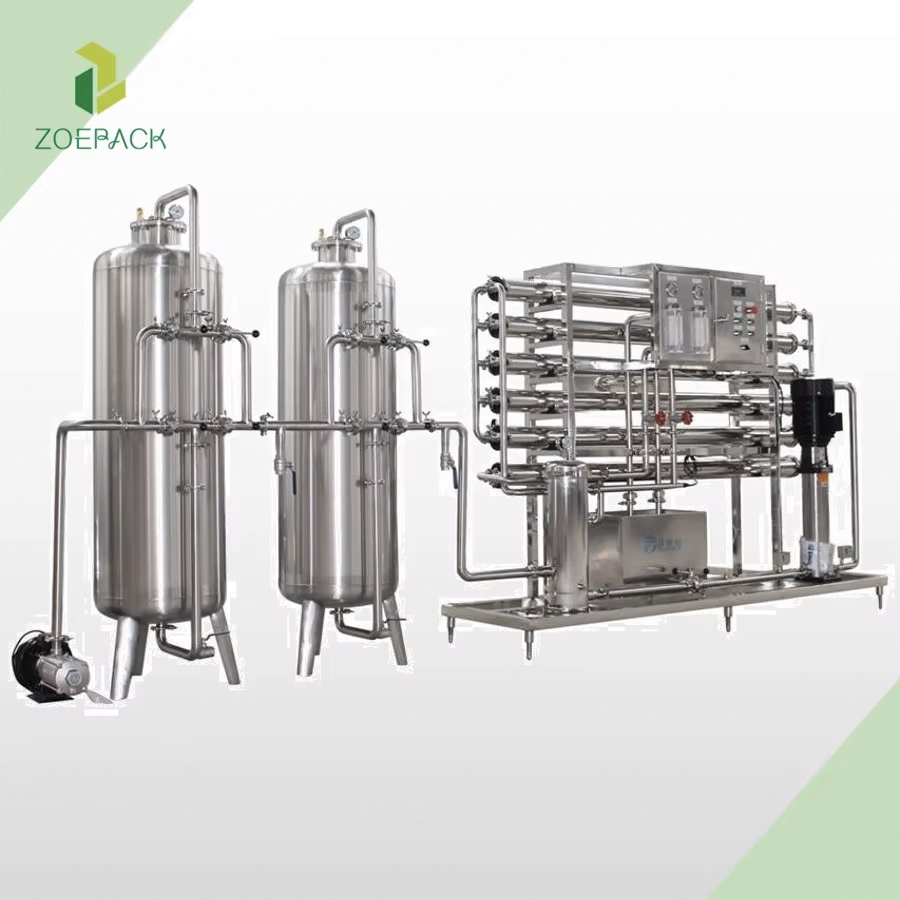

Water Treatment System

The raw water is pumped into the raw water tank through a water pump, and the large particles and impurities in the water are filtered out through preliminary filtration (silica sand filter, activated carbon filter and precision filter) , and then use the RO system or Hollow system to remove microorganisms in the water. Finally, The UV sterilizer will sterilize the water and store it in a pure water tank.

Bottle Blowing Machine

This PET water bottle blow molding machine is specially designed to produce water bottle, PET bottle with high heat resistance for
hot filing package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has
slight shrinkage during hot filling.

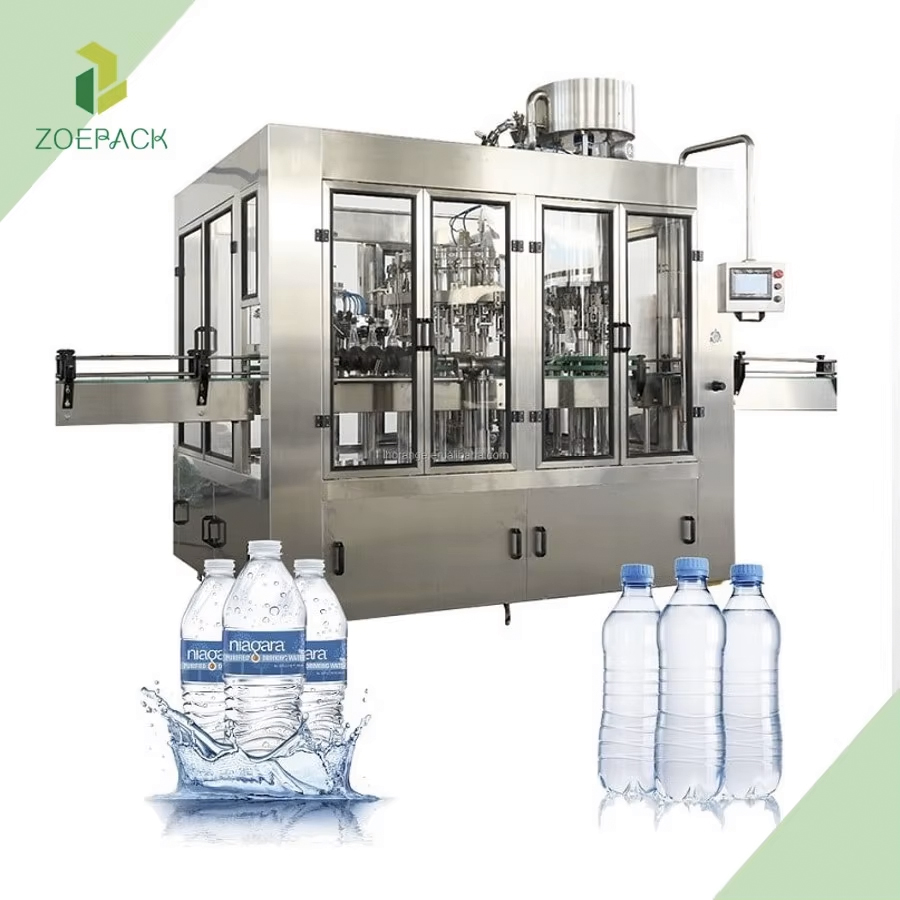

Water Filling Machine

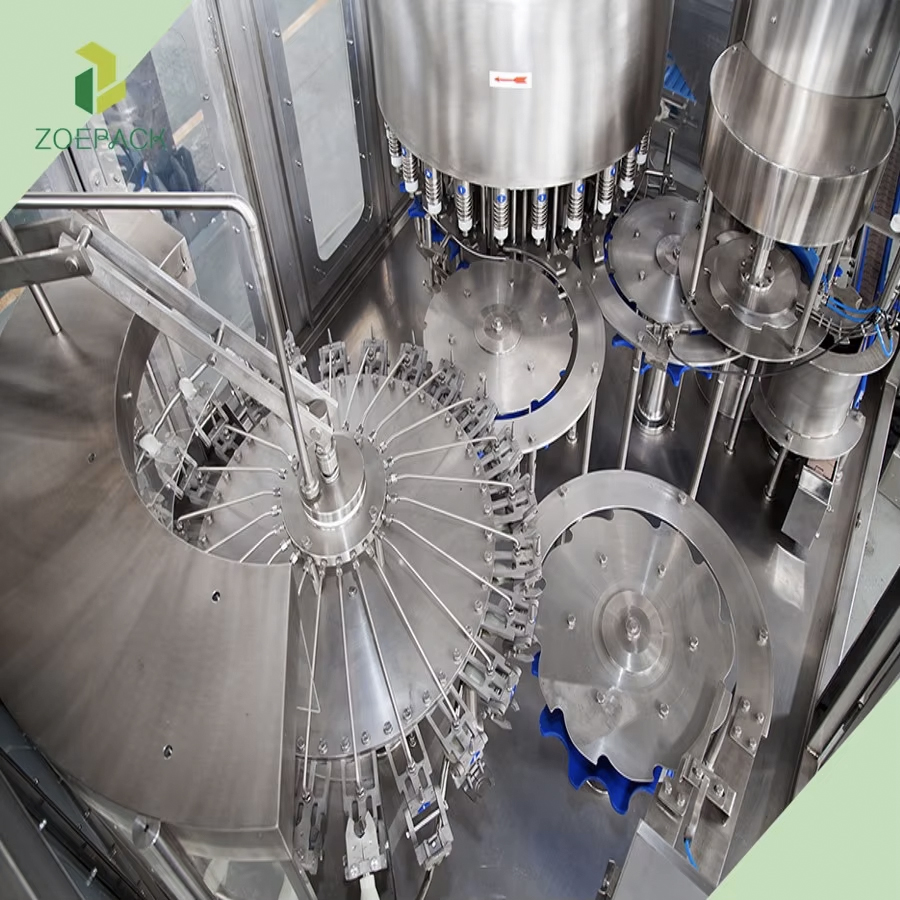

Water filling machine is a fully automatic 3 in 1 machine integrates Rinsing-filling-capping process, latest technology brings the quite high efficiency, Whole Material in SS304 maintains high-grade quality; Upgraded system with easier operation; Suitable for the filling production from 100ml to 2000ml bottles, capacity in small quantity and large quantity can be optional as customer characteristics.

Advanced touch screen and PLC control system makes man-machine communication true. Use guiding roulette instead of simple rotary table to roll out the finished bottles, ensuring the stability and preventing the bottles from falling down.

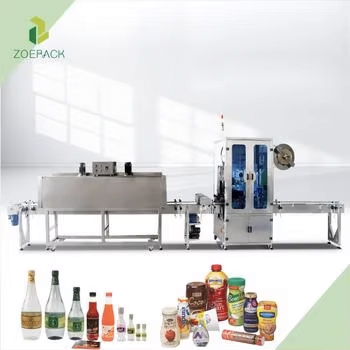

Labeling Machine

Adopt different customer’s requirement, with different types of labeling machine, ensure the precision of labeling method and placement. Advanced technology for the operation system manufactured by worldwide famous supplier to make sure the delicate operation.

Description:

1. sticker labeling machine

2. shrink sleeve labeling machine

3. OPP labeling machine

Packing Machine

Proximity switch control film length. Touch screen, PLC system greatly increase facility movement reliability. Frequency converter speed adjust,two segment convey device. Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture. Group finished bottle water by film, like: 24=4*6 ,12=3*4 6=2*3. Case packing machine is also available.

Air Conveyor

Air conveyor is a bridge between blowing machine and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. The bottle is transferred to 3 in 1 machine through wind.

Flat Conveyor

The structure of the conveyor is designed by modular. The alternativeness of the parts are flexible, the structure is intensity, little noise and it is convenient to fix and maintenance it. It can be grouped according to the different capacity and bottle shape flexibly.

Customer Photos

FAQ

Q: Can we visit your factory?

Of course, we are located in Zhangjiagang City, which is very close to Shanghai. The high-speed rail is only one hour away from Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up at the airport. (Or Hongqiao International Airport.) We also provide online video access.

Q: How can we get the exact price of plastic machine?

If possible, please contact us and provide product size, shape, annual quantity, and photos. We can provide a quotation to recommend our machine model.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We provide manual guidance and engineer training before loading, and24-houronline support, video technical support, or on-site installation assistance after shipment.

Q: What is the lead time?

For customized machine, it takes about60days after deposit. For stock machine, fast shipment. (The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine?

12 monthswarranty for components and technical support.

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's ZOE PACK's advantage?

ZOE PACK provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

ZOE PACKwill be your reliable friend in China, and we will always do our best to give you max support!

ZOEPACK

5000BPH Automatic Water Filling Machine – the solution is ultimate your water manufacturing needs. This state-of-the-art machine is made for the efficient and effective filling of mineral water and water is clear rendering it a perfect addition to your mineral water plant is filling.

In the middle for this ZOEPACK 5000BPH Automatic Water Filling Machine is its system this high-speed is. With the capacity of filling 5,000 bottles each hour, this machine was made to streamline your manufacturing process. Sufficient reason behind it’s completely operation is automatic higher degree control system, you'll be able to trust that each and every bottle will likely be filled to perfection.

Versatility is yet another function is key of ZOEPACK 5000BPH Automatic Water Filling Machine. A variety is had it perfect for the variety of products by it is wide of sizes that can be filled, making. This machine can appeal to the needs you have regardless if you are filling bottles that can easily be little sales are retail large people for distribution. Plus, along with its filling is advanced technology it helps to ensure that all bottle is filled into the desired level reason is sufficient minimal waste.

Repair can also be quite simple due to the ZOEPACK 5000BPH Automatic Water Filling Machine. Its elements which are top-quality framework is sturdy it simple to help keep clean, which makes it less susceptible to wear and tear. And alongside its filtration is higher level system it helps to ensure that the water being utilized is neat and safe.

The ZOEPACK 5000BPH automated Water Filling Machine could be made with conservation in your mind. Its energy-efficient operation lowers your energy bills and minimizes your carbon impact that means it is environmentally friendly.

Exactly what sets the ZOEPACK 5000BPH Automatic Water Filling Machine aside from its rivals is its control is advanced system. This method wound up being built to be user-friendly, letting you operate these devices with simplicity of use. Sufficient basis for its high rate diagnostics and data collection features, you're able to keep track of anything from the equipment's output to its energy consumption – making it the tool is right optimizing your water manufacturing procedure.

Trust in the energy of ZOEPACK and spend money on this ZOEPACK 5000BPH Automatic Water Filling Machine today.
