Zoe Pack(suzhou) CO.,Ltd.

We are a professional water and beverage machinery manufacture. ZOE PACK has its own special advantages in the research, design and manufacture and offers technical support to customers. We provide perfect after-sales service.

Our Beverage Machinery includes carbonated soft drink production lines; none-areated beverage bottled filling production lines and juice / tea beverage / wine bottled / barreled filling production lines. You are welcome to cooperate with us.

This series of bottle water production lines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with optional capacity from is 2000BPH based on 200ml to 2000ml.

Machine Detail

Complete Line

From the beginning of Water treatment system to the end of bottle packing. One-stop integrated operation reduce the water wastage, shorten the operation time, increase more economy benefit. With less material and workers’ touch time, sanitary conditions will get better. This series of bottled water production lines are mainly used for the non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with capacity 2000-3000BPH based on 200ml to 2000ml. This small and start up water prduction line is composed with blowing machine, water filling machine, water purification station, labeling machine and packing machine, all the machines you ever need for starting your new water business.

Production Line Details

Water Treatment System

The raw water is pumped into the raw water tank through a water pump, and the large particles and impurities in the water are filtered out through preliminary filtration (silica sand filter, activated carbon filter and precision filter) , and then use the RO system or Hollow system to remove microorganisms in the water. Finally, The UV sterilizer will sterilize the water and store it in a pure water tank.

Bottle Blowing Machine

This PET water bottle blow molding machine is specially designed to produce water bottle, PET bottle with high heat resistance for
hot filing package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has
slight shrinkage during hot filling.

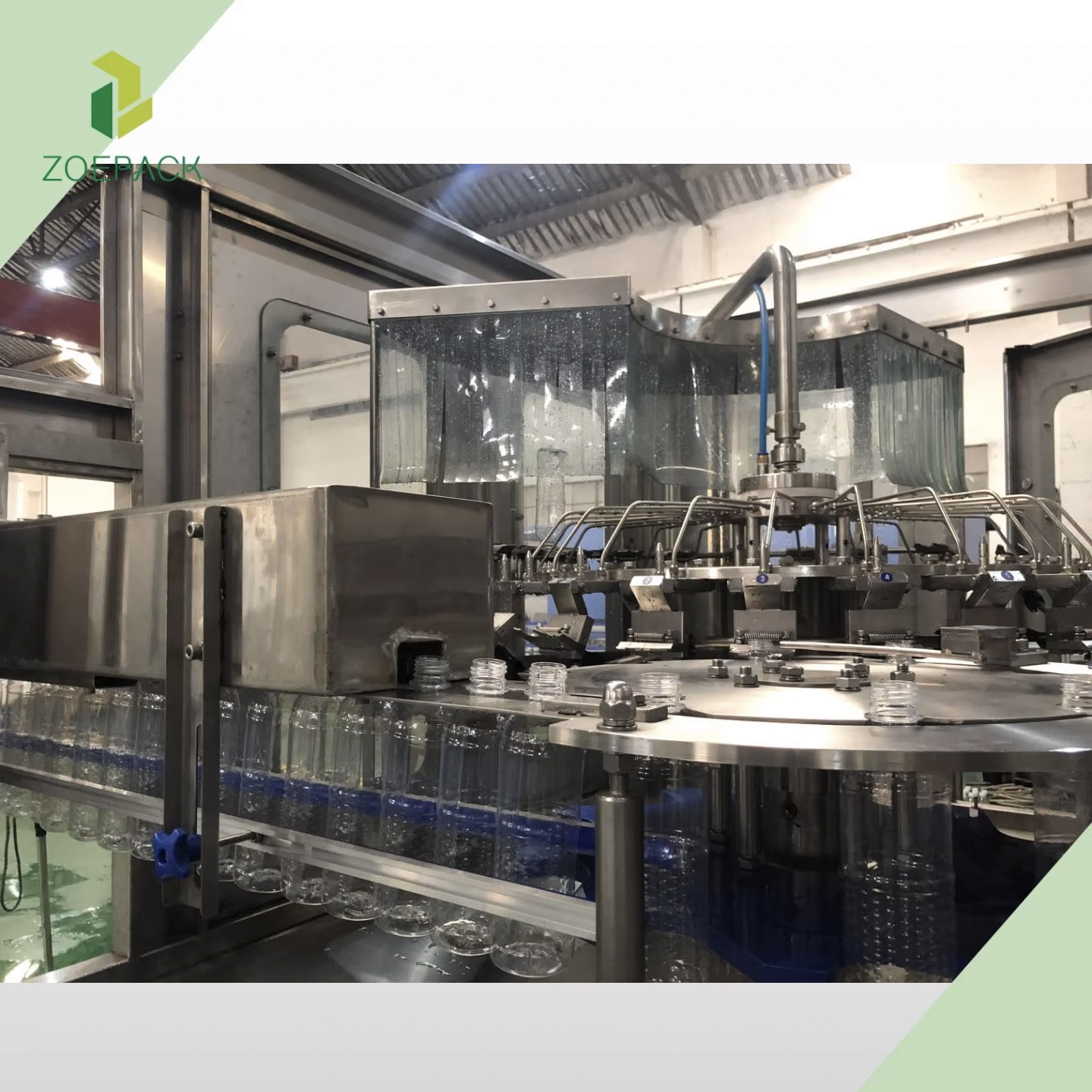

Water Filling Machine

Water filling machine is a fully automatic 3 in 1 machine integrates Rinsing-filling-capping process, latest technology brings the quite high efficiency, Whole Material in SS304 maintains high-grade quality; Upgraded system with easier operation; Suitable for the filling production from 100ml to 2000ml bottles, capacity in small quantity and large quantity can be optional as customer characteristics.

Advanced touch screen and PLC control system makes man-machine communication true. Use guiding roulette instead of simple rotary table to roll out the finished bottles, ensuring the stability and preventing the bottles from falling down.

Labeling Machine

Adopt different customer’s requirement, with different types of labeling machine, ensure the precision of labeling method and placement. Advanced technology for the operation system manufactured by worldwide famous supplier to make sure the delicate operation.

Description:

1. sticker labeling machine

2. shrink sleeve labeling machine

3. OPP labeling machine

Packing Machine

Proximity switch control film length. Touch screen, PLC system greatly increase facility movement reliability. Frequency converter speed adjust,two segment convey device. Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture. Group finished bottle water by film, like: 24=4*6 ,12=3*4 6=2*3. Case packing machine is also available.

Air Conveyor

Air conveyor is a bridge between blowing machine and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. The bottle is transferred to 3 in 1 machine through wind.

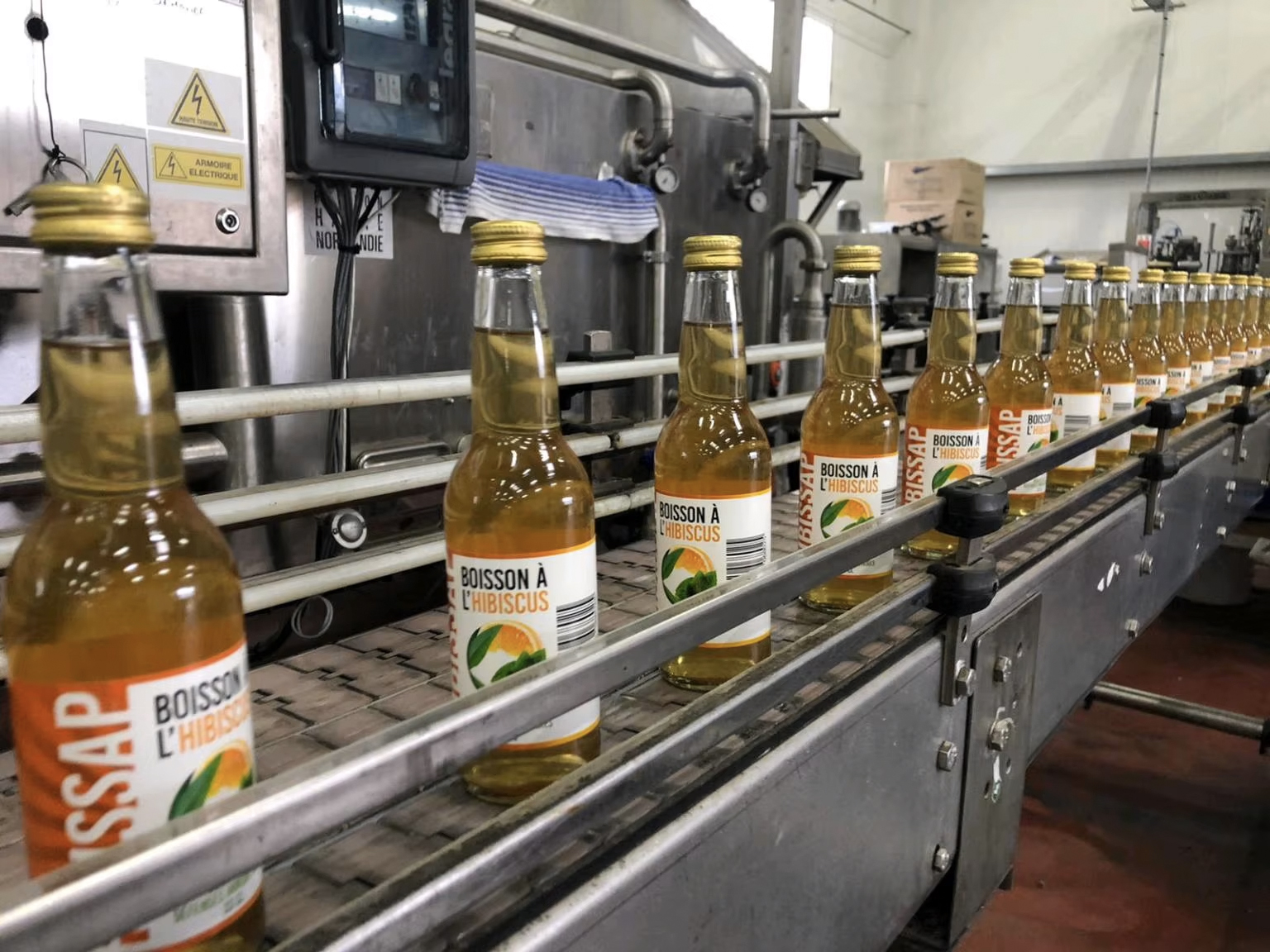

Flat Conveyor

The structure of the conveyor is designed by modular. The alternativeness of the parts are flexible, the structure is intensity, little noise and it is convenient to fix and maintenance it. It can be grouped according to the different capacity and bottle shape flexibly.

Customer Photos

FAQ

ZOEPACK

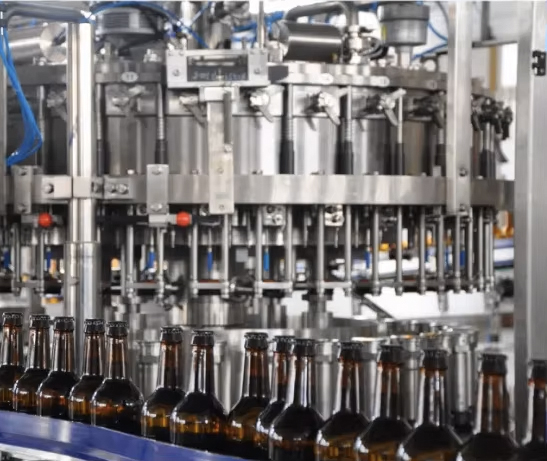

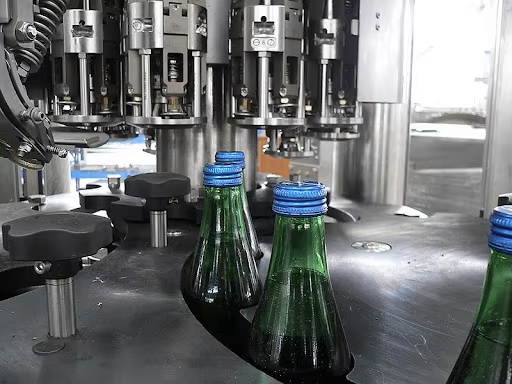

The High Security Glass Bottle Carbonated Beverage Drink Filling Machine is the ultimate solution for glass bottle beverage production. This machine has been designed with cutting-edge technology to offer the highest level of security for your carbonated beverage bottle filling process.

Manufactured utilizing the quality materials that are highest to make sure optimal performance and durability. The equipment is made to fill glass containers of various sizes and shapes with accuracy and precision. It offers an filling is advanced that automatically measures the amount of liquid to be filled in each bottle, eliminating the need for human intervention. The machine can additionally handle a number of carbonated beverages, including soft drinks, soda, and water is sparkling.

One ooutstanding options that come with this is its level is high of. The equipment has safety is several that ensure the safety of both the operator and the stuffing procedure. These features include a shield is protective covers the filling area to stop spills and a safety interlock system that stops the machine automatically if any breaches are detected.

Another standout feature of this product is its ease of usage. The machine is user-friendly and does not require any training is unique operate. The control panel is intuitive and easy to understand, enabling the operator to set up and control the process is filling ease.

Fashioned with hygiene at heart. The device is effortless to clean and keep, ensuring that your particular manufacturing line remains free and clean of contaminants. The filling nozzles are made of high-quality metal is stainless is resistant to corrosion and easy to clean.

Perfect small to medium-sized glass bottle beverage production lines. With its advanced technology, high amount of security, ease of use, and design is hygienic it is an exceptional investment for any beverage maker trying to improve their production lines.

The ZOEPACK High Security Glass Bottle Carbonated Beverage Drink Filling Machine is an excellent investment for any beverage manufacturer looking to improves their production lines and enhance their product qualities.
