Applications
Olive, rapeseed oil, sunflower oil, salad oil, edible oil,
palm oil,cod-liver oil, peanut oil, walnut oil
Technical Parameters
Heads | Suitable bottles | Capacity(bottle/hour) | Precise | Size of Machine(mm) | Power(kW) | Power source | Air source | |||||||
4 Heads | Can be customized | 500m≤1200BPH | ≤0.5% | 1600*1300*2200 | 3KW | 220/380V; 50/60Hz (Can be customized) | 0.6-0.8MPa | |||||||
6 Heads | 500m≤1600BPH | 1800*1300*2200 | 3KW | |||||||||||
8 Heads | 500m≤2500BPH | 2000*1300*2200 | 3KW | |||||||||||
12 Heads | 500m≤3000BPH | 2400*1300*2200 | 3.5KW | |||||||||||
16 Heads | 500m≤4000BPH | 2400*1400*2200 | 3.5KW | |||||||||||
20 Heads | 500m≤5000BPH | 2600*1400*2200 | 3.5KW | |||||||||||
Type | Suitable bottles | Capacity | Machine Size | Power | Power Supply | Precise | ||||||
2 Heads | length:160-3600mm width:100-300mm height:250-500mm neck diameter:≥Φ40mm (can be customized) | ≤0.5% | 2000*1700*2300mm | 2KW | AC220/380V 50-60Hz | ≤±0.5% | ||||||
4 Heads | 2500*1700*2300mm | 2KW | ||||||||||
6 Heads | 3500*1700*2300mm | 2KW | ||||||||||
8 Heads | 4500*1700*2300mm | 2.5KW | ||||||||||
Machine Details

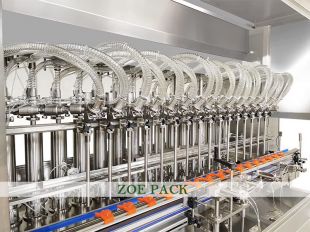

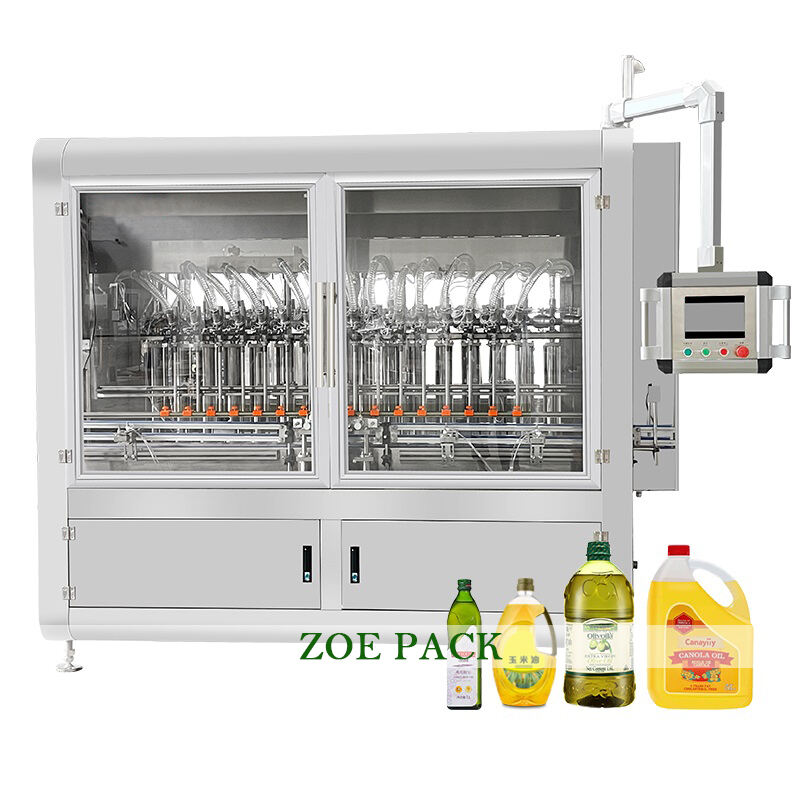

Automatic Edible Oil Filling Machine
1.Quantitative filling, adjustment for one key. Fast interface easy to be dismantled easy to wash, no drip,diving filling. The internal adjustment of the machine is simple. Short adjustment time for replacing bottle shape.
2.No blind angle three-way valve, long service life.
One key to clean residual material on piston and cylinder.
3.Choose different types and lengths of filling nozzles according to different filling materials.

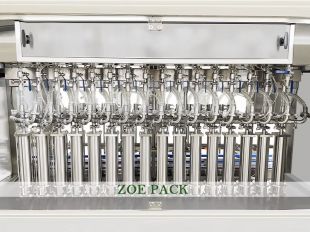

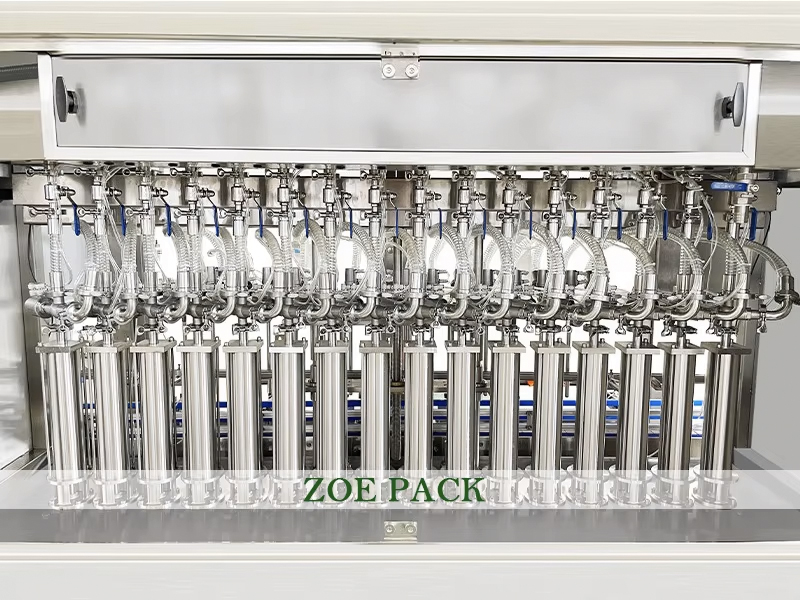

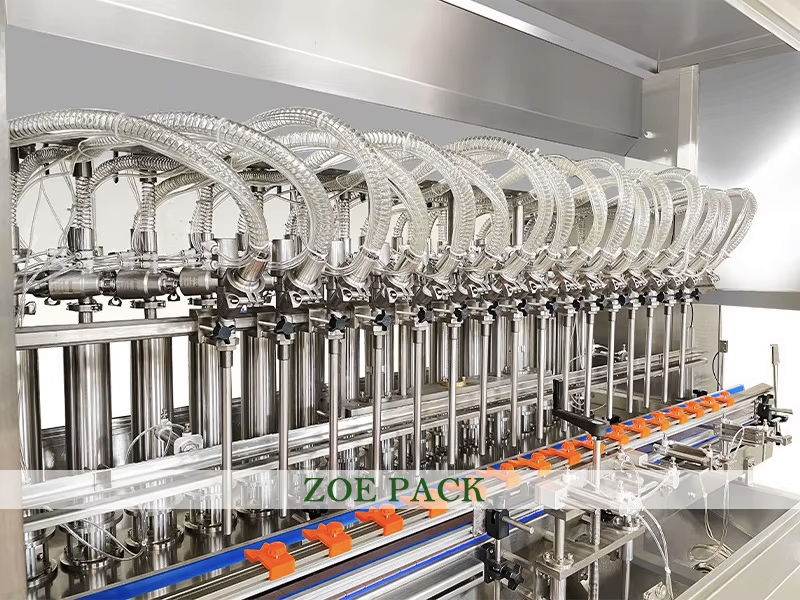

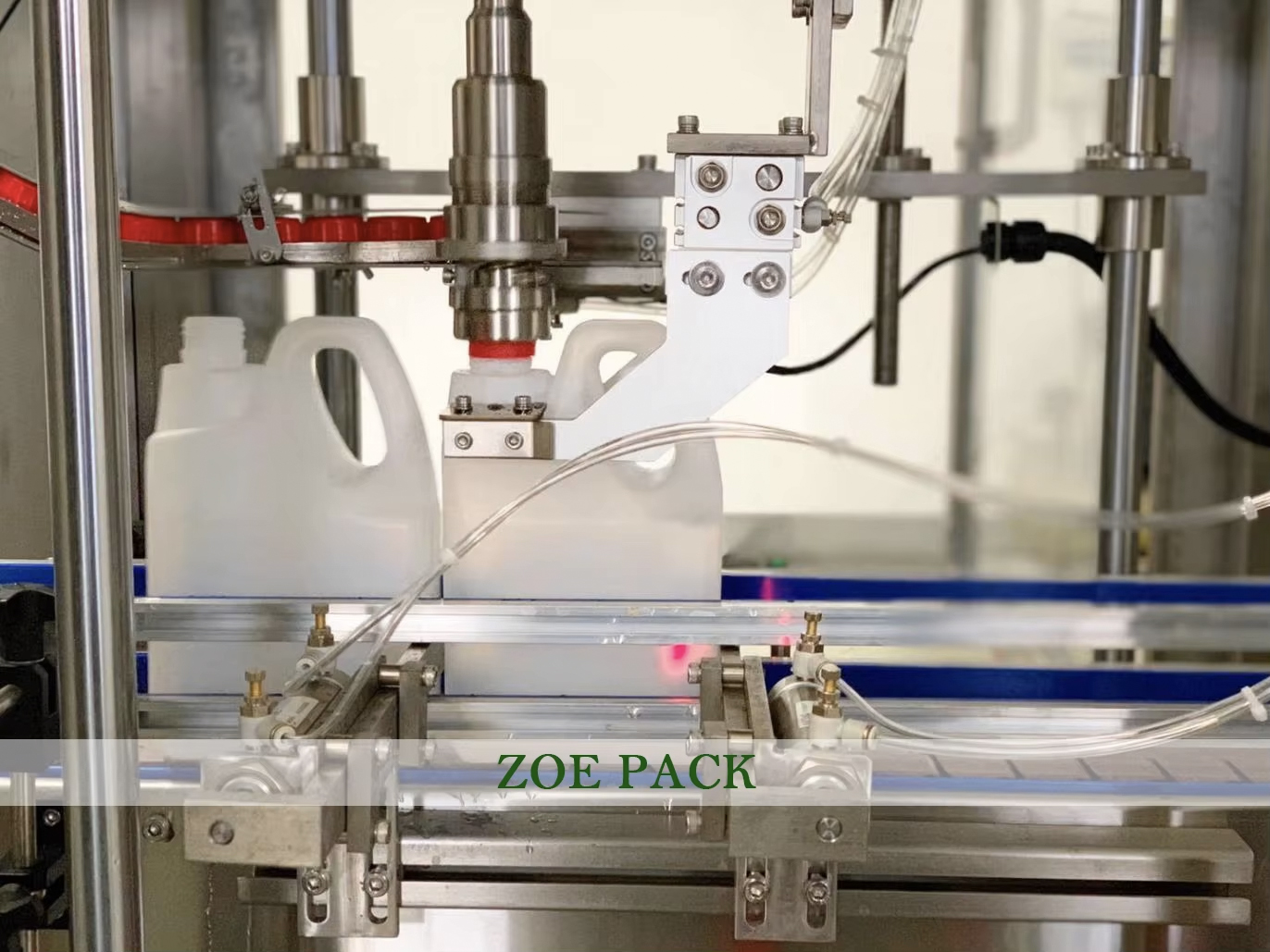

Filling Head
Advantage:
1.All pipe use quick-change connector 2.Height and space between filling heads can be changed quick and easy to operate
Full-automatic Single-head Capping Machine
1. This is Linear Capping machine running with conveyor automatically. 2. This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity instruction and pneumatic action. 3. Accurate measurement: adopt servo control system. 4. Bottles will be fixed by two cylinders and it can automatically arrange lid, taking lid and sending lid, it will grasp lid then capping under control of double-acting cylinder lifting stroke. 5. The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage.

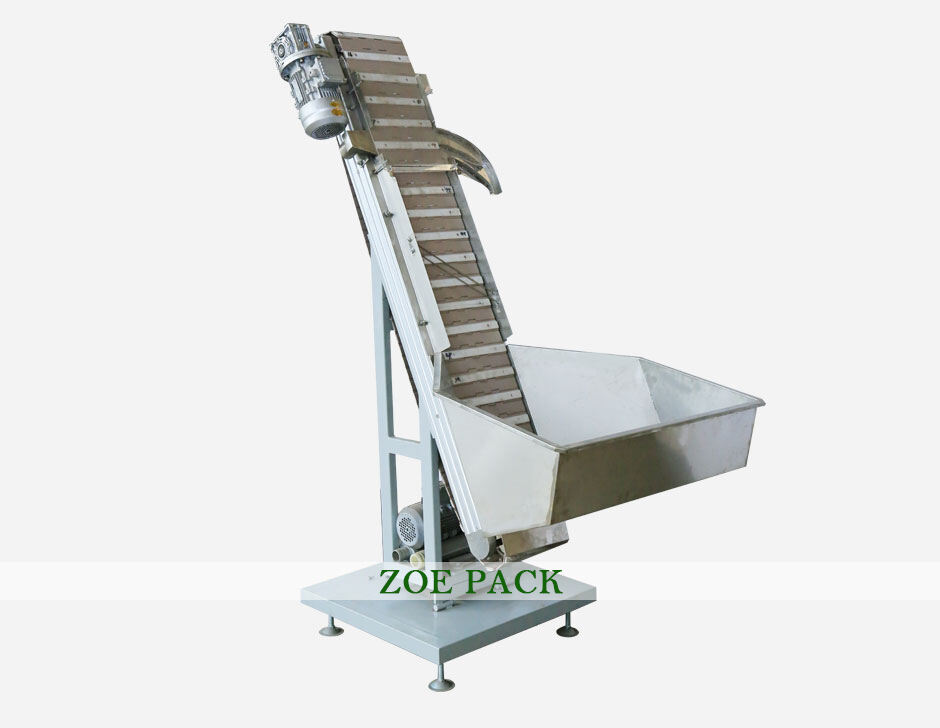

Automatic Cap loader
The machine is specially used in lifting lid to the lid-revolver for lid-revolving, is an auxiliary equipment of the lid-revolver. If making a few modifying, may be used in lifting and conveying of other hard objects, realizing one-machine multistage.
We also provide 20L oil weighing filling mahcine!

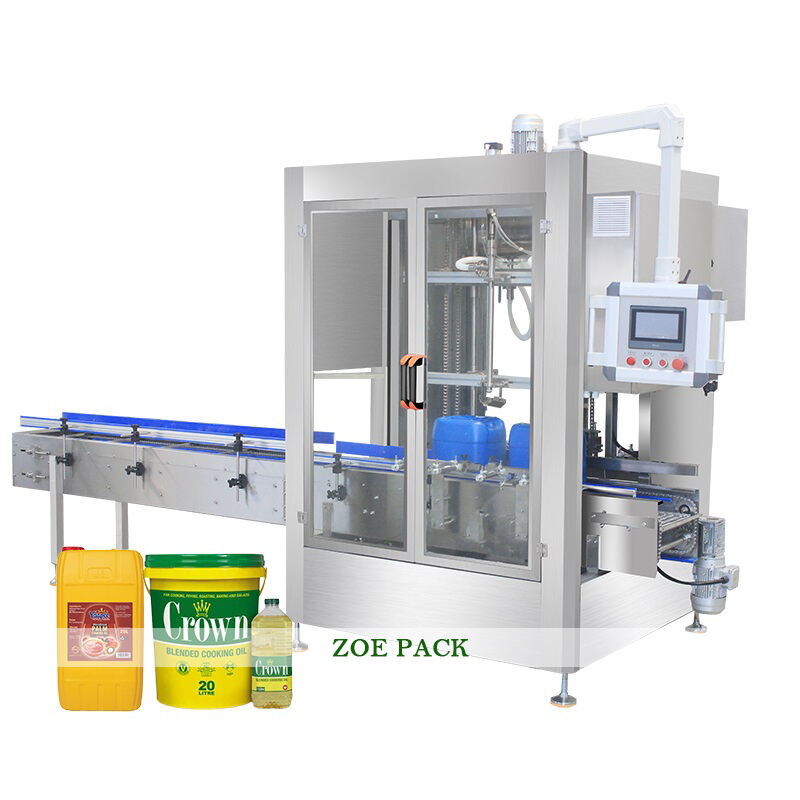

5-30L Oil Drum Weighing Filling Machine for pail, bucket and large barrel. It is easy to adjust and suitable for various of liquid 5-30KG filling. It is suitable for filling various liquid, such as edible oil, olive oil, cooking oil, peanut oil, sunflower oil and so on.

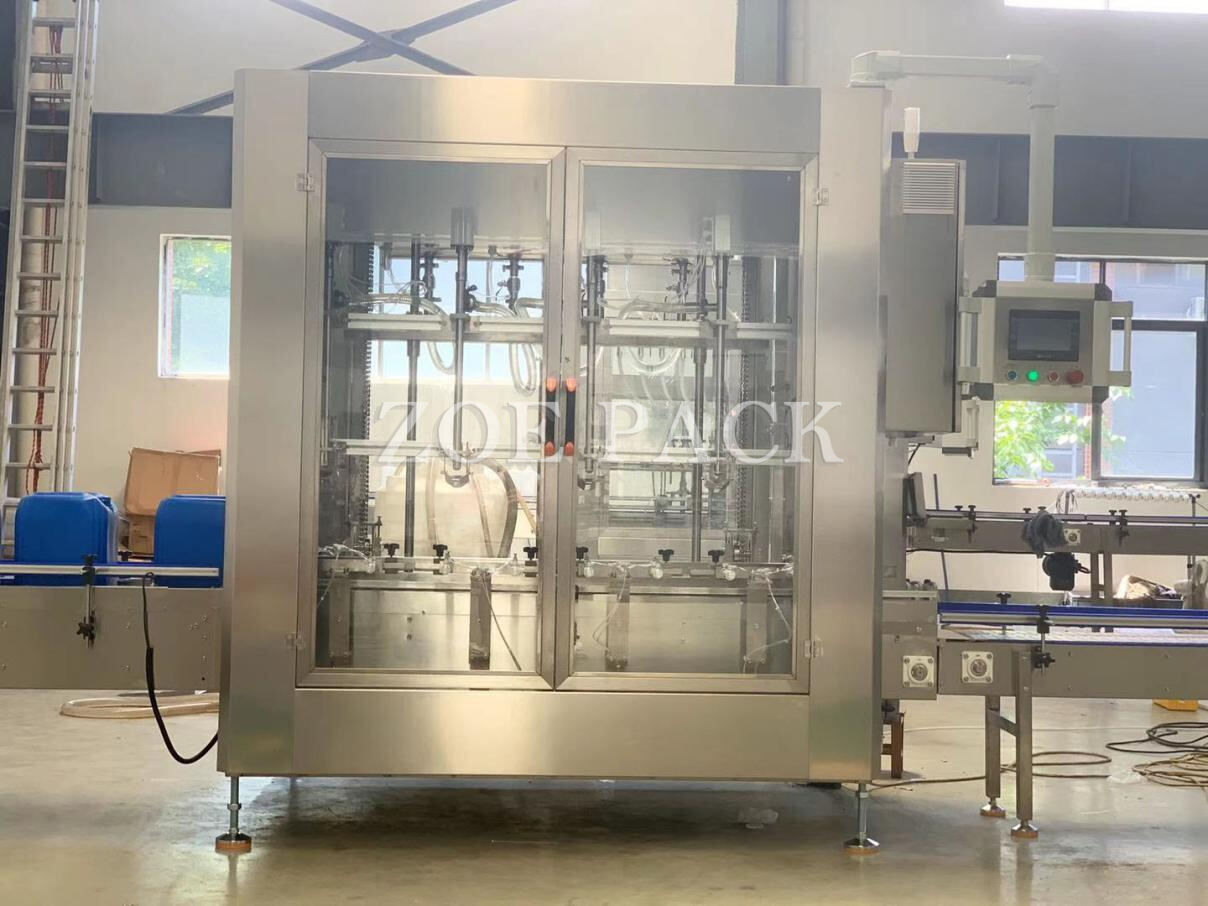

Full-automatic Weight Filler
1. Each filling head has the weigh and feedback system, each filling head can be regulated.
2. This type filler adopts PLC to control, touch screen control panel.
3. It applies dive method to fill and it reduces foam.
4. It automatically achieves counting inlet bottle, gravity filling, and bottle outlet. It is especially good for filling SL, edible oil and lubrication. It is a nice choice for foodstuff pharmacy, cosmetic and chemical industries. 5. Each filling head has the weigh and feedback system, each filling head can be regulated.

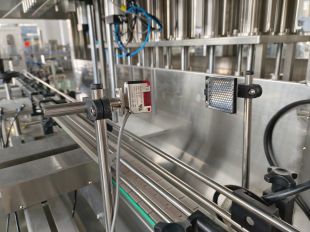

6. Photoelectric sensor, approximate switch and other electric elements are of the international famous brands. It ensures no container miss filling. The host machine will alarm if there is any container blocked.
Main Configuration | ||||||
No. | Name | Place of origin | Brand | |||
1 | PLC | Japan | Mitsubishi | |||
2 | Weight Sensor | Germany | HBM | |||
3 | Angle seat Valve | Taiwan | AIRTAC | |||
4 | Solenoid Valve | Taiwan | AIRTAC | |||
5 | Photo Sensor | Germany | SICK | |||
6 | Touch screen | Japan | WEINVEIW | |||
7 | Diving cylinder | Taiwan | AIRTAC | |||
8 | Power button | France | Schneider | |||
9 | Button | France | Schneider | |||
10 | Magnetic switch | Taiwan | AIRTAC | |||
11 | oil-water separator | Taiwan | SHAKO | |||
Company Profile
Zoe Pack(suzhou) CO.,Ltd.
We are a professional food and beverage machinery manufacture. ZOE PACK has its own special advantages in the research, design and manufacture and offers technical support to customers. We provide perfect after-sales service.
Our Beverage Machinery includes carbonated soft drink production lines; none-areated beverage bottled filling production lines and juice / tea beverage / wine bottled / barreled filling production lines. You are welcome to cooperate with us.
This series of bottle water production lines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with optional capacity from is 2000BPH based on 200ml to 2000ml.
Customer Photos
FAQ
|

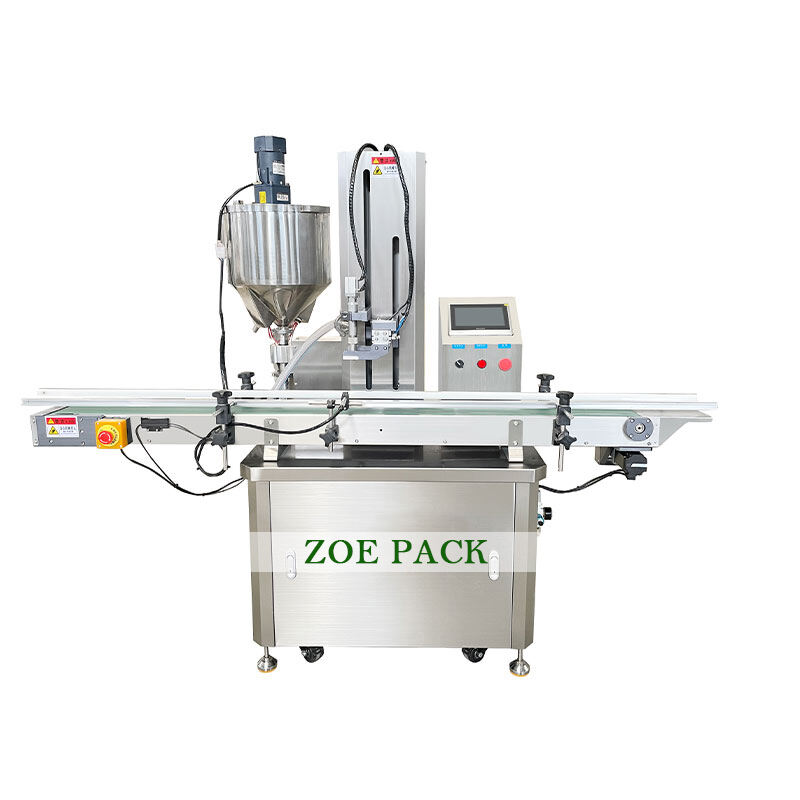

ZOEPACK is proud to present its Linear Type Mustard Oil Lubricant Bottle Edible Oil Salad Olive Vegetable Peanut Soybean Oil Filling Machine, a versatile and efficient piece of equipment designed to meet the needs of various industries without compromising quality and efficiency.
This device is good for filling bottles with mustard oil, lubricant, edible oil, salad oil, olive oil, veggie oil, peanut oil, soybean oil, and just about every other fluid or semi-liquid product it's advisable to pack. The filling range can be adjusted from 100ml to 5000ml, which gives you a lot of room to experiment with different volumes and meals.
It operates having a lot of degree ensuring that every bottle receives the exact same amount of product. The filling rate can be modified to fit your production demands, including 1000bp/h to 5000bp/h.
Moreover, it is not hard to use, with a simple control that lets you adjust the settings and monitor the filling process. The bottle system is automated filling, therefore you can save lots of time and reduce the risk of errors or accidents.
This item was manufactured from high-quality materials, which ensures it'll last for a long time without wearing down or requiring constant maintenance. It comes with a food-grade stainless that was manufactured to guarantee the purity and security of one's liquid products.
It is also flexible and can be modified to suit your specific needs. You can choose from different stuffing nozzles, bottle sizes, as well as other features to make a solution that was tailored to fulfills the needs and expectations you have.
Overall, the Linear Type Mustard Oil Lubricant Bottle Edible Oil Salad Olive Vegetable Peanut Soybean Oil Filling Machine by ZOEPACK is an excellent investment that will pay off in the long run.
