Company Profile

Zoe Pack(suzhou) CO.,Ltd.

We are a professional water and beverage machinery manufacture. ZOE PACK has its own special advantages in the research, design and manufacture and offers technical support to customers. We provide perfect after-sales service.

Our Beverage Machinery includes carbonated soft drink production lines; none-areated beverage bottled filling production lines and juice / tea beverage / wine bottled / barreled filling production lines. You are welcome to cooperate with us.

This series of bottle water production lines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with optional capacity from is 2000BPH based on 200ml to 2000ml.

Machine Detail

Complete Line

From the beginning of Water treatment system to the end of bottle packing. One-stop integrated operation reduce the water wastage, shorten the operation time, increase more economy benefit. With less material and workers’ touch time, sanitary conditions will get better. This series of bottled water production lines are mainly used for the non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with capacity 2000-3000BPH based on 200ml to 2000ml. This small and start up water prduction line is composed with blowing machine, water filling machine, water purification station, labeling machine and packing machine, all the machines you ever need for starting your new water business.

Except small water bottling line, we also provide:

Gallon water filling,  Beer filling, Juice filling, Can filling

Production Line Details

Water Treatment System

The raw water is pumped into the raw water tank through a water pump, and the large particles and impurities in the water are filtered out through preliminary filtration (silica sand filter, activated carbon filter and precision filter) , and then use the RO system or Hollow system to remove microorganisms in the water. Finally, The UV sterilizer will sterilize the water and store it in a pure water tank.

Bottle Blowing Machine

This PET water bottle blow molding machine is specially designed to produce water bottle, PET bottle with high heat resistance for
hot filing package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has
slight shrinkage during hot filling.

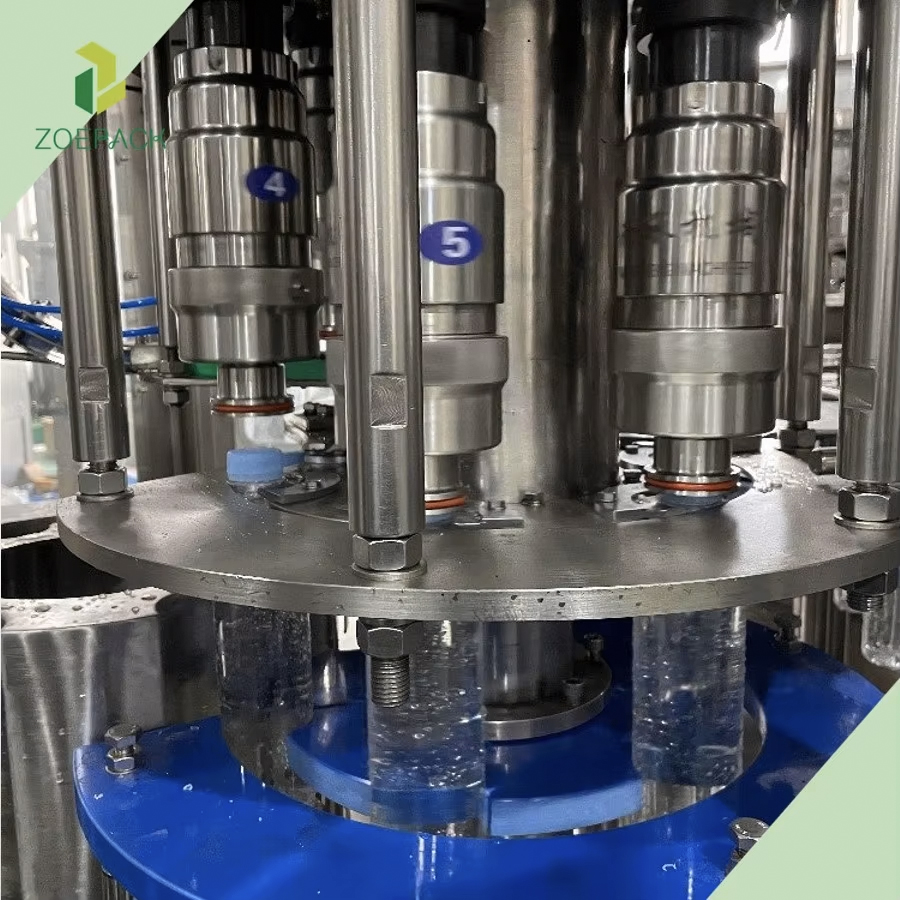

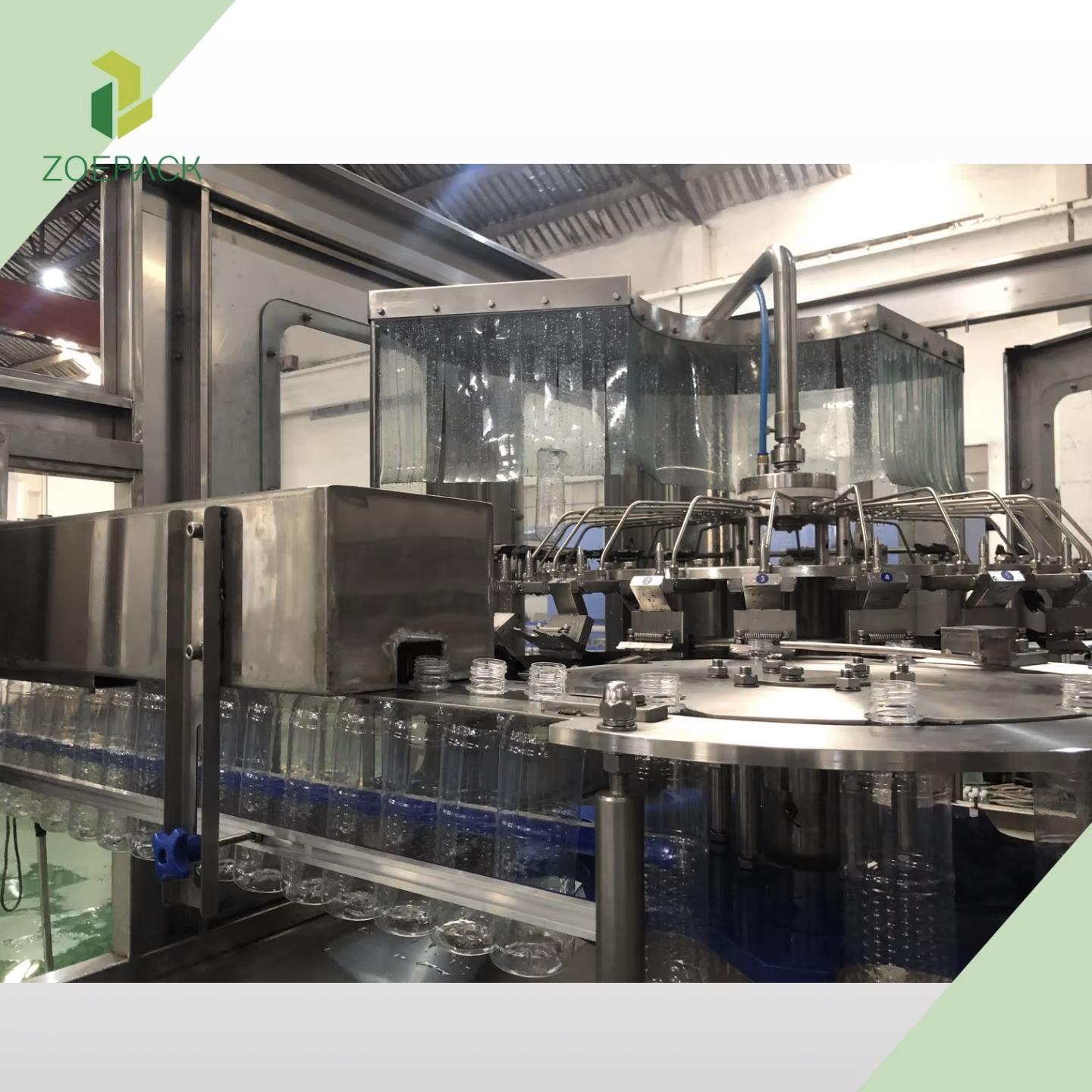

Water Filling Machine

Water filling machine is a fully automatic 3 in 1 machine integrates Rinsing-filling-capping process, latest technology brings the quite high efficiency, Whole Material in SS304 maintains high-grade quality; Upgraded system with easier operation; Suitable for the filling production from 100ml to 2000ml bottles, capacity in small quantity and large quantity can be optional as customer characteristics.

Advanced touch screen and PLC control system makes man-machine communication true. Use guiding roulette instead of simple rotary table to roll out the finished bottles, ensuring the stability and preventing the bottles from falling down.

Labeling Machine

Adopt different customer’s requirement, with different types of labeling machine, ensure the precision of labeling method and placement. Advanced technology for the operation system manufactured by worldwide famous supplier to make sure the delicate operation.

Description:

1. sticker labeling machine

2. shrink sleeve labeling machine

3. OPP labeling machine

Packing Machine

Proximity switch control film length. Touch screen, PLC system greatly increase facility movement reliability. Frequency converter speed adjust,two segment convey device. Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture. Group finished bottle water by film, like: 24=4*6 ,12=3*4 6=2*3. Case packing machine is also available.

Air Conveyor

Air conveyor is a bridge between blowing machine and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. The bottle is transferred to 3 in 1 machine through wind.

Flat Conveyor

The structure of the conveyor is designed by modular. The alternativeness of the parts are flexible, the structure is intensity, little noise and it is convenient to fix and maintenance it. It can be grouped according to the different capacity and bottle shape flexibly.

Customer Photos

FAQ

ZOEPACK

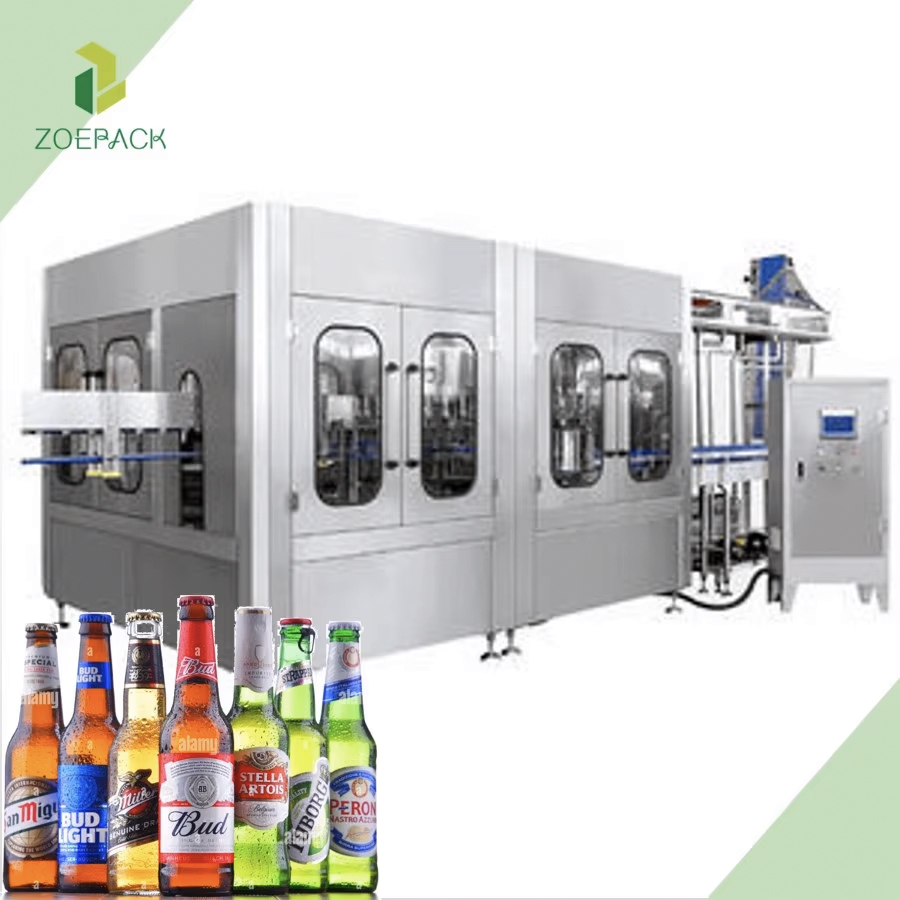

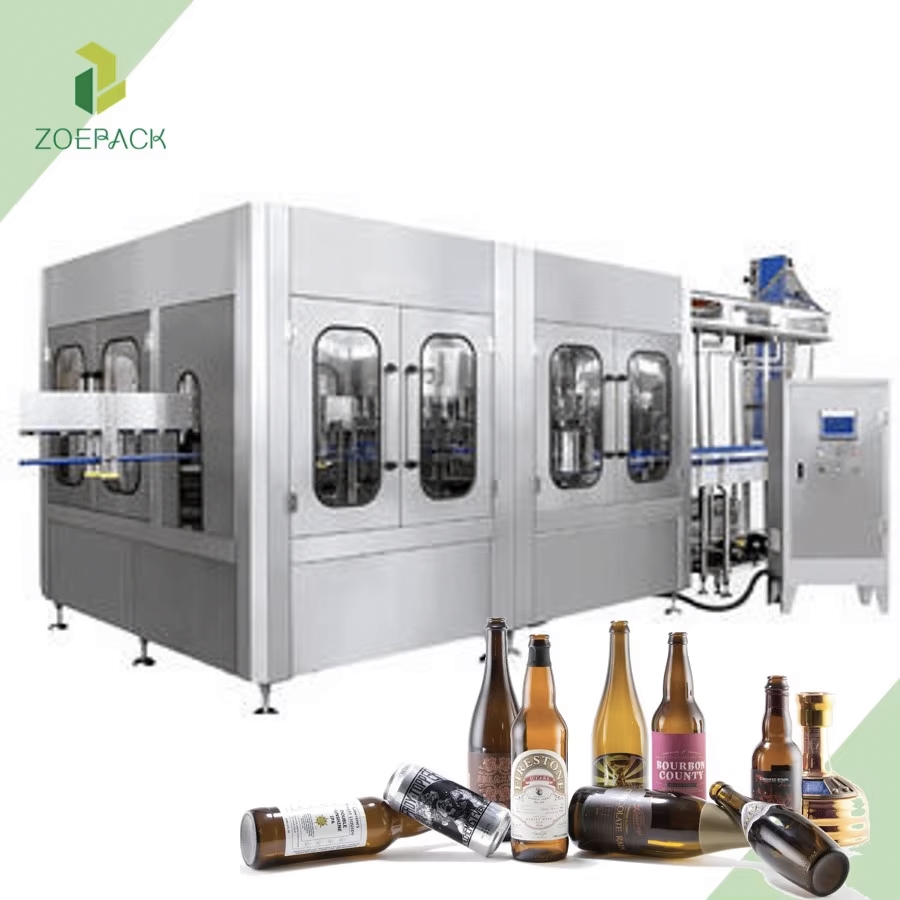

The Rotary Type Automatic 3 in 1 Beer Glass Bottle Washing Filling Capping Machine Beer Filling Machine, also referred to since the ZOEPACK Beer Filling Machine, is the clear perfect answer filling and packaging your beer products quickly and effortlessly.

This Rotary Type Automatic 3 in 1 Beer Glass Bottle Washing Filling Capping Machine Beer Filling Machine is designed with quality materials to guarantee durable performance using its metal construction making this simple to clean and maintain. It is a reliable machine that may help you save money and time in the very run long.

The Rotary Type Automatic 3 in 1 Beer Glass Bottle Washing Filling Capping Machine Beer Filling Machine features a rotary design allows for a smooth and continuous flow of beer bottles through the washing, filling, and capping processes. You can be able to create a large volume of in a short timeframe boosting your manufacturing price and fundamentally boosting your income.

The washing process is the to stage begin device. It is designed to clean and sanitize the alcohol bottles before they have been filled with the goods. With the ZOEPACK Rotary Type Automatic 3 in 1 Beer Glass Bottle Washing Filling Capping Machine Beer Filling Machine, you will make sure that the washing procedure is thorough and therefore all dust and germs are removed from the containers.

Once the bottles are washed, they are managed to move on to the filling stage. The Rotary Type Automatic 3 in 1 Beer Glass Bottle Washing Filling Capping Machine Beer Filling Machine runs from the exact filling system ensure that each bottle is filled up with the particular standard of beer needed. It shall help to avoid wastage and guarantees the consistency associated with item.

Finally, the capping stage of Rotary Type Automatic 3 in 1 Beer Glass Bottle Washing Filling Capping Machine Beer Filling Machine secures the container with a cap to make sure the alcohol remains carbonated and fresh. The equipment provides efficient and accurate capping with all the caps being applied securely to the bottles without the leakages.

The ZOEPACK Rotary Type Automatic 3 in 1 Beer Glass Bottle Washing Filling Capping Machine Beer Filling Machine is ideal for tiny to companies alcohol that are medium-sized. It is user-friendly by having an easy-to-use screen helping to make operating it simple and easy.
