Ginger Carrot Apple Strawberry Blueberry Orange Fresh Fruit Juice Bottling Machine

Get a Quote Inquiry

Description

Applications

Technical Parameters

Washing, Filling, Capping 3-in-1 Unit for Water
Model	Rising heads	Filling heads	Dapping heads	Capacity (BPH)	Motor Power(KW)	Dimensions(mm)	Weight (KG)
ZP 16-12-6	16	12	6	4000	2.2	230016002500	2600
ZP 18-18-6	18	18	6	5000	3.5	260019202550	3500
ZP 24-24-8	24	24	8	10000	4.5	310022002800	4650
ZP 32-32-10	32	32	10	12000	6	385030002850	6800
ZP 40-40-12	40	40	12	15000	7.5	485038002750	8500
ZP 50-50-15	50	50	15	18000	9.5	575035502750	10000
ZP 60-60-15	60	60	15	25000	11.2	650055002750	12000
ZP 70-70-18	70	70	18	28000	15	680048002850	15000
ZP 80-80-18	80	80	18	35000	18	720050002850	18000

Click here to send us messages >> Send Inquiry...

Machine Detail

Company Profile

Zoe Pack(suzhou) CO.,Ltd.

We are a professional water and beverage machinery manufacture. ZOE PACK has its own special advantages in the research, design and manufacture and offers technical support to customers. We provide perfect after-sales service.

Our Beverage Machinery includes carbonated soft drink production lines; none-areated beverage bottled filling production lines and juice / tea beverage / wine bottled / barreled filling production lines. You are welcome to cooperate with us.

This series of bottle water production lines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with optional capacity from is 2000BPH based on 200ml to 2000ml.

Except small water bottling line, we also provide:

Gallon water filling, Beer filling, Juice filling, Can filling

Complete Line

From the beginning of Water treatment system to the end of bottle packing. One-stop integrated operation reduce the water wastage, shorten the operation time, increase more economy benefit. With less material and workers’ touch time, sanitary conditions will get better. This series of bottled water production lines are mainly used for the non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with capacity 2000-3000BPH based on 200ml to 2000ml. This small and start up water prduction line is composed with blowing machine, water filling machine, water purification station, labeling machine and packing machine, all the machines you ever need for starting your new water business.

Production Line Details

Water Treatment System

The raw water is pumped into the raw water tank through a water pump, and the large particles and impurities in the water are filtered out through preliminary filtration (silica sand filter, activated carbon filter and precision filter) , and then use the RO system or Hollow system to remove microorganisms in the water. Finally, The UV sterilizer will sterilize the water and store it in a pure water tank.

Bottle Blowing Machine

This PET water bottle blow molding machine is specially designed to produce water bottle, PET bottle with high heat resistance for
hot filing package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has
slight shrinkage during hot filling.

Filling Machine

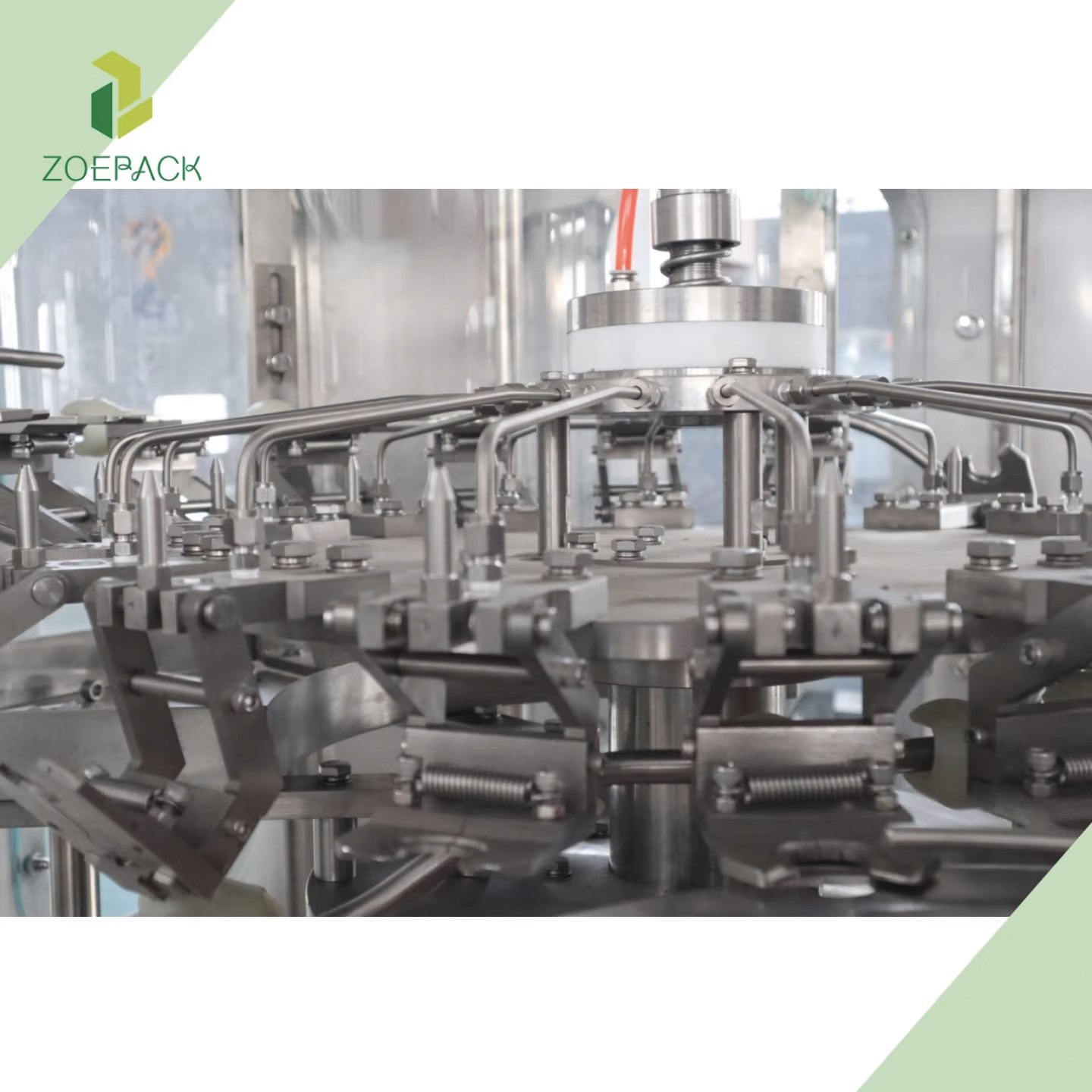

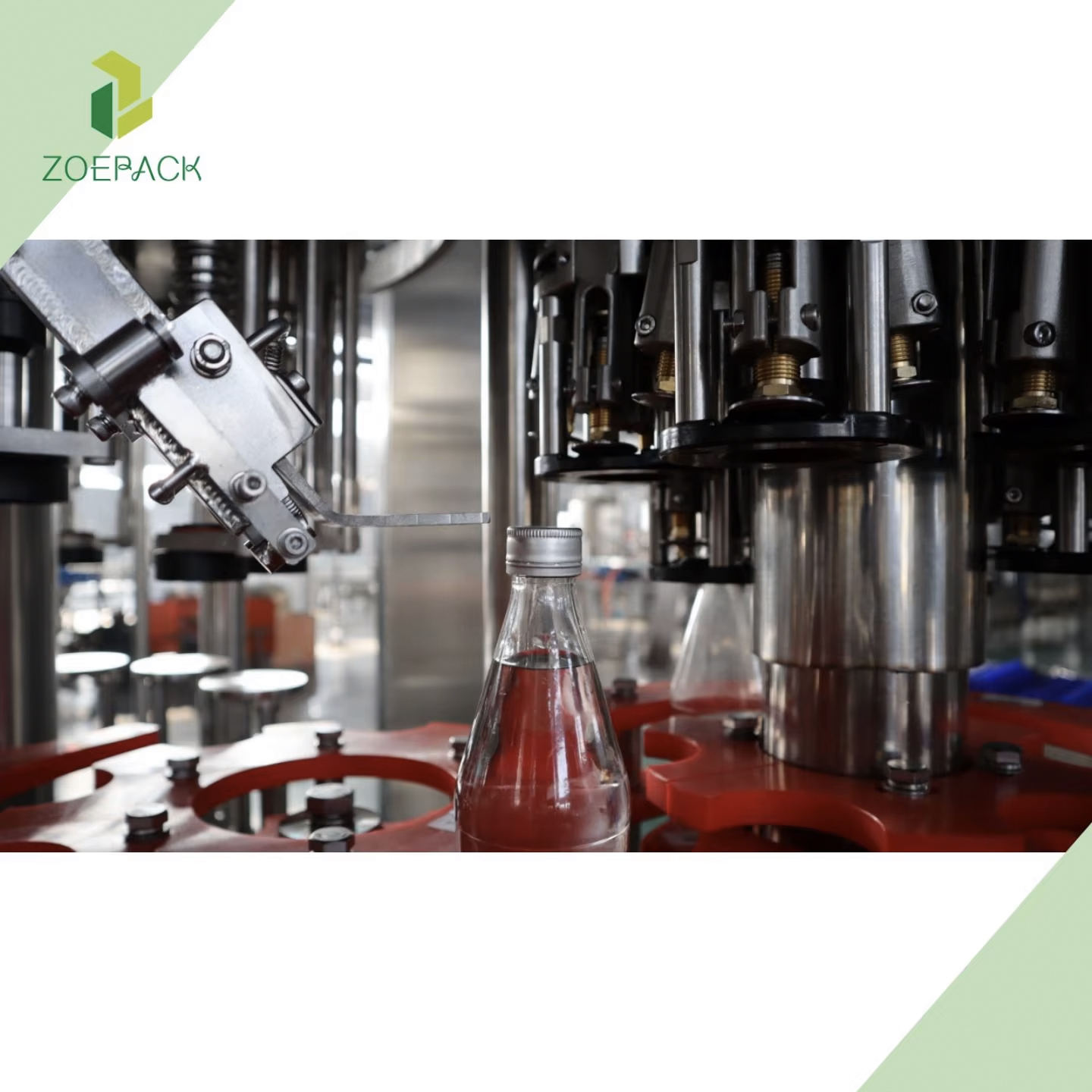

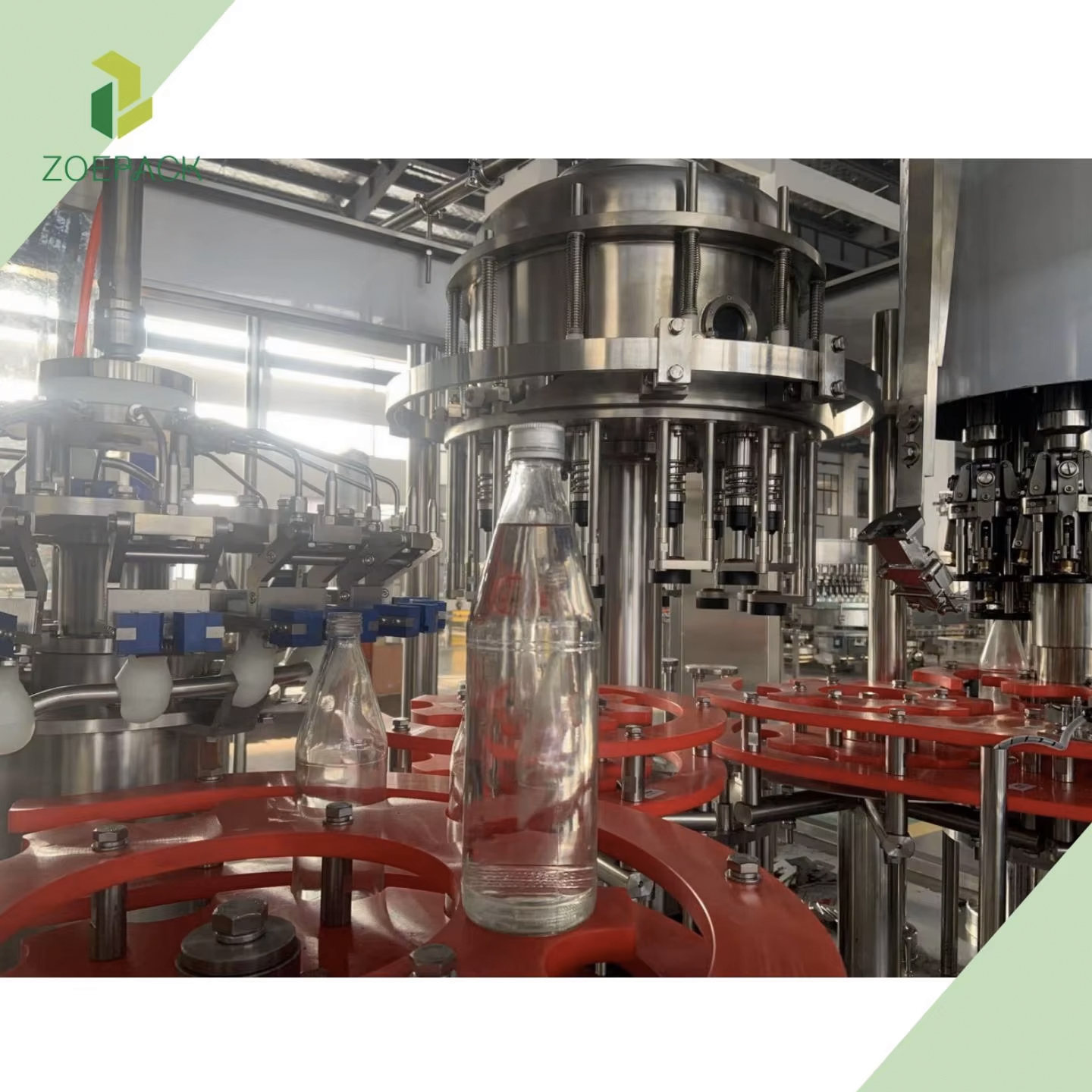

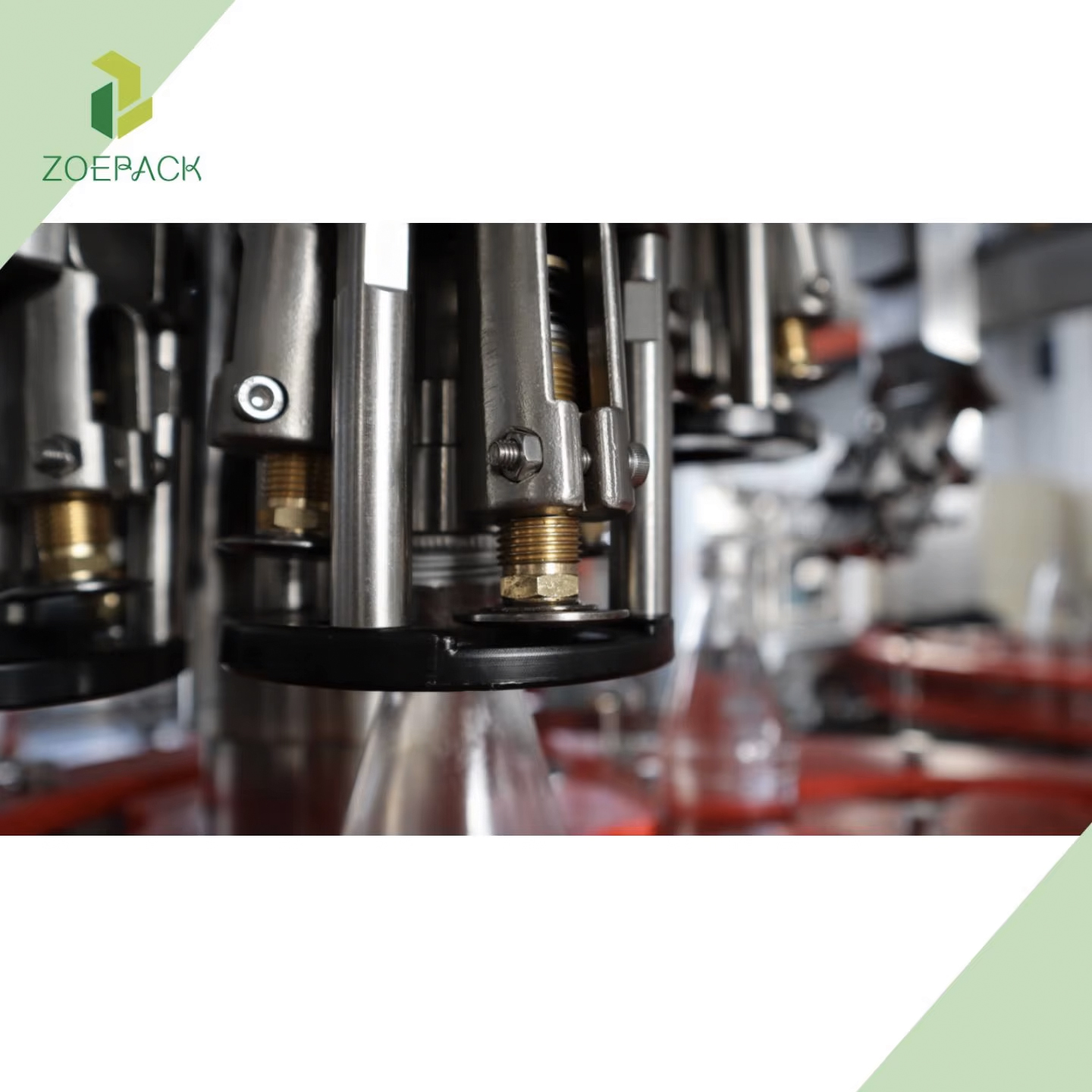

Fully automatic 3 in 1 machine integrates Rinsing-filling-capping process, latest technology brings the quite high efficiency, Whole Material in SS304 maintains high-grade quality; Upgraded system with easier operation; Suitable for the filling production from 100ml to 2000ml bottles, capacity in small quantity and large quantity can be optional as customer characteristics.

Advanced touch screen and PLC control system makes man-machine communication true. Use guiding roulette instead of simple rotary table to roll out the finished bottles, ensuring the stability and preventing the bottles from falling down.

Labeling Machine

Adopt different customer’s requirement, with different types of labeling machine, ensure the precision of labeling method and placement. Advanced technology for the operation system manufactured by worldwide famous supplier to make sure the delicate operation.

Description:

1. sticker labeling machine

2. shrink sleeve labeling machine

3. OPP labeling machine

Packing Machine

Proximity switch control film length. Touch screen, PLC system greatly increase facility movement reliability. Frequency converter speed adjust,two segment convey device. Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture. Group finished bottle water by film, like: 24=4*6 ,12=3*4 6=2*3. Case packing machine is also available.

Air Conveyor

Air conveyor is a bridge between blowing machine and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. The bottle is transferred to 3 in 1 machine through wind.

Flat Conveyor

The structure of the conveyor is designed by modular. The alternativeness of the parts are flexible, the structure is intensity, little noise and it is convenient to fix and maintenance it. It can be grouped according to the different capacity and bottle shape flexibly.

Customer Photos

FAQ

Q: Can we visit your factory?

Of course, we are located in Zhangjiagang City, which is very close to Shanghai. The high-speed rail is only one hour away from Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up at the airport. (Or Hongqiao International Airport.) We also provide online video access.

Q: How can we get the exact price of plastic machine?

If possible, please contact us and provide product size, shape, annual quantity, and photos. We can provide a quotation to recommend our machine model.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We provide manual guidance and engineer training before loading, and24-houronline support, video technical support, or on-site installation assistance after shipment.

Q: What is the lead time?

For customized machines, it takes approximately60days after deposit. For inventory machines, fast shipping. (The actual production cycle may vary depending on the degree of customization.)

Q: What is the warranty period for your machine ?

12 monthswarranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's ZOE PACK's advantage?

ZOE PACK provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

ZOE PACKwill be your reliable friend in China, and we will always do our best to give you max support!

ZOEPACK

The Ginger Carrot Apple Strawberry Blueberry Orange Fresh Fruit Juice Bottling Machine is a game-changer on the juice-making market. This innovative method been created to assist juice makers conserve effort and time while keeping the product quality and freshness concerning the juices. Using this particular bottling, you can now produce large quantities of top-notch juice right away.

The Ginger Carrot Apple Strawberry Blueberry Orange Fresh Fruit Juice Bottling Machine fromZOEPACKfeatures an automatic filling that guarantees your bottles are packed with the proper quantity of juice each and every time., it offers an effective and efficient motor can fill to 200 containers each hour, making the process fast and efficient. This particular aspect is for sale in handy for people who own juice pubs or those folks who are producing for commercial purposes.

The Ginger Carrot Apple Strawberry Blueberry Orange Fresh Fruit Juice Bottling Machine is produced from top-notch durable materials and long-lasting, meaning you can use it for years with no need to change any components. It comes with a user-friendly control which means it is effortless to run. with only some clicks, you will adjust the filling level control the speed of this device.

The best features of this Ginger Carrot Apple Strawberry Blueberry Orange Fresh Fruit Juice Bottling Machine are that it can bottle different flavors of fruit juice. Its five-in-one design assist you to mix and match fruits being different producing blends unique customers will cherish. You are able to Ginger-Carrot, Apple-Strawberry, Blueberry-Orange, or any other blend of fruits that you want.

Moreover, the Ginger Carrot Apple Strawberry Blueberry Orange Fresh Fruit Juice Bottling Machine is easy to clean and continue maintaining, thank you to its sleek design. The unit's easy-to-clean parts, including the bottling nozzles even though the feeding hopper allow it to be effortless to avoid contamination through the bottling process.
