Company Profile
Zoe Pack(suzhou) CO.,Ltd.
We are a professional food and beverage machinery manufacture. ZOE PACK has its own special advantages in the research, design and manufacture and offers technical support to customers. We provide perfect after-sales service.
Our Beverage Machinery includes carbonated soft drink production lines; none-areated beverage bottled filling production lines and juice / tea beverage / wine bottled / barreled filling production lines. You are welcome to cooperate with us.
This series of bottle water production lines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with optional capacity from is 2000BPH based on 200ml to 2000ml.
Technical Parameters
0.1-5L Cooking oil/Machine oil/Drinking oil | ||||||||||||||
Heads | Suitable bottles | Capacity(bottle/hour) | Precise | Size of Machine(mm) | Power(kW) | Power source | Air source | |||||||
4 Heads | Can be customized | 500m≤1200BPH | ≤0.5% | 1600*1300*2200 | 3KW | 220/380V; 50/60Hz (Can be customized) | 0.6-0.8MPa | |||||||
6 Heads | 500m≤1600BPH | 1800*1300*2200 | 3KW | |||||||||||
8 Heads | 500m≤2500BPH | 2000*1300*2200 | 3KW | |||||||||||
12 Heads | 500m≤3000BPH | 2400*1300*2200 | 3.5KW | |||||||||||
16 Heads | 500m≤4000BPH | 2400*1400*2200 | 3.5KW | |||||||||||
20 Heads | 500m≤5000BPH | 2600*1400*2200 | 3.5KW | |||||||||||
5-20L Oil Jerry Can | ||||||||||||
Type | Suitable bottles | Capacity | Machine Size | Power | Power Supply | Precise | ||||||
2 Heads | length:160-3600mm width:100-300mm height:250-500mm neck diameter:≥Φ40mm (can be customized) | ≤0.5% | 2000*1700*2300mm | 2KW | AC220/380V 50-60Hz | ≤±0.5% | ||||||
4 Heads | 2500*1700*2300mm | 2KW | ||||||||||
6 Heads | 3500*1700*2300mm | 2KW | ||||||||||
8 Heads | 4500*1700*2300mm | 2.5KW | ||||||||||
Machine Detail
Applications
Machine Details

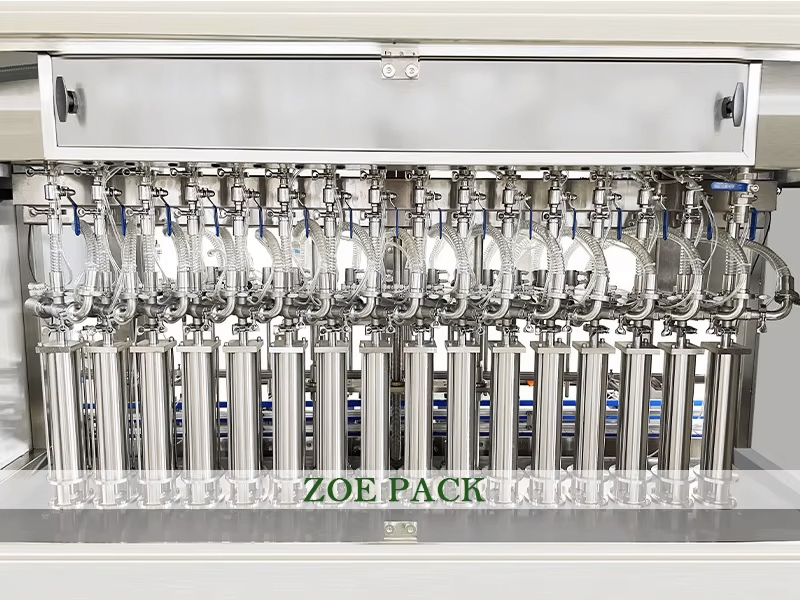

Automatic Edible Oil Filling Machine
1.Quantitative filling, adjustment for one key. Fast interface easy to be dismantled easy to wash, no drip,diving filling. The internal adjustment of the machine is simple. Short adjustment time for replacing bottle shape.
2.No blind angle three-way valve, long service life.
One key to clean residual material on piston and cylinder.
3.Choose different types and lengths of filling nozzles according to different filling materials.

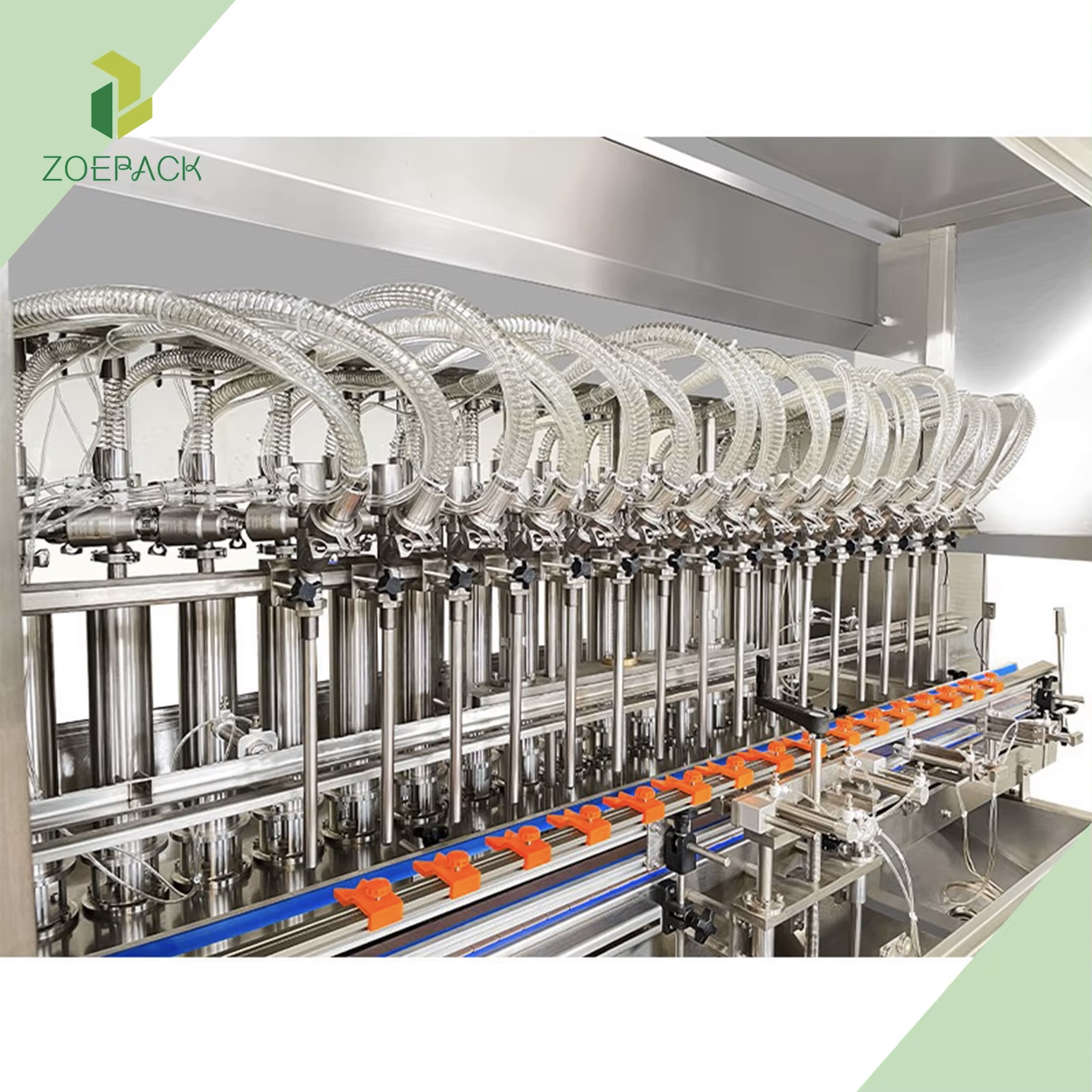

Full-automatic Weight Filler
1. Each filling head has the weigh and feedback system, each filling head can be regulated.
2. This type filler adopts PLC to control, touch screen control panel.
3. It applies dive method to fill and it reduces foam.
4. It automatically achieves counting inlet bottle, gravity filling, and bottle outlet. It is especially good for filling SL, edible oil and lubrication. It is a nice choice for foodstuff pharmacy, cosmetic and chemical industries. 5. Each filling head has the weigh and feedback system, each filling head can be regulated.
6. Photoelectric sensor, approximate switch and other electric elements are of the international famous brands. It ensures no container miss filling. The host machine will alarm if there is any container blocked.
Main Configuration | ||||||
No. | Name | Place of origin | Brand | |||
1 | PLC | Japan | Mitsubishi | |||
2 | Weight Sensor | Germany | HBM | |||
3 | Angle seat Valve | Taiwan | AIRTAC | |||
4 | Solenoid Valve | Taiwan | AIRTAC | |||
5 | Photo Sensor | Germany | SICK | |||
6 | Touch screen | Japan | WEINVEIW | |||
7 | Diving cylinder | Taiwan | AIRTAC | |||
8 | Power button | France | Schneider | |||
9 | Button | France | Schneider | |||
10 | Magnetic switch | Taiwan | AIRTAC | |||
11 | oil-water separator | Taiwan | SHAKO | |||
Filling Head
Advantage: 1.All pipe use quick-change connector 2.Height and space between filling heads can be changed quick and easy to operate

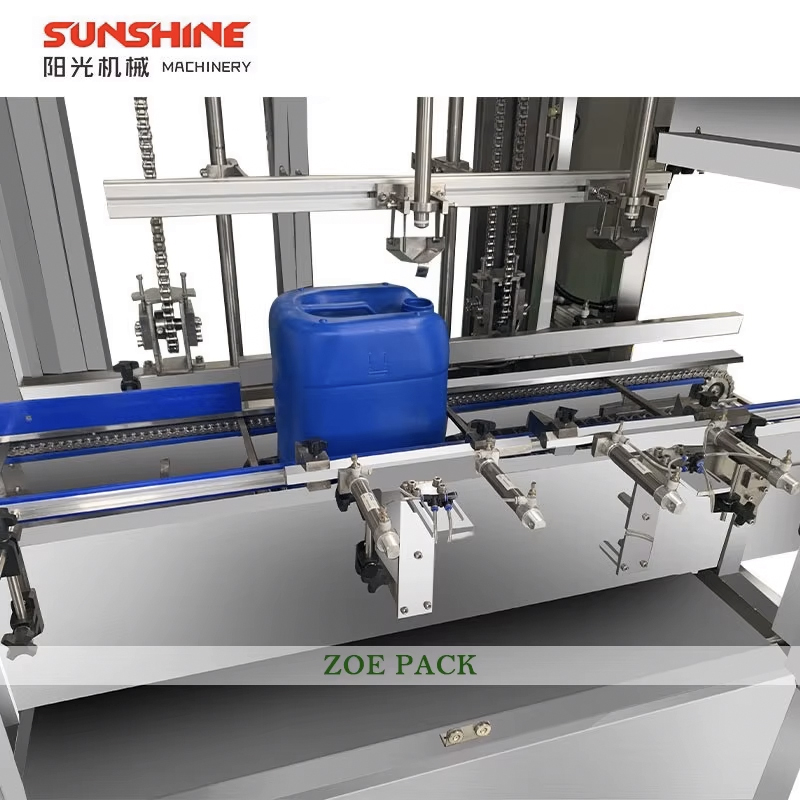

Full-automatic Single-head Capping Machine
1. This is Linear Capping machine running with conveyor automatically. 2. This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity instruction and pneumatic action. 3. Accurate measurement: adopt servo control system. 4. Bottles will be fixed by two cylinders and it can automatically arrange lid, taking lid and sending lid, it will grasp lid then capping under control of double-acting cylinder lifting stroke. 5. The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage.

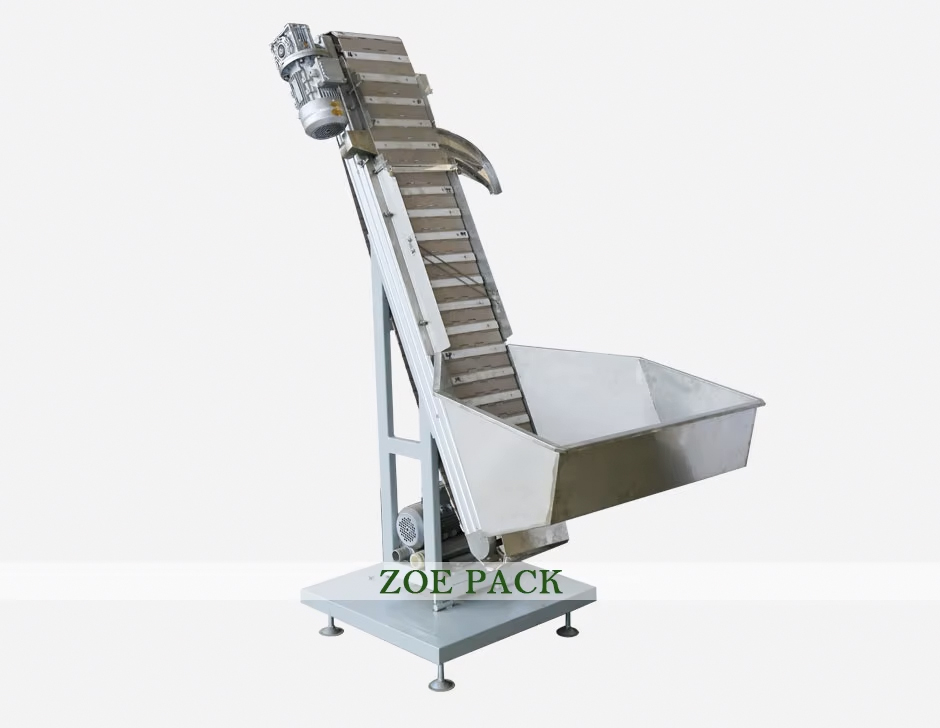

Automatic Cap Loader
The machine is specially used in lifting lid to the lid-revolver for lid-revolving, is an auxiliary equipment of the lid-revolver. If making a few modifying, may be used in lifting and conveying of other hard objects, realizing one-machine multistage.
Exhibition and Certificate
FAQ
|
ZOEPACK
Introducing the High Speed Automatic Engine Motor Oil Bottle Filling and Packing Machine. This powerful and efficient machine is designed to handle your car lubricant oil packing needs with ease. It can fill bottles up to 1L, 3L, and 5L in size.
Featuring technology is innovative state-of-the-art machinery, this machine is by using the ability of filling up to 2500 bottles each hour. This operation is high-speed enhances productivity by helping you save a while cash while ensuring you meet your production goals. It is perfect to be used in large-scale production facilities, warehouses, and factories.
Created with reliability and productivity in your mind. It uses materials and that can be high-quality ensure it could handle the absolute most challenging of industrial environments. Additionally, its size is compact makes easy to maneuver around, install, and keep maintaining.
Applying this machine is fairly easy. Simply load the bottles on the conveyor belt and invite the machine perform some rest. It comes with automated fluid technology is filling ensures the bottles are filled to the precise volume that you want. The device also contains sensors that detect bottle positioning and fill volumes. Additionally, it could also be effortlessly programmed to fill bottles with various volumes.
At ZOEPACK, we have been invested in quality that gives that meet your requirements. This is exactly why every part of the machine is created using the quality materials which are highest and under strict quality control standards. This means that the tall Speed automated Engine Motor Oil Bottle Filling and Packing Machine is accurate, reliable, and efficient.
Features advanced security precautions to guard your workers in terms of security. It comes down with an stop is automatic when the equipment detects any abnormalities or missing bottles. The device also contains a security address that keeps employees protected while in operation.
Get in touch with us today to order and experience the benefits of this High Speed Automatic Engine Motor Oil Bottle Filling and Packing Machine from ZOEPACK.
