ZOEPACK has introduced the Whole Line A to Z Complete Project Water Treatment Bottling Blowing Liquid Filling Capping Machine. This product  higher level a solution  total water therapy, bottle blowing, fluid stuffing, and capping. This product has a simple yet effective, dependable, and economical solution for bottling and packaging water featuring its revolutionary, fully-integrated design.

The Whole Line A to Z Complete Project Water Treatment Bottling Blowing Liquid Filling Capping Machine carries a range features making it very efficient and user-friendly. The apparatus comes with a water  top-quality system that effortlessly eliminates all impurities and contaminants through the water, making sure the ultimate item is pure and safe for usage. The container ability  blowing of device can be remarkable, also making it possible for high-speed creation of containers being of constant quality.

The liquid stuffing and capping the different areas of the apparatus may also be state-of-the-art, delivering an easy and gratification  accurate. The machine’s system  filling developed to manage many fluids, providing adjustable rates and accuracy filling to make certain that each container is filled to the desired degree aided by the right degree of fluid. The capping system is similarly efficient, capping the containers seamlessly and reliably having a taut and seal  protected.

The Whole Line A to Z Complete Project Water Treatment Bottling Blowing Liquid Filling Capping Machine normally created to be an task  easy run and keep maintaining. It has screen  intuitive permits operators to quickly and simply set up and run these devices, while its modular design permits access  comfortable upkeep and cleansing. Also, the machine’s lightweight construction  yet sturdy it well suited for found in a variety of settings it is both portable and sturdy, making.

Company Profile

Zoe Pack(suzhou) CO.,Ltd.

We are a professional food and beverage machinery manufacture. ZOE PACK has its own special advantages in the research, design and manufacture and offers technical support to customers. We provide perfect after-sales service.

Our Beverage Machinery includes carbonated soft drink production lines; none-areated beverage bottled filling production lines and juice / tea beverage / wine bottled / barreled filling production lines. You are welcome to cooperate with us.

This series of bottle water production lines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with optional capacity from is 2000BPH based on 200ml to 2000ml.

Technical Parameters

Complete Line

From the beginning of Water treatment system to the end of bottle packing. One-stop integrated operation reduce the water wastage, shorten the operation time, increase more economy benefit. With less material and workers’ touch time, sanitary conditions will get better. This series of bottled water production lines are mainly used for the non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with capacity 2000-3000BPH based on 200ml to 2000ml. This small and start up water prduction line is composed with blowing machine, water filling machine, water purification station, labeling machine and packing machine, all the machines you ever need for starting your new water business.

Click here to send us messages >> Send Inquiry...

Machine Detail

Applications

Production Line Details

Water Treatment System

The raw water is pumped into the raw water tank through a water pump, and the large particles and impurities in the water are filtered out through preliminary filtration (silica sand filter, activated carbon filter and precision filter) , and then use the RO system or Hollow system to remove microorganisms in the water. Finally, The UV sterilizer will sterilize the water and store it in a pure water tank.

Bottle Blowing Machine

Making empty bottles by blowing PET preforms, it can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc., volume from 100 ml to 2000 ml. All customized and designed especially for your target market.

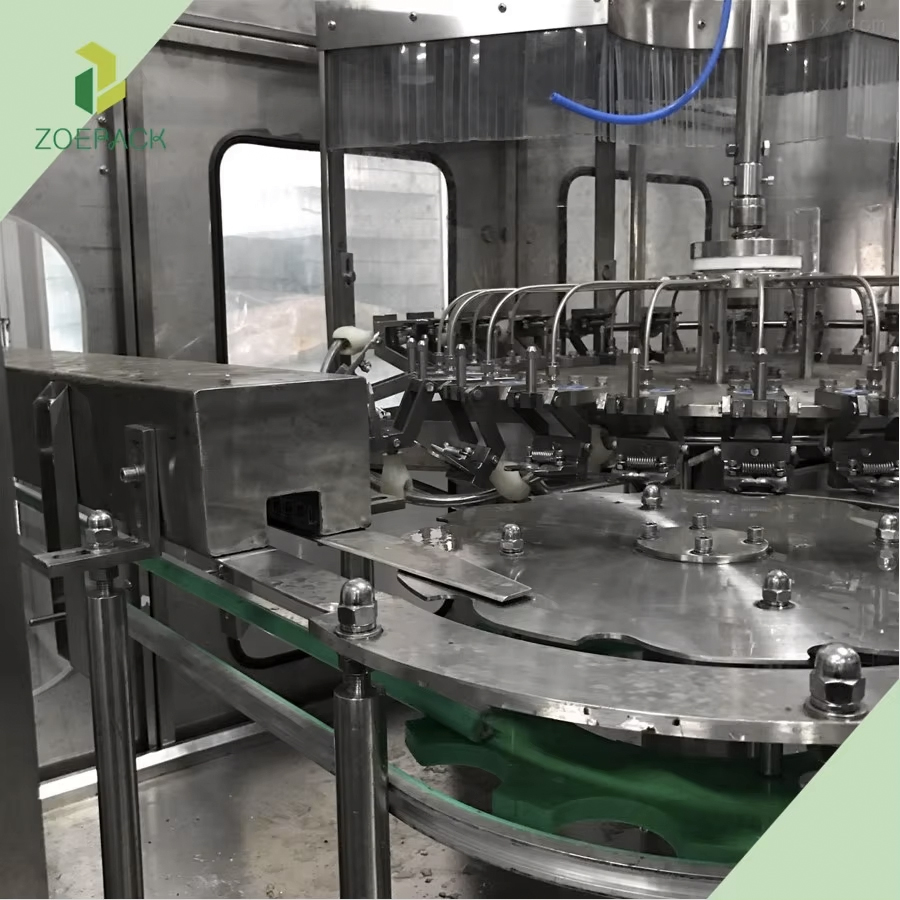

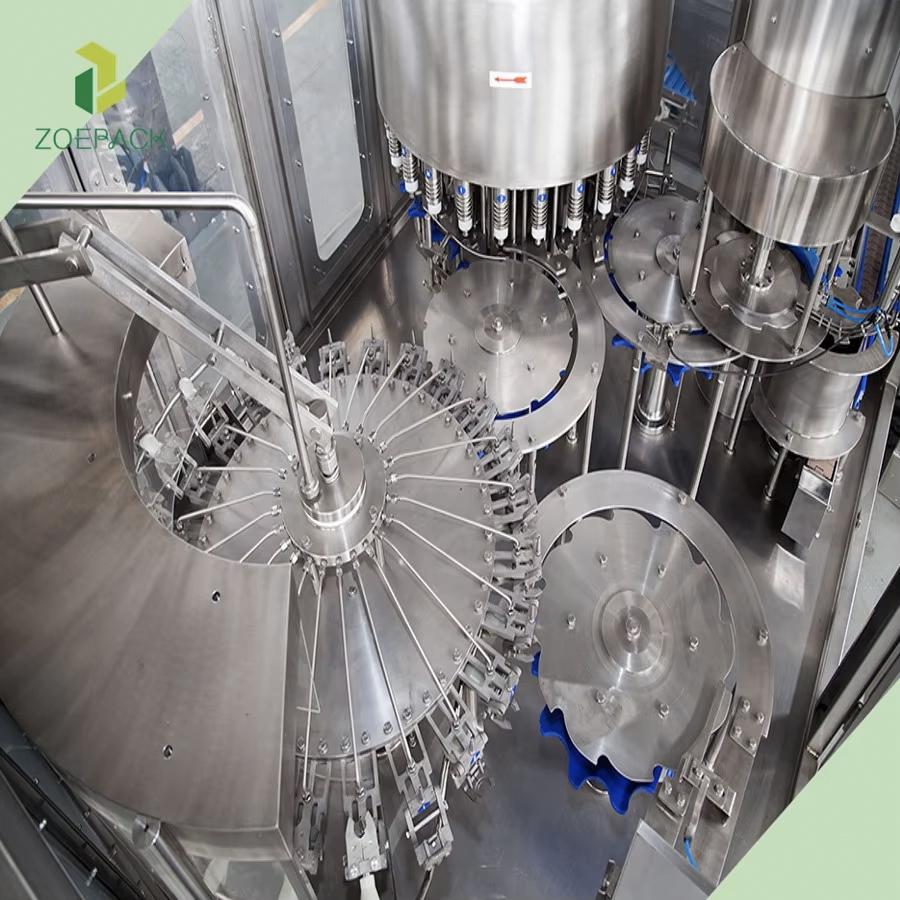

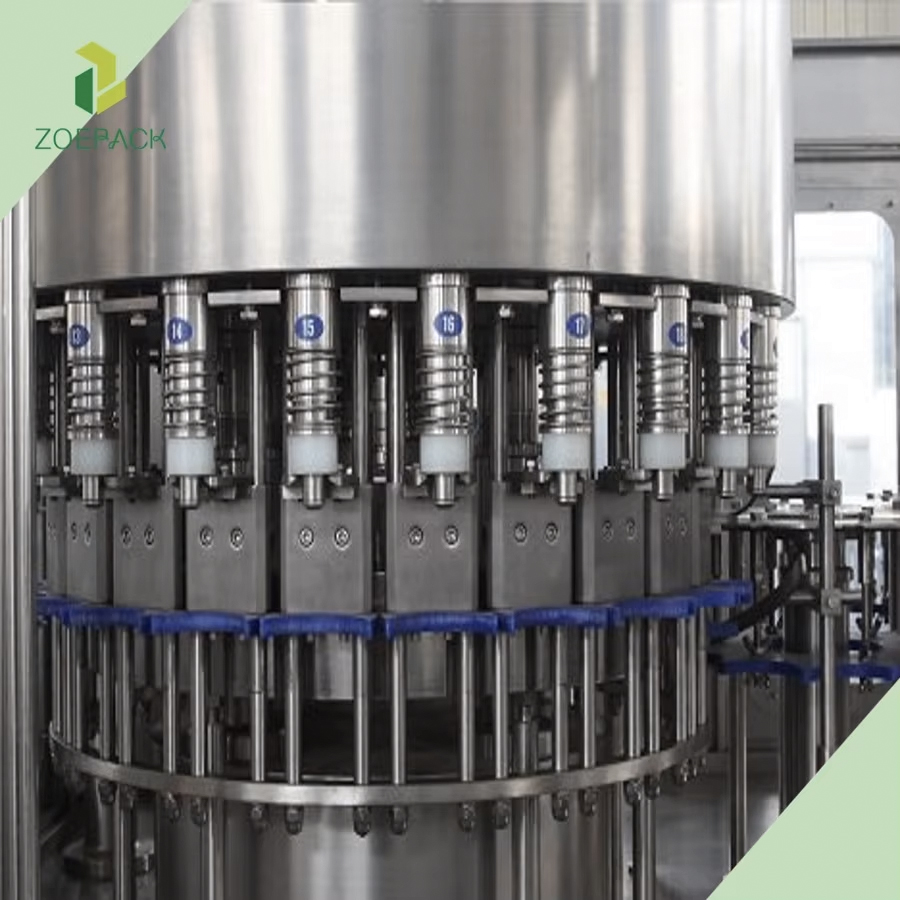

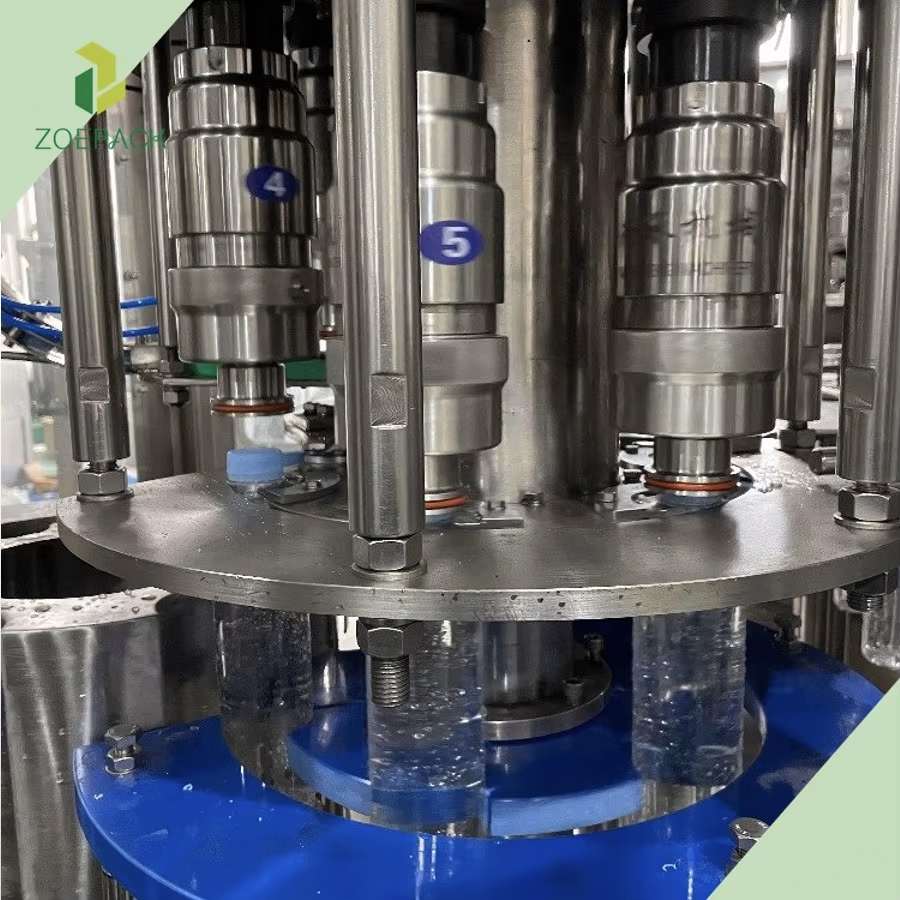

Water Filling Machine

Water filling machine is a fully automatic 3 in 1 machine integrates Rinsing-filling-capping process, latest technology brings the quite high efficiency, Whole Material in SS304 maintains high-grade quality; Upgraded system with easier operation; Suitable for the filling production from 100ml to 2000ml bottles, capacity in small quantity and large quantity can be optional as customer characteristics.

Advanced touch screen and PLC control system makes man-machine communication true. Use guiding roulette instead of simple rotary table to roll out the finished bottles, ensuring the stability and preventing the bottles from falling down.

Labeling Machine

Adopt different customer’s requirement, with different types of labeling machine, ensure the precision of labeling method and placement. Advanced technology for the operation system manufactured by worldwide famous supplier to make sure the delicate operation.

Description:

1. sticker labeling machine

2. shrink sleeve labeling machine

3. OPP labeling machine

Packing Machine

Proximity switch control film length. Touch screen, PLC system greatly increase facility movement reliability. Frequency converter speed adjust,two segment convey device. Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture. Group finished bottle water by film, like: 24=4*6 ,12=3*4 6=2*3. Case packing machine is also available.

Air Conveyor

Air conveyor is a bridge between blowing machine and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. The bottle is transferred to 3 in 1 machine through wind.

Flat Conveyor

The structure of the conveyor is designed by modular. The alternativeness of the parts are flexible, the structure is intensity, little noise and it is convenient to fix and maintenance it. It can be grouped according to the different capacity and bottle shape flexibly.
