Automatic Shrink Sleeve Labeling Machine /
Automatic Double Head Shrink Sleeve Labeling Machine
● Single Head and Double Heads Shrink Sleeve Labeling Machine
● Automatic Shrink Sleeve Labeling Machine For 5 Gallon Bottle Cap
● Vacuum-grip cylinder and cutting unit adopt special materials which are wearproof and heat protection.
Machine Advantages
1.Automatic Shrink Sleeve Labeling Machine
2.Automatic Double Head Shrink Sleeve Labeling Machine
Features:
1. According to the characteristics of the trapping label machine,we make improvement from the aspects of mechanical structure, circuit design,and intellectual control to improve the production efficiency. It can satisfy the demands of various beverage manu-facturers as reduce the production cost for the clients and improve the production rate.Because of the design of the equal velocity ratioJt completely realizes the goals of accurate label, smooth label operation and swift label cutting.
2. This machine uses large quantities of aluminum and high strength, the corrosin-resistant stainless steel, so that the overall structure of the machine more durable and it’s performance is more modular, user-friendly design makes the adjustments more easily and change style much simpler. Using the man - machine interface In the control ststem, which is easy to learn and under-stand.
3. One machine for two purposes, reducing one sleeve labeling machine, saving costs; reducing the number of conveying lines Length or avoid secondary handling, improve production efficiency and equipment area; reduce Reduce process bumps, etc., and improve product quality.

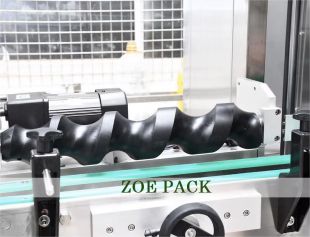

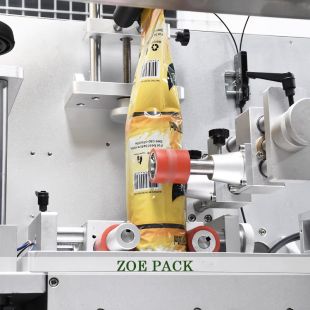

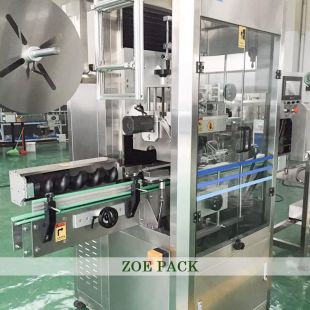

Machine Detail
Product Parameters
Automatic Shrink Sleeve Labeling Machine | ||||
ZP-150 | ZP-250 | ZP-300 | ZP-400 | |
Input Power | 2.5 KW | 3.0 KW | 4.0 KW | 4.0 KW |
Input Voliage | ∮3380/220 VAC | ∮3380/220 VAC | ∮3380/220 VAC | ∮3380/220 VAC |
Production Etticiency | 150 bottles / min | 250 bottles / min | 300 bottles / min | 400 bottles / min |
Size of Host Machine | 2100L*850W*2000H | 2100L*1100W*2000H | 2600L*1100W*2200H | 2600L*1100W*2200H |
Bottle diameter | 28 mm~120 mm | 28 mm~120 mm | 28 mm~120 mm | 28 mm~120 mm |
Length of Label | 30 mm~250 mm | 30 mm~250 mm | 30 mm~250 mm | 30 mm~250 mm |
Thickness of Label | 0.03 mm—0.13 mm | 0.03 mm—0.13 mm | 0.03 mm—0.13 mm | 0.03 mm—0.13 mm |
Paper tube diameter | 5”—10(Free adjustment) | 5”—10(Free adjustment) | 5”—10(Free adjustment) | 5”—10(Free adjustment) |
Automatic Double Heads Shrink Sleeve Labeling Machine | |
Input Power | 6KW |
Input Voltage | ∮3380 / 220 VAC |
Production Etticiency | 2*150 bottles / min |
Size of Host Machine | 3200Lx 1200Wx 2070H |
Bottle Diameter | 28 mm ~ 125 mm |
Length of Label | 30 mm ~250 mm |
Thickness of Label | 0.03 mm — 0.13 mm |
Paper Tube Diameter | 5” — 10(Free adjustment) |
Applications
Related Products
Company Profile
ZOE PACK
ZOE PACK
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, PET blow molding machine,blow molding machine, injection molding machine, injection blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services!
ZOE PACK will be your reliable friend in China, and we will always do our best to give you max support!
FAQ |
|
ZOEPACK
ZOEPACK is proud to present the Full Automatic High Accuracy Bottle Labeling Sleeving Wrapping Packing Machine for Sale. This top-of-the-line equipment is designed to meet the needs of businesses in the packaging industry.
The ZOEPACK labeling machine is a piece is high-tech of the is designed to efficiently label various types of bottles including, round, square, oval, and others. The machine is equipped with a labeling is unique that ensures high precision and prevents errors that result from handbook labeling.
Fully automatic and operated with minimal intervention is individual. The machine has a conveyor is high-speed carries bottles to be labeled, sleeved, or wrapped. The procedure is fast, effective, and guarantees quality is consistent.
With all the ZOEPACK labeling machine, businesses can easily apply labels being various products at various phases for the packaging process. The machine can be programmed to utilize different forms of labels such as front, back, and sides regarding the bottle.
Operates at a rate is high processing as much as 400 bottles per minute. The machine can be prepared with automatic detection that helps to effectively avoid labeling errors, while also preventing waste of materials.
Easy to operate, because of its user-friendly interface. Its touchscreen makes it simple to manage all settings, making sure the labeling procedure is seamless and smooth.
Simple to maintain. It is made with durable materials to withstand use is heavy-duty and cleaning is effortless since the machine is straightforward to disassemble and reassemble.
Offers advantages that are numerous companies in the packaging industry. Its high accuracy, efficiency, speed, and ease of use make it a choice is great companies that value quality and productivity. The machine is also built to last, ensuring it will be an asset to the ongoing company for a long time to come.
If you're looking for reliable, high-quality labeling equipment, the ZOEPACK Full Automatic High Accuracy Bottle Labeling Sleeving Wrapping Packing Machine for Sale is an excellent investment. Don't miss the opportunity to take your business to the next level. Buy yours today.
